Top » Piese de schimb » PIESE METABO » 0920055400 10

DUST ECTRACTION DEVICE F. MULTI 180 A - 0920055400 10 - -
[0920055400 10]
DUST ECTRACTION DEVICE F. MULTI 180 A - 0920055400 10 - -
Click pentru a mari
Imagini suplimentare
DUST ECTRACTION DEVICE F. MULTI 180 A - 0920055400 10 - -
Click pentru a mari

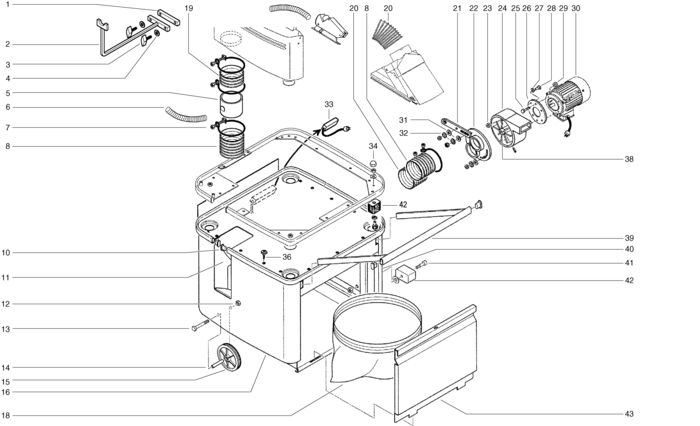

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GLIDE RAIL ET (81382669025) 7157 RON
2 1 1 HOSE SUPPORT ET (81382669033) 73930 RON
3 1 2 THUMB SCREW RED M 8X18 (86150421509) 105 RON
4 1 16 WASHER 8X16X1,5 ET (81388666770) 105 RON
5 1 1 ADAPTOR ET (81388669043) 2848 RON
6 1 2 SPIRAL HOSE D=32/ L=2500 ET (87854669057) 33553 RON
7 1 5 CLAMPING RING ET (86415666894) 10288 RON
8 1 1 7854666902 - Indisponibil
10 1 4 FENCE EXTRUSION END CAP ET (81381667126) 446 RON
11 1 1 1382666921 - Indisponibil
12 1 8 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
13 1 2 WHEEL BOLT ET (81385666930) 105 RON
14 1 1 WHEEL HUB ET (81385666949) 15993 RON
15 1 2 WHEEL RD 150 ET (87270666951) 10288 RON
16 1 1 SIDE PANEL LINKS /ET (81382666964) 68673 RON
18 1 1 DUST COLLECTION BAG ET (84820666980) 59166 RON
19 1 1 7854669065 - Indisponibil
20 1 1 7854667151 - Indisponibil
21 1 1 HANDLE ET (81385667015) 2848 RON
22 1 1 MOTOR MOUNT ET (81382667022) 34448 RON
23 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
24 1 1 FAN ET (88041667037) 49212 RON
25 1 4 Hex head screw (86103001178) Indisponibil Indisponibil
26 1 1 SEAT MOTOR ET (81385667058) 39481 RON
27 1 3 WASHER 6X14X1.2 ET (81388667067) 105 RON
28 1 22 HEXAGON HEAD SCREW M 8X12 ET (86103667044) 105 RON
29 1 4 HEXAGON NUT (86200002235) Indisponibil Indisponibil
30 1 1 ELECTRIC MOTOR 0.5CV M230V 3000T B5 ET (88012667079) 197187 RON
31 1 3 PLASTIC WASHER 6X18X2 ET (81381667002) 105 RON
32 1 3 WASHER 6,3X18X1,2 KONISCH /ET (81388666990) 105 RON
33 1 1 SOCKET STRIP 3-FACH /ET (81388667083) 2848 RON
34 1 2 CAP ET (81388667091) 781 RON
36 1 13 6172667137 - Indisponibil
38 1 1 FLYWHEEL ET (81381667142) 54357 RON
39 1 1 HANDLE ET (81382667162) 68673 RON
40 1 1 1382667170 - Indisponibil
41 1 4 HEXAGON SOCKET HEAD CAP SCREW M 8X30 ROH (86121000871) 446 RON
42 1 8 SUPPORT ET (81388667113) 7157 RON
43 1 1 DOOR VORNE /ET (81382667197) 46975 RON
