Top » Piese de schimb » PIESE METABO » 00317000

DSE 280 Intec - 00317000 - EU 230V
[00317000]
DSE 280 Intec - 00317000 - EU 230V
Click pentru a mari
Imagini suplimentare
DSE 280 Intec - 00317000 - EU 230V
Click pentru a mari

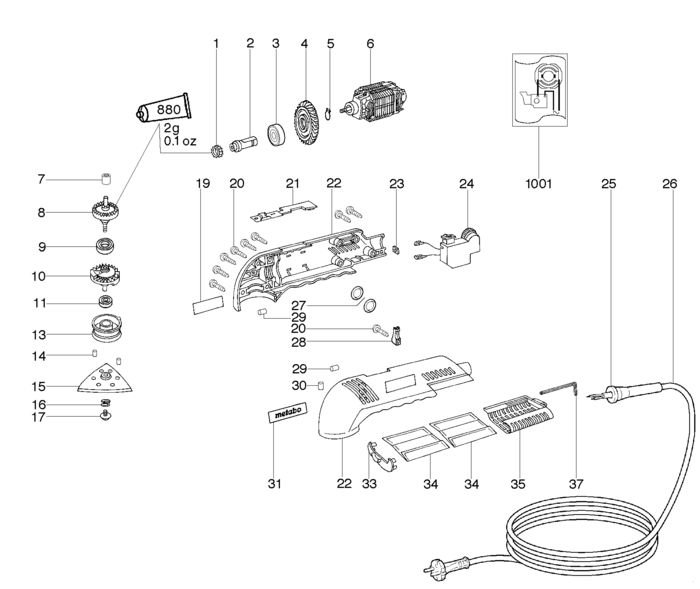

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 pinion (340003270) 446 RON
2 1 1 Shaft (341055850) 7157 RON
3 1 1 Ball bearing, 10x26x8 (143112150) 5926 RON
4 1 1 Fan (330000830) 1564 RON
5 1 1 Retaining ring (141180040) 446 RON
6 1 1 Motor 230V compl. (317002480) Indisponibil Indisponibil
7 1 1 Needle bearing (341002610) 5479 RON
8 1 1 Coated shaft (341055740) 5926 RON
9 1 1 Ball bearing, 12x28x8 (143114670) 2459 RON
10 1 1 Fan (330001530) 5479 RON
11 1 1 Ball bearing,10x24x7 (143114660) 7157 RON
13 1 1 Support ring compl. (316029150) 11519 RON
14 1 2 Cylindrical pin (141163800) 446 RON
15 1 1 Sanding base plate cpl. (339160550) Indisponibil Indisponibil
16 1 1 Pressure spring (342002760) 446 RON
17 1 1 Screw (341702680) 446 RON
19 1 1 Rating plate (338047600) 446 RON
20 1 9 Self-tap. fill. h. screw (141116020) 781 RON
21 1 1 Switch slide (343373450) 781 RON
22 1 1 Housing with cover (343374480) 955 RON
23 1 1 Square nut (141131370) 446 RON
24 1 1 Electronic unit 230V/60Hz (343079720) 11519 RON
25 1 1 Cable sleeve (344101140) 105 RON
26 1 1 Cable with plug (344485880) 5479 RON
27 1 2 O-ring (143192430) Indisponibil Indisponibil
28 1 1 Cable clip (343362490) 781 RON
29 1 2 Rubber plug (344091420) 446 RON
30 1 1 Rubber plug (344092220) 446 RON
31 1 1 M-Label,08 52x22 (338122160) 446 RON
33 1 1 casket cover (343374740) 105 RON
34 1 2 Filter (344101170) 781 RON
35 1 1 dust extraction kit (343374730) 190 RON
37 1 1 Hexagonal key (344161530) 781 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
1001 1 1 338501100 - Indisponibil
