Top » Piese de schimb » PIESE METABO » 00745000

DS 45 Diamond drill stand - 00745000 - -
[00745000]

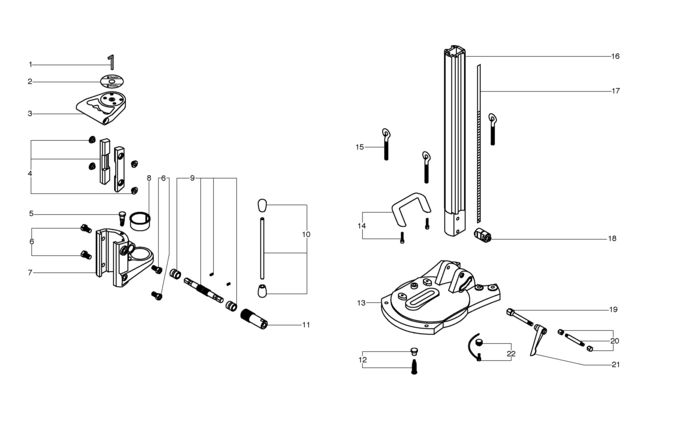

DS 45 Diamond drill stand - 00745000 - -
Click pentru a mari
Imagini suplimentare
DS 45 Diamond drill stand - 00745000 - -
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Hexagonal key (344161510) 781 RON
2 1 1 Indication label (338113980) 446 RON
3 1 1 Handle (316028960) 21361 RON
4 1 1 Guide strip cpl. (316028970) 78180 RON
5 1 1 Locking bolt (341055670) 2848 RON
6 1 1 Adjustment set f.guide rai (341702920) 2459 RON
7 1 1 Feed cpl. (316028980) 442359 RON
8 1 1 Reducing ring (341055680) 41718 RON
9 1 1 Intermediate gear cpl. (316028990) 220451 RON
10 1 1 Handle compl. (316029000) 49212 RON
11 1 1 Handle (316029050) 46975 RON
12 1 1 Ventilation valve (316029010) 26730 RON
13 1 1 Base plate (315414920) 442359 RON
14 1 1 Bowhandle compl. (316029020) 39481 RON
15 1 3 Ring screw M 10 (341702930) 7157 RON
16 1 1 Profile bar (341514670) 295725 RON
17 1 1 Scale (338114080) 15993 RON
18 1 1 Depth stop (316029030) 49212 RON
19 1 1 Set screw (341702940) 19236 RON
20 1 1 Spindle cpl. (316029040) 10288 RON
21 1 1 Clamping lever (341111960) 8275 RON
22 1 1 Hole centre indicator (338114090) 30980 RON
