Top » Piese de schimb » PIESE METABO » 0230025500 10

ClassicAir 255 - 0230025500 10 - EU 230V
[0230025500 10]
ClassicAir 255 - 0230025500 10 - EU 230V
Click pentru a mari
Imagini suplimentare
ClassicAir 255 - 0230025500 10 - EU 230V
Click pentru a mari
ClassicAir 255 - 0230025500 10 - EU 230V
Click pentru a mari
ClassicAir 255 - 0230025500 10 - EU 230V
Click pentru a mari

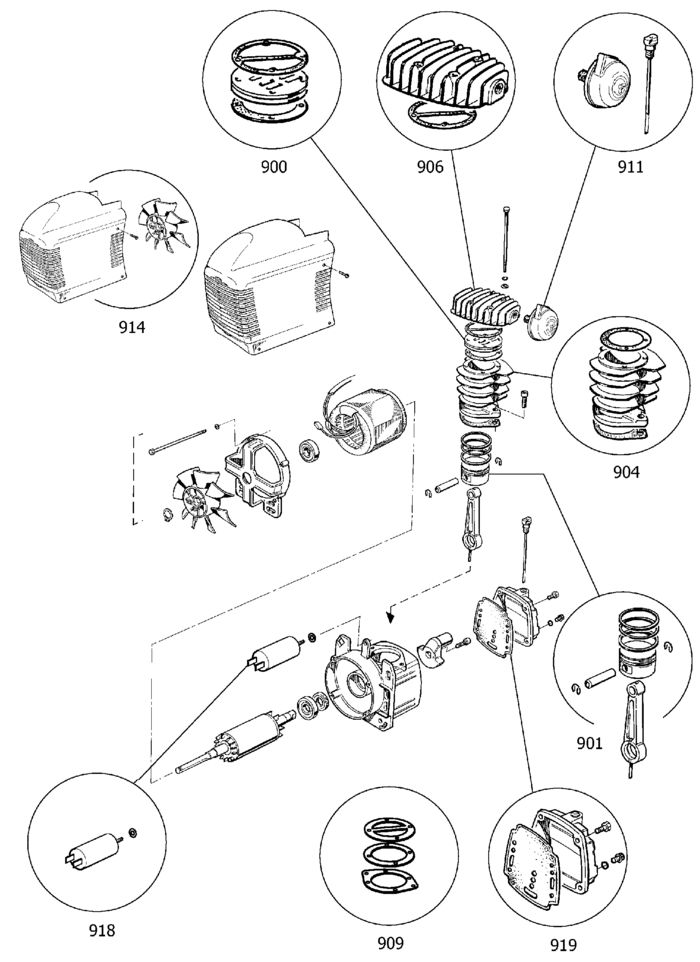

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 HEXAGON HEAD SCREW M 6X50 VERZ. (86102032428) 446 RON
2 1 4 Washer Washer cod vechi 86300016365 (141151940) 446 RON
3 1 1 CYLINDER HEAD ClassicAir 255 (81319738092) 955 RON
4 1 1 ELBOW TAP CONNECTOR 3/8"X10 MM ET (87872628406) 7157 RON
5 1 1 GASKET KIT ClassicAir 255 (81319738106) 3689 RON
6 1 1 1319738114 - Indisponibil
7 1 5 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
10 1 1 7825738120 - Indisponibil
12 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
13 1 1 AUTOM. PRESSURE CONTROL SWITCH 6-8 BAR 2 (88101149774) 2848 RON
14 1 1 SAFETY VALVE 1/4"A/8 BAR ET (87833662605) 7157 RON
15 1 1 PRESSURE REGULATOR CLASSIC 250 (87822704519) 8275 RON
16 1 1 7802009083 - Indisponibil
20 1 1 VALVE PLATE SET ClassicAir 255 (81319738130) 488 RON
21 1 1 PRESSURE LINE ClassicAir 255 (81319738149) Indisponibil Indisponibil
22 1 1 PISTON ASSEMBLY ClassicAir 255 (81319738157) 13756 RON
23 1 1 CAPACITOR 30uF/450V KABEL SEITL.280 LANG (88050700004) 21361 RON
25 1 1 Pressure relief pipe ClassicAir 255 (81319738165) Indisponibil Indisponibil
26 1 1 CHECK VALVE ClassicAir 255 (87831738175) 11519 RON
27 1 1 Set of wheels (81001741450) 10288 RON
28 1 1 7830731762 - Indisponibil
29 1 1 Cylinder ClassicAir 255 (81319738190) 11519 RON
30 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
32 1 2 6109079322 - Indisponibil
33 1 1 RUBBER FOOT CLASSIC 251 (87057738213) 446 RON
34 1 1 COVER, COMPRESSOR PUMP ClassicAir 255 (81311738220) 10288 RON
35 1 1 COVER CRANKCASE ClassicAir 255 (81319738238) 8275 RON
36 1 1 Gasket (344099080) 2124 RON
37 1 1 FAN WING CLASSIC 251 (81319738246) 3018 RON
900 1 1 Valve compl. (81319741468) Indisponibil Indisponibil
901 1 1 PISTON ASSEMBLY ClassicAir 255 (81319738157) 13756 RON
904 1 1 GASKET KIT ET (81319741476) Indisponibil Indisponibil
906 1 1 CYLINDER HEAD (81319741484) Indisponibil Indisponibil
909 1 1 Sealing set (81319741492) 4249 RON
911 1 1 AIR FILTER with DIP STICK (81001741426) 2124 RON
914 1 1 Covering hood-fan (81001741434) 10288 RON
918 1 1 CAPACITOR 30uF/450V KABEL SEITL.280 LANG (88050700004) 21361 RON
919 1 1 Cover (81001741442) 13756 RON
