Classic 251 - 0230025070 10 - EU 230V
[0230025070 10]
Classic 251 - 0230025070 10 - EU 230V
Click pentru a mari
Imagini suplimentare
Classic 251 - 0230025070 10 - EU 230V
Click pentru a mari

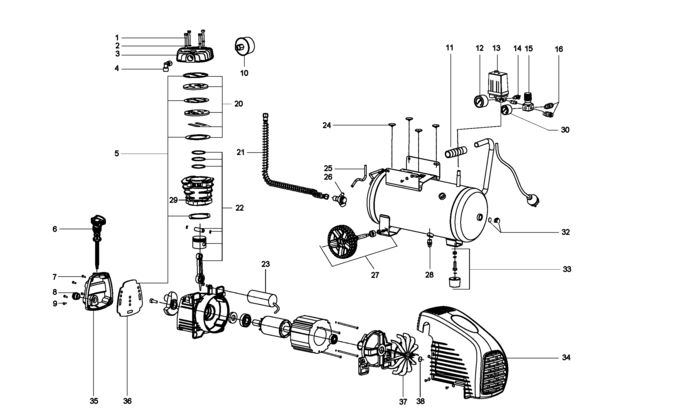

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 6121112556 - Indisponibil
2 1 4 Washer Washer cod vechi 86300016365 (141151940) 446 RON
3 1 1 CYLINDER HEAD CLASSIC 251 (81313731657) Indisponibil Indisponibil
4 1 1 ELBOW TAP CONNECTOR 2X3/8"AG CLASSIC 251 (87872731649) 2459 RON
5 1 1 GASKET KIT CLASSIC 251 (81319731667) Indisponibil Indisponibil
6 1 1 OIL FILLER PLUG CLASSIC 251 (81313731690) Indisponibil Indisponibil
7 1 4 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
8 1 1 OIL SIGHT GLASS CLASSIC 251 (81319731705) Indisponibil Indisponibil
9 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
10 1 1 AIR FILTER CLASSIC 251 (87825731738) Indisponibil Indisponibil
11 1 1 HANDLE BAR SLEEVE CLASSIC 250 (87008704303) 1340 RON
12 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
13 1 1 AUTOM. PRESSURE CONTROL SWITCH CLASSIC (88101704506) Indisponibil Indisponibil
14 1 1 SAFETY VALVE 1/4"A/8 BAR ET (87833662605) 7157 RON
15 1 1 PRESSURE REGULATOR CLASSIC 250 (87822704519) 8275 RON
16 1 2 7802009083 - Indisponibil
20 1 1 VALVE PLATE SET CLASSIC 251 (81319731675) 955 RON
21 1 1 PRESSURE LINE CLASSIC 251 (81319731748) Indisponibil Indisponibil
22 1 1 PISTON ASSEMBLY CLASSIC 251 (81319731632) 7157 RON
23 1 1 CAPACITOR 35?F 450V 45X102 FLACHSTECKER/ (88050731813) 8275 RON
24 1 4 1319731802 - Indisponibil
25 1 1 Pressure relief pipe Classic 251 (81319731780) Indisponibil Indisponibil
26 1 1 CHECK VALVE CLASSIC 250 (87831704424) 488 RON
27 1 2 WHEEL ASSEMBLY CLASSIC 251 (81001731757) 955 RON
28 1 1 7830731762 - Indisponibil
30 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
32 1 1 THREADED PLUG R 1/2" VERZ. (86109731828) 1564 RON
33 1 1 RUBBER FOOT CLASSIC 251 (87057731774) 105 RON
34 1 1 COVER, COMPRESSOR PUMP CLASSIC 251 (81311731722) 5926 RON
35 1 1 COVER CRANKCASE CLASSIC 250 (81310704322) 5926 RON
36 1 1 GASKET CLASSIC 250 (81319704317) 1564 RON
37 1 1 FAN WING CLASSIC 251 (81319731713) 105 RON
38 1 1 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
