Top » Piese de schimb » PIESE METABO » 0230025061 10

CLASSIC 250 - 0230025061 10 - EU 230V
[0230025061 10]
CLASSIC 250 - 0230025061 10 - EU 230V
Click pentru a mari
Imagini suplimentare
CLASSIC 250 - 0230025061 10 - EU 230V
Click pentru a mari
CLASSIC 250 - 0230025061 10 - EU 230V
Click pentru a mari

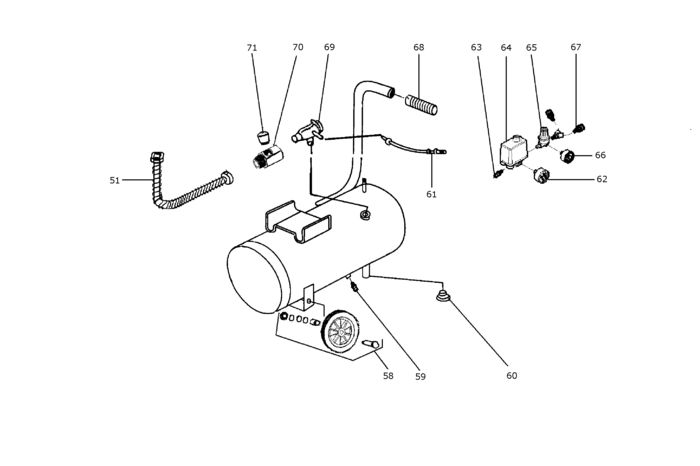

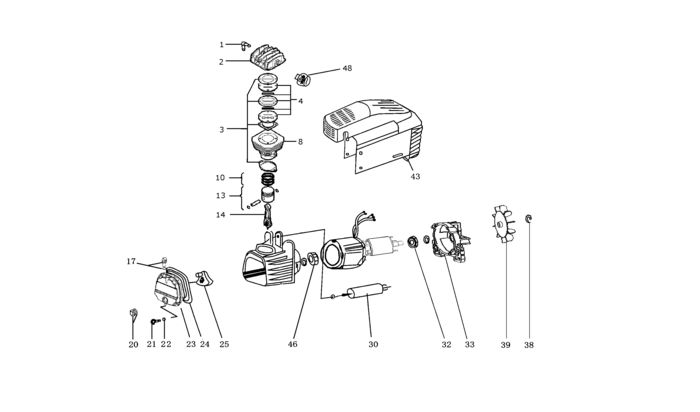

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ELBOW TAP CONNECTOR 2X3/8"AG CLASSIC 250 (87872704226) 2124 RON
2 1 1 CYLINDER HEAD CLASSIC 250 (81313704234) Indisponibil Indisponibil
3 1 1 GASKET KIT CLASSIC 250 (81319704376) Indisponibil Indisponibil
4 1 1 VALVE PLATE SET CLASSIC 250 (81319704244) 7157 RON
8 1 1 CYLINDER CLASSIC 250 (81319704325) 955 RON
10 1 1 PISTON RING SET CLASSIC 250 (81319704368) 10288 RON
13 1 1 PISTON ASSEMBLY CLASSIC 250 (81319704350) 7157 RON
14 1 1 CONNECTING ROD CLASSIC 250 (81319704341) 4249 RON
17 1 1 OIL FILLER PLUG CLASSIC 250 (81313704331) Indisponibil Indisponibil
20 1 1 OIL SIGHT GLASS CLASSIC 250 (81319704384) 3689 RON
21 1 1 HEX. HEAD THREAD ROLLING SCREW M 6X10 (86143704392) 669 RON
22 1 1 O-RING 5,23X2,62 70 SHORE (87632149640) 446 RON
23 1 1 COVER CRANKCASE CLASSIC 250 (81310704322) 5926 RON
24 1 1 GASKET CLASSIC 250 (81319704317) 1564 RON
25 1 1 CRANKSHAFT CLASSIC 250 (81319704406) 5926 RON
30 1 1 CAPACITOR 35?F 450V 45X102 FLACHSTECKER/ (88050704263) 11519 RON
32 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
33 1 1 BEARING PLATE CLASSIC 250 (81310704284) 7157 RON
38 1 1 RETAINING RING FOR SHAFTS (86400009935) 446 RON
39 1 1 FAN WING CLASSIC 250 (81319704295) 3689 RON
43 1 1 1311704270 - Indisponibil
46 1 1 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
48 1 1 AIR FILTER M16X1,5 ET (87825720205) 2459 RON
51 1 1 PRESSURE LINE CLASSIC 250 (81319704490) Indisponibil Indisponibil
58 1 2 WHEEL ASSEMBLY CLASSIC 250 (81001704440) 8275 RON
59 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
60 1 1 RUBBER FOOT CLASSIC 250 (87057704459) 781 RON
61 1 1 RELIEF tubeASSIC 250 (81319704430) 2459 RON
62 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
63 1 1 SAFETY VALVE 1/4"A/8 BAR ET (87833662605) 7157 RON
64 1 1 AUTOM. PRESSURE CONTROL SWITCH CLASSIC (88101704506) Indisponibil Indisponibil
65 1 1 PRESSURE REGULATOR CLASSIC 250 (87822704519) 8275 RON
66 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
67 1 2 7802009083 - Indisponibil
68 1 1 HANDLE BAR SLEEVE CLASSIC 250 (87008704303) 1340 RON
69 1 1 CHECK VALVE CLASSIC 250 (87831704424) 488 RON
70 1 1 BUSHING CLASSIC 250 (81319704414) 2459 RON
71 1 1 DRAINING VALVE NA 2,2 BAR / 1/4"A ET (81319651361) 955 RON
