Top » Piese de schimb » PIESE METABO » 02252000

BST 12 Plus - 02252000 - -
[02252000]
BST 12 Plus - 02252000 - -
Click pentru a mari
Imagini suplimentare
BST 12 Plus - 02252000 - -
Click pentru a mari

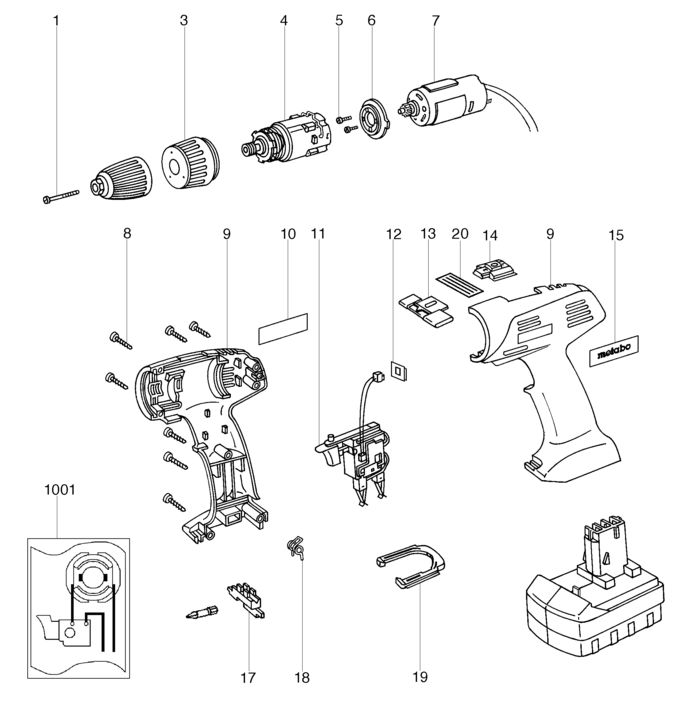

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cheese-head screw (341701940) 781 RON
3 1 1 Sleeve (343375370) 3689 RON
4 1 1 Gearbox complete (316029840) 26730 RON
5 1 2 Fillister head screw (141122220) Indisponibil Indisponibil
6 1 1 Flange (343375390) 1340 RON
7 1 1 Motor 9.6/12V/TOP (317002560) 21361 RON
8 1 7 Self-tap. fill. h. screw (141113180) 446 RON
9 1 1 Housing with cover (343374380) 5926 RON
10 1 1 338039990 - Indisponibil
11 1 1 Electronic switch (343406890) 26730 RON
12 1 1 Switch slide Impuls (343374930) 781 RON
13 1 1 Switch slide R+L/M (343374920) 446 RON
14 1 1 H/L switch (343374890) 781 RON
15 1 1 338115530 - Indisponibil
17 1 1 Bit Holder 12 V (343374350) 446 RON
18 1 1 Spring clip (342021670) 446 RON
19 1 1 Locking slide (343374940) 446 RON
20 1 1 399999990 - Indisponibil
1001 1 1 338502030 - Indisponibil
