BMS-315 - 0103051000 10 - EU 230V
[0103051000 10]
BMS-315 - 0103051000 10 - EU 230V
Click pentru a mari
Imagini suplimentare
BMS-315 - 0103051000 10 - EU 230V
Click pentru a mari
BMS-315 - 0103051000 10 - EU 230V
Click pentru a mari
BMS-315 - 0103051000 10 - EU 230V
Click pentru a mari
BMS-315 - 0103051000 10 - EU 230V
Click pentru a mari
BMS-315 - 0103051000 10 - EU 230V
Click pentru a mari

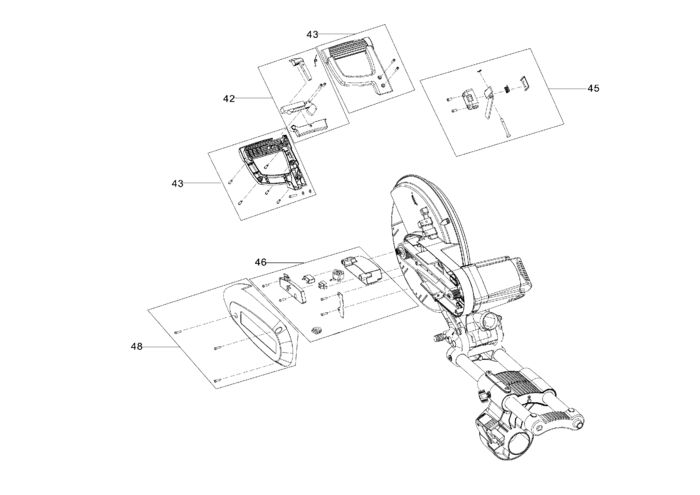

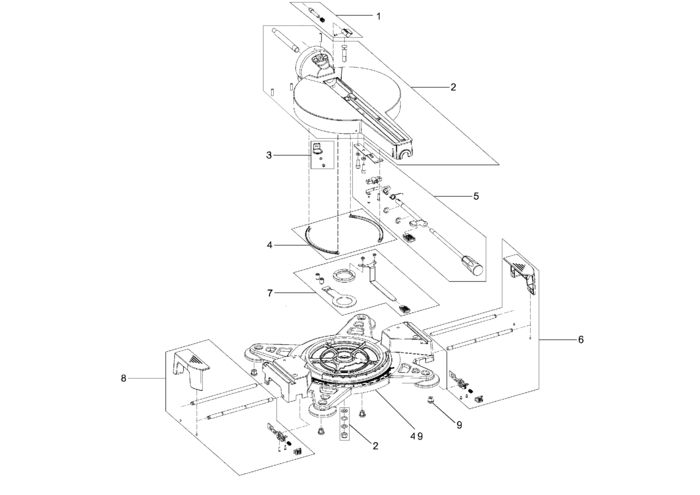

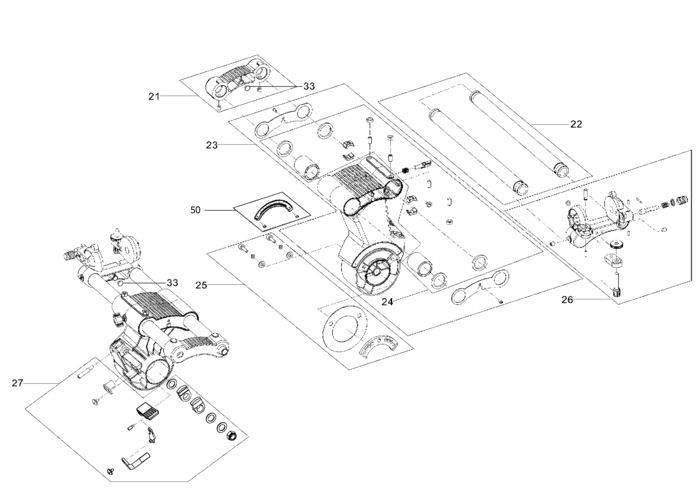

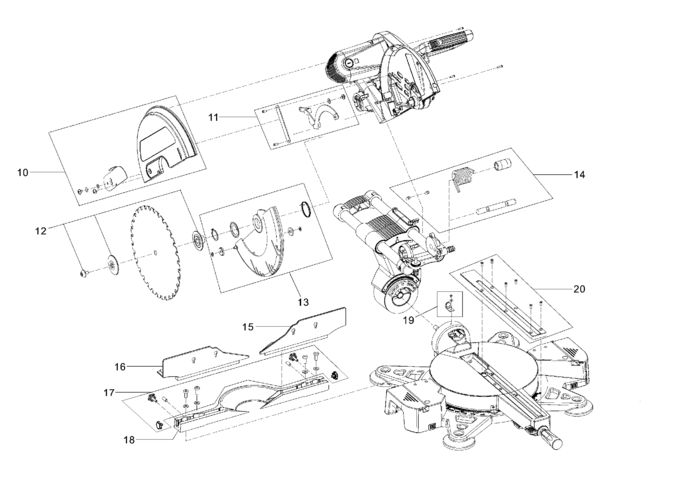

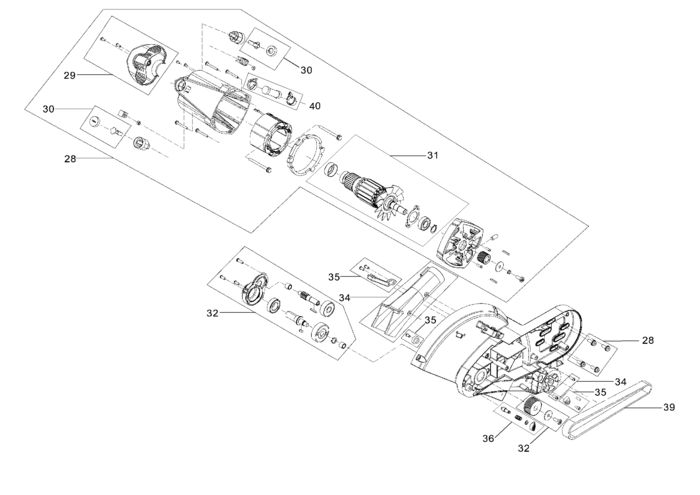

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSPORT PROTECTION KGS 305 (81010712064) 3689 RON
2 1 1 TURNTABLE KGS 305 (81010712382) 9821 RON
3 1 1 POINTER KGS 305 (81010712129) 1340 RON
4 1 1 GLIDE SEGMENT KGS 305 (81010712161) 1340 RON
5 1 1 Turntable for KGS 305 (81010712145) 18341 RON
6 1 1 TABLE SIDE EXTENSION KGS 305 (81010712390) 26730 RON
7 1 1 GUIDE PLATE KGS 305 (81010712374) 18341 RON
8 1 1 TABLE SIDE EXTENSION KGS 305 (81010712404) 26730 RON
9 1 1 RUBBER FOOT SET KGS 305 (81010712153) 2459 RON
10 1 1 SAW BLADE GUARD (81010730836) 26730 RON
11 1 1 SWIVEL LEVER ASSEMBLY KGS 305 (81010712072) 10288 RON
12 1 1 SEAT+BLADE COLLAR, OUTER KGS 305 (81010712927) 18341 RON
13 1 1 RETRACTABLE BLADE GUARD KGS 305 (81010712099) Indisponibil Indisponibil
14 1 1 Spring with guidance (81010712056) 11519 RON
15 1 1 AUXILIARY FENCE KGS 305 (81380712420) Indisponibil Indisponibil
16 1 1 AUXILIARY FENCE KGS 305 (81380712438) Indisponibil Indisponibil
17 1 1 HARDWARE BAG KGS 305 (81010712366) 11519 RON
18 1 1 FENCE KGS 305 (81380712411) Indisponibil Indisponibil
19 1 1 POINTER KGS 305 (81010712048) 1340 RON
20 1 1 KERF PLATE KGS 305 (81010712110) 488 RON
21 1 1 Stabilisator KGS 305 (81010712315) 11519 RON
22 1 1 FEED ROD KGS 305 (81010712137) 59166 RON
23 1 1 Pivot compl.,KGS305 (81010712323) 78180 RON
24 1 1 REPAIR KIT KGS 305 (81010712455) 59166 RON
25 1 1 SHIM PLATE KGS 305 (81010712307) 955 RON
26 1 1 SWIVEL CASTING KGS 305 (81010712331) 39481 RON
27 1 1 Rastereinheit f.Kippsegment KGS 305 (81010712340) 19236 RON
28 1 1 MOTOR, CROSSCUT AND MITRE SAW KGS 305 (81010712935) Indisponibil Indisponibil
29 1 1 END CAP KGS 305 (81010712200) 2459 RON
30 1 1 CARBON BRUSH SET KGS 305 (81010712943) 5479 RON
31 1 1 ARMATURE ASSEMBLY KGS 305 (81010712951) Indisponibil Indisponibil
32 1 1 TRANSMISSION ASSEMBLY KGS 305 (81010712226) 54357 RON
33 1 2 PLUG-IN BUFFER KGS 305 (82391729746) 781 RON
34 1 1 DUST EXTRACTION PORT KGS 305 (81010712102) 190 RON
35 1 1 FENCE KGS 305 (81010712293) 5926 RON
36 1 1 LOCK KGS 305 (81010712218) 190 RON
39 1 1 POLY-RIB BELT 8 PJ 584 KGS 305 (87233712447) 19236 RON
40 1 1 Shunt Resistor 8 Ohm (88051732155) Indisponibil Indisponibil
42 1 1 SWITCH ASSEMBLY KGS 305 (81010712870) Indisponibil Indisponibil
43 1 1 HANDLE, PVC HOUSIN KGS 305 (81010712277) 10288 RON
45 1 1 81010712889 - Indisponibil
46 1 1 TERMINAL BOX ASSEMBLY KGS 305 (81010712897) 7157 RON
48 1 1 BELT GUARD BERNER BMS-315 (81010730844) 8275 RON
49 1 1 TABLE KGS 305 (81010712960) 9821 RON
50 1 1 BEVEL TILT SCAL KGS 305 (81010712986) 190 RON
