Top » Piese de schimb » PIESE METABO » 0100704536 10

BKS 450 - 0100704536 10 - EU 230V
[0100704536 10]
BKS 450 - 0100704536 10 - EU 230V
Click pentru a mari
Imagini suplimentare
BKS 450 - 0100704536 10 - EU 230V
Click pentru a mari
BKS 450 - 0100704536 10 - EU 230V
Click pentru a mari

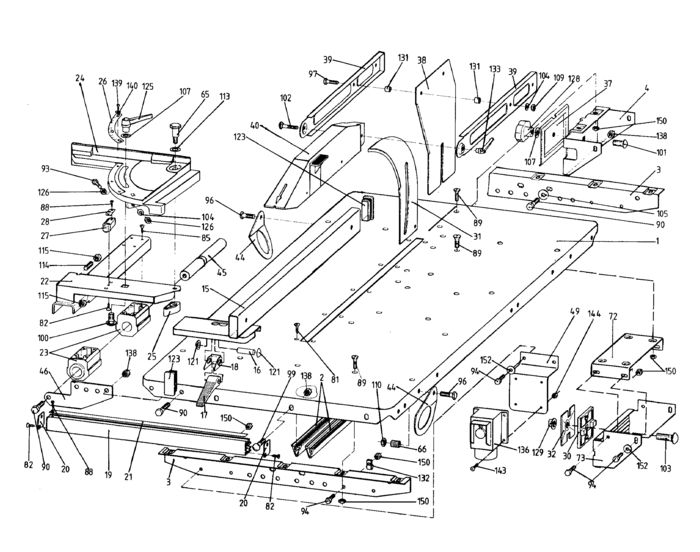

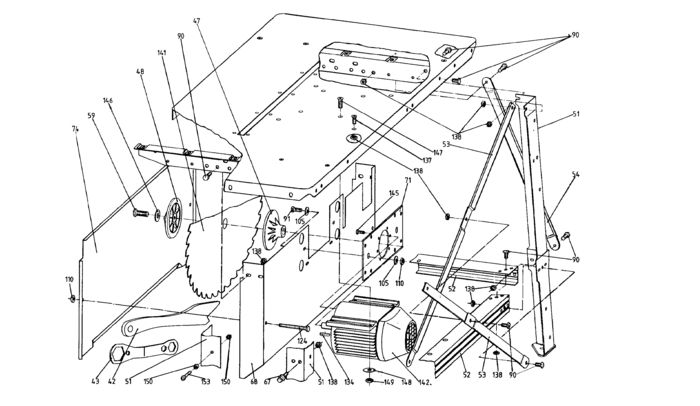

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE PANEL BL 2,50X736X1071 (81382206343) 54357 RON
2 1 1 TABLE INSERT EXTRUSION 549,5 +-0,3 MM (81393205551) 7157 RON
3 1 1 CROSSHEAD BL 2,50X86X656 (81392205035) 488 RON
4 1 1 GUARD SUPPORT BRACKET BL 2,99X145X354 (81392205108) 5479 RON
15 1 1 1010208978 - Indisponibil
16 1 1 BOLT WITH HEAD (86632111175) 105 RON
17 1 1 Cam lock lever (82390205484) 3018 RON
18 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
19 1 1 1383206460 - Indisponibil
20 1 1 END PIECE BL 2X26X35 (81492091649) 446 RON
21 1 1 SCALE 0,20X13X537,5 0-45,05 CM (81142206451) 955 RON
22 1 1 MITRE FENCE (82010200922) 18341 RON
23 1 1 GUIDE PIECE (82391205283) 3018 RON
24 1 1 MITRE FENCE (81390205739) 2848 RON
25 1 1 1010017587 - Indisponibil
26 1 1 ANGLE SCALE (81110205593) 2459 RON
27 1 1 CARRIER, VERNIER SCALE (82391205615) 781 RON
28 1 1 VERNIER SCALE 1,00 (81110205607) 105 RON
30 1 1 riving knife carrier (82380075353) 4249 RON
31 1 1 SPLITTING BLADE BL 3,00X234X329 BKH/BKS4 (81482706092) 26730 RON
32 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
37 1 1 GUARD SUPPORT PLATE BL 2,99X102X125 (81392205116) 1340 RON
38 1 1 GUARD SUPPORT BL 3,00X177X315 BKH/BKS450 (81482706106) 34448 RON
39 1 1 SAW BLADE GUARD CARRIER BL 1,50X70X388 (81382641082) 4249 RON
40 1 1 SAW BLADE GUARD (82391206204) 10288 RON
42 1 1 Push stick (81394201630) 3018 RON
43 1 1 Key (81492102829) 3689 RON
44 1 1 LIFTING EYE 2,99X90X112 (81492103230) 1564 RON
45 1 1 CROSSCUT FENCE GUIDE ROD RD25X986 (81495102528) 19236 RON
46 1 1 BRACKET BL 4X70X182 (81492105054) 2459 RON
47 1 1 BLADE COLLAR, INNER RD 30 (81380214560) 13756 RON
48 1 1 BLADE COLLAR, OUTER (81380214578) 18341 RON
49 1 1 SWITCH PLATE BL 1,5X108X216 Z-F?RMIG (81332036064) 2124 RON
51 1 1 LEG (81010641019) 13756 RON
52 1 1 STANCHION BL 1,5X118X703 (81382641031) 7157 RON
53 1 1 DIAGONAL STRUT BL 2,5X30X830 (81382641058) 8275 RON
54 1 1 DIAGONAL STRUT BL 2,5X30X591 (81382641074) 3689 RON
59 1 1 HEXAGON HEAD SCREW M 12X1,5 LINKS X40 VE (86103085479) 2124 RON
65 1 1 HEXAGON FIT BOLT SW 19X42 (81395205400) 2124 RON
66 1 1 PRESSURE SPRING (87051207240) 446 RON
67 1 1 SCREW 6KT 17X30 M 8 (81395205516) 1340 RON
68 1 1 CHIP CASE BL 1,5X812X410 (81382206319) 15993 RON
71 1 1 MOTOR SEAT BL 2,99X134X230 (81482206294) 3689 RON
72 1 1 BRACKET BL 2,5X195X100 (81382206289) 1564 RON
73 1 1 RIVING KNIFE CARRIER BL 2,99X410X114 (81382206270) 8275 RON
74 1 1 CHIP CASE COVER BL 1,5X684X391 (81382206327) 15993 RON
81 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
82 1 1 86172015687 - Indisponibil
85 1 1 86172001848 - Indisponibil
88 1 1 Fillister head screw (86172091014) 446 RON
89 1 1 CROSS RECESSED FLAT HEAD SCREW M 6X16 VE (86131047582) 446 RON
90 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
93 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
94 1 1 Hex head screw (86103015675) 446 RON
96 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
97 1 1 HEXAGON HEAD SCREW M 6X35 VERZ. (86102082751) 446 RON
99 1 1 CUP SQUARE NECK SCREW M 8X25 VERZ. (86110000640) 446 RON
100 1 1 CUP SQUARE NECK SCREW M 10X30 VERZ. (86110091603) 446 RON
101 1 1 CUP SQUARE NECK SCREW M 10X25 VERZ. (86110085743) 446 RON
102 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
103 1 1 CUP SQUARE NECK SCREW M 12X40 VERZ. (86110149253) 781 RON
104 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
105 1 1 Washer (86305002486) 446 RON
107 1 1 MEDIUM WASHER (86300016349) 446 RON
109 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
110 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
113 1 1 WAVE SPRING WASHER B 12 VERZ. (86302085941) 446 RON
114 1 1 Grub screw (86161029309) 446 RON
115 1 1 HEXAGON THIN NUT (86205029131) 446 RON
121 1 1 STARLOCK WITH CAP RD 10 (87016107721) 446 RON
123 1 1 LAMELLAR PLUG 60X25 VL SCHWARZ (81391019971) 781 RON
125 1 1 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
126 1 1 Hex nut (86200002219) 446 RON
128 1 1 STARKNOB NUT M 10 / RD 63 VERZINKT (87000074122) 1340 RON
129 1 1 FLANGE NUT (86209002432) 105 RON
131 1 1 SPACER SLEEVE (86442059304) 446 RON
132 1 1 CABLE CLIP (88242051328) 105 RON
133 1 1 Clamping lever (87006072385) 2459 RON
134 1 1 FEATHER KEY A 8X7X35 ET (86721608849) 446 RON
136 1 1 SWITCH SSK DN UC230V M=7,8A K2000/ST6/KA (88132615358) 78180 RON
137 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
138 1 1 Flange nut (6209110995) 446 RON
139 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
140 1 1 MEDIUM WASHER (86300016330) 446 RON
141 1 1 1386120761 - Indisponibil
142 1 1 8013211320 - Indisponibil
143 1 1 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
144 1 1 HEXAGON NUT (86200002197) 446 RON
145 1 1 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
146 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
148 1 1 WASHER (86305002494) 446 RON
149 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
150 1 1 Flange nut (86209114230) 446 RON
152 1 1 Washer (86305002087) 446 RON
153 1 1 Cap screw (86127059207) 446 RON
