Top » Piese de schimb » PIESE METABO » 0104003000 12

BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
[0104003000 12]
BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
Click pentru a mari
Imagini suplimentare
BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
Click pentru a mari
BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
Click pentru a mari
BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
Click pentru a mari
BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
Click pentru a mari
BKS 400 Plus 3,10 WNB - 0104003000 12 - EU 230V
Click pentru a mari

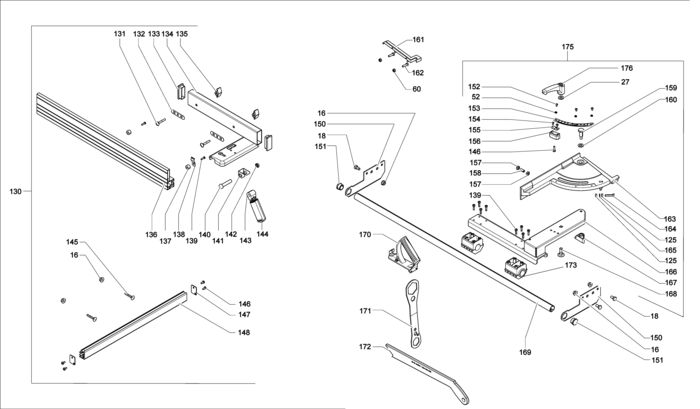

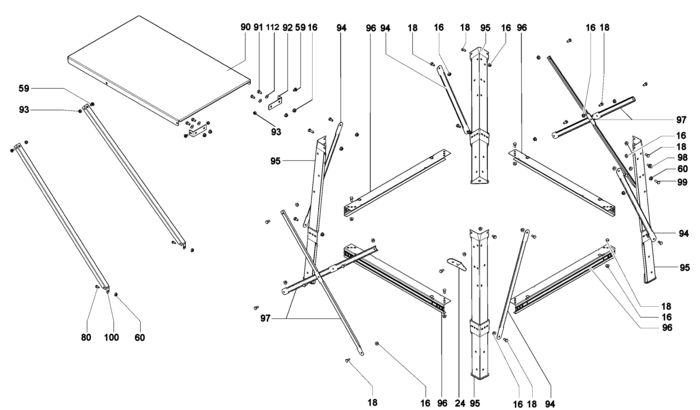

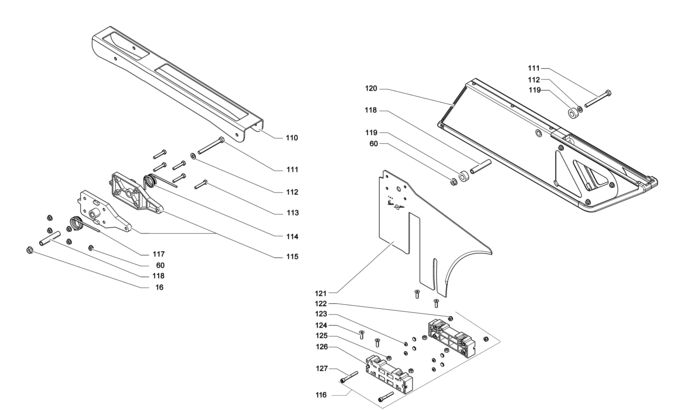

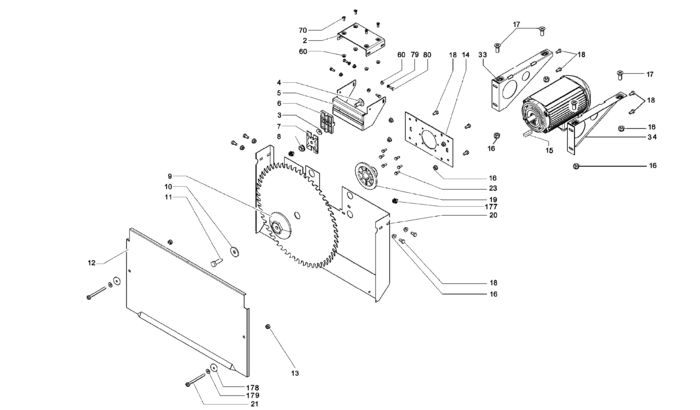

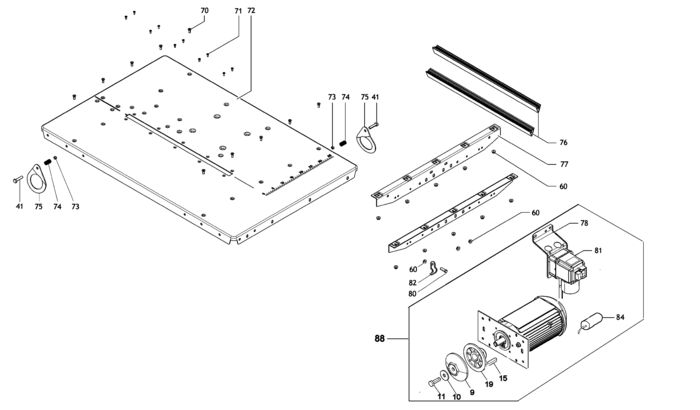

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 BRACKET BL 2,5X195X100 (81382206289) 1564 RON
3 1 1 CUP SPRING (87053063343) 446 RON
4 1 1 CUP SQUARE NECK SCREW M 12X40 VERZ. (86110149253) 781 RON
5 1 1 TABLE PANEL BL 2,50X736X1071 (81382731987) 8275 RON
6 1 1 riving knife carrier (82380075353) 4249 RON
7 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
8 1 1 FLANGE NUT (86209002432) 105 RON
9 1 1 BLADE COLLAR, OUTER RD 112 SW 46X26 (82390205247) 955 RON
10 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
11 1 1 HEXAGON HEAD SCREW M 12X1,5 LINKS X40 VE (86103085479) 2124 RON
12 1 1 CHIP CASE COVER BL 1,5X684X391 (81382206327) 15993 RON
13 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
14 1 1 MOTOR SEAT BL 2,99X134X230 (81482206294) 3689 RON
15 1 1 Parallel key (86721059322) 446 RON
16 1 53 Flange nut (6209110995) 446 RON
17 1 4 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
18 1 40 Hex head screw (86103001178) Indisponibil Indisponibil
19 1 1 FLANGE RD 20 (81390205208) 15993 RON
20 1 1 CHIP CASE BL 1,5X812X410 (81382206319) 15993 RON
21 1 2 HEXAGON HEAD SCREW M 8X90 VERZ. (86101022046) 781 RON
23 1 6 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
27 1 1 MEDIUM WASHER (86300016349) 446 RON
33 1 1 SUPPORT PLATE BL 2X321X168 VORNE (81382206300) 488 RON
34 1 1 SUPPORT PLATE BL 2X321X168 HINTEN (81382206335) 488 RON
41 1 2 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
52 1 3 MEDIUM WASHER (86300016330) 446 RON
59 1 8 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
60 1 31 Flange nut (86209114230) 446 RON
70 1 14 CROSS RECESSED FLAT HEAD SCREW M 6X16 VE (86131047582) 446 RON
71 1 10 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
72 1 1 TABLE PANEL BL 2,50X736X1071 (81382731405) 59166 RON
73 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
74 1 2 PRESSURE SPRING (87051207240) 446 RON
75 1 2 LIFTING EYE 2,99X90X112 (81492103230) 1564 RON
76 1 2 TABLE INSERT EXTRUSION 549,5 +-0,3 MM (81393205551) 7157 RON
77 1 2 CROSSHEAD BL 2,50X86X656 (81392205035) 488 RON
78 1 1 SWITCH PLATE BL 2,99X85X180 (81382214133) 7157 RON
79 1 14 Washer (86305002087) 446 RON
80 1 3 Hex head screw (86103015675) 446 RON
81 1 1 SWITCH SSK WN (88132739014) 93951 RON
82 1 1 CABLE CLIP (88242051328) 105 RON
84 1 1 CAPACITOR 35?F+50?F KABEL (88050724019) 54357 RON
88 1 1 1010675185 - Indisponibil
90 1 1 EXTENSION PLATE BL 2,00X572X832 TKHS315M (81382693309) 34448 RON
91 1 4 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
92 1 2 ANGLE BRACKET BL 2,50X30X116 (81382693856) 5479 RON
93 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
94 1 4 DIAGONAL STRUT BL 2,5X30X591 (81382641074) 3689 RON
95 1 4 Bein BKH/BKS (81010730674) 18341 RON
96 1 4 STANCHION BL 1,5X118X703 (81382641031) 7157 RON
97 1 4 DIAGONAL STRUT BL 2,5X30X830 (81382641058) 8275 RON
98 1 1 SCREW 6KT 17X30 M 8 (81395205516) 1340 RON
99 1 1 Cap screw (86127059207) 446 RON
100 1 2 SUPPORT BL 1,00X70X885 TVL-BKH/BKS (81382706559) 7157 RON
110 1 1 TABLE PANEL BL 2,50X736X1071 (81382731340) 15993 RON
111 1 2 HEXAGON HEAD SCREW M 8X80 VERZ. (86103030259) 446 RON
112 1 4 Washer (86300016322) Indisponibil Indisponibil
113 1 5 HEXAGON HEAD SCREW M 6X35 VERZ. (86103004916) 446 RON
114 1 1 LEG SPRING D=1,5 X 180 (87051731284) 3689 RON
115 1 2 Bearing block kpl. BKH/BKS-Plus (81010731972) 7157 RON
116 1 1 RIP FENCE (81010731964) 2848 RON
117 1 1 LEG SPRING D=1,5 X 180 (87051731292) 3689 RON
118 1 2 BUSHING RD 18X5 (81485731306) 190 RON
119 1 2 BUSHING RD 18X5 (81381731312) 669 RON
120 1 1 Wheel guard,kpl BKH/BKS Plus (81010731956) 59166 RON
121 1 1 SPLITTING BLADE BL 3,00X214X304 BKH/BKS4 (81482731367) 54357 RON
122 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
123 1 8 GLIDE PIECE (82391202772) 446 RON
124 1 4 SLOTTED FLAT HEAD SCREW M 6X20 VERZ. (86130019585) 446 RON
125 1 4 Hex nut (86200002219) 446 RON
126 1 2 SUPPORTBLOCK 140x30x53 (81381730669) 2848 RON
127 1 2 HEXAGON SOCKET HEAD CAP SCREW M 6X50 VER (86121097735) 446 RON
130 1 1 RIP FENCE (81010731743) 68673 RON
131 1 2 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
132 1 2 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
133 1 2 LAMELLAR PLUG 60X25 VL SCHWARZ (81391019971) 781 RON
134 1 1 Rip fence (81010731450) 26730 RON
135 1 2 WING NUT (87005658068) 781 RON
136 1 1 AUXILIARY FENCE EXTRUSION (81383730720) 21361 RON
137 1 2 SPACER SLEEVE RD 15/6X12 (86442100576) 105 RON
138 1 1 CABLE CLIP (87052078118) 446 RON
139 1 10 86172001848 - Indisponibil
140 1 1 BOLT WITH HEAD (86632111175) 105 RON
141 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
142 1 1 STARLOCK (87016050711) 446 RON
143 1 1 CAM-LOCK LEVER (81380731386) 3018 RON
144 1 1 HANDLE WITH RED INSERT (81381731843) 488 RON
145 1 4 CUP SQUARE NECK SCREW M 8X25 VERZ. (86110000640) 446 RON
146 1 4 86172015687 - Indisponibil
147 1 2 END PIECE BL 2X26X35 (81492091649) 446 RON
148 1 1 FENCE GUIDE EXTRUSION 543,5 MM (81383731590) 15993 RON
150 1 2 Halter BL 2,99x79x207 (81482730767) 8275 RON
151 1 2 Lamellenstopfen RD 25 1-3 (81381730715) 446 RON
152 1 3 Fillister head screw (86172028215) 446 RON
153 1 1 ANGLE SCALE (81110205593) 2459 RON
154 1 2 Fillister head screw (86172091014) 446 RON
155 1 1 VERNIER SCALE 1,00 (81110205607) 105 RON
156 1 1 CARRIER, VERNIER SCALE (82391205615) 781 RON
157 1 2 HEXAGON THIN NUT (86205029131) 446 RON
158 1 1 Grub screw (86161029309) 446 RON
159 1 1 HEXAGON FIT BOLT SW 19X42 (81395205400) 2124 RON
160 1 1 WAVE SPRING WASHER B 12 VERZ. (86302085941) 446 RON
161 1 1 EXTENTION MITRE FENCE (82380730793) 2848 RON
162 1 2 Hex head screw (86103001135) 446 RON
163 1 1 MITRE FENCE (81390205739) 2848 RON
164 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
165 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
166 1 1 MITRE FENCE (82010200922) 18341 RON
167 1 1 GLIDE PIEC (82391205470) 105 RON
168 1 1 CUP SQUARE NECK SCREW M 10X30 VERZ. (86110091603) 446 RON
169 1 1 Fuehrung Queranschlag RD 25x2,0x1040 (81485730741) 15993 RON
170 1 1 SLIDING HANDLE RED (81388680470) 15993 RON
171 1 2 Key (81492102829) 3689 RON
172 1 1 Push stick (81394201630) 3018 RON
173 1 2 GUIDE PIECE (82391205283) 3018 RON
175 1 1 MITRE FENC (81010014146) 49212 RON
176 1 1 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
177 1 2 CAGE NUT M 8 BLECHST?RKE 1,8-3,2 (86264139374) 781 RON
178 1 2 CUP SPRING (87053075104) 446 RON
179 1 2 Washer (86305002486) 446 RON
