Top » Piese de schimb » PIESE METABO » 0104500018 11

BKH 450/5,50 DNB - 0104500018 11 - 3 / 400V/50Hz
[0104500018 11]
BKH 450/5,50 DNB - 0104500018 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
BKH 450/5,50 DNB - 0104500018 11 - 3 / 400V/50Hz
Click pentru a mari

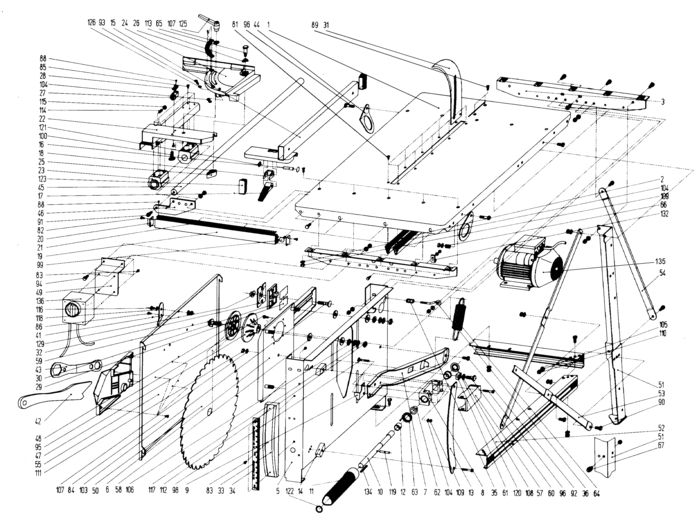

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE PANEL BL 2,50X736X1071 GR??E 1000X (81392205027) 54357 RON
2 1 1 TABLE INSERT EXTRUSION 549,5 +-0,3 MM (81393205551) 7157 RON
3 1 1 CROSSHEAD BL 2,50X86X656 (81392205035) 488 RON
5 1 1 CHIP CASE BL 2,99X585X874 (81392205043) 41718 RON
6 1 1 MOTOR SEAT (82010200850) 3698 RON
7 1 1 LEVER BL 2,99X90X663,7 (81392205086) 5926 RON
8 1 1 CLAMPING PAD (81390205755) 10288 RON
9 1 1 POINTER BL 2X53X77 (81492103558) 1340 RON
10 1 1 CLAMPING SHAFT RD 20X247 (81495102323) 13756 RON
11 1 1 TURN HANDLE RD 50X220 (82391205259) 5479 RON
12 1 1 BUSHING RD 28X17 (81495105233) 190 RON
13 1 1 ARCHED PLATE BL 4X388X40 (81492102810) 3689 RON
14 1 1 SEAT, ARCHED PLATE 22X21,5X96 (82390205263) 2459 RON
15 1 1 RIP FENCE (82010200914) 2848 RON
16 1 1 BOLT WITH HEAD (86632111175) 105 RON
17 1 1 Cam lock lever (82390205484) 3018 RON
18 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
19 1 1 FENCE GUIDE EXTRUSION 531 MM (81393205560) 15993 RON
20 1 1 END PIECE BL 2X26X35 (81492091649) 446 RON
21 1 1 SCALE 0,40X13X524 (81142205714) 4249 RON
22 1 1 MITRE FENCE (82010200922) 18341 RON
23 1 1 GUIDE PIECE (82391205283) 3018 RON
24 1 1 MITRE FENCE (81390205739) 2848 RON
25 1 1 1010017587 - Indisponibil
26 1 1 ANGLE SCALE (81110205593) 2459 RON
27 1 1 CARRIER, VERNIER SCALE (82391205615) 781 RON
28 1 1 VERNIER SCALE 1,00 (81110205607) 105 RON
29 1 1 SHIM PLATE BL 0,5X59X79 (81392205647) 781 RON
30 1 1 riving knife carrier (82380075353) 4249 RON
31 1 1 RIVING KNIFE 50X3 GESCHLOSSEN (81392206163) 18341 RON
32 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
33 1 1 SCALE ARC 35X50X318 (82391205704) 488 RON
34 1 1 SCALE, HEIGHT ADJUSTMENT 1,00X29X313 (81110205682) 3018 RON
35 1 1 CHECK NUT 6KT 13X27 / M6 (81495105225) 1340 RON
36 1 1 THREADED BOLT M 6 GESTR. L?NGE = 112 (81395205346) 105 RON
41 1 1 SAFETY LEVER BL 2,50X30X100 (81392205418) 105 RON
42 1 1 Push stick (81394201630) 3018 RON
43 1 1 Key (81492102829) 3689 RON
44 1 1 LIFTING EYE 2,99X90X112 (81492103230) 1564 RON
45 1 1 CROSSCUT FENCE GUIDE ROD RD25X986 (81495102528) 19236 RON
46 1 1 BRACKET BL 4X70X182 (81492105054) 2459 RON
47 1 1 BLADE COLLAR, INNER RD 30 (81380214560) 13756 RON
48 1 1 BLADE COLLAR, OUTER (81380214578) 18341 RON
49 1 1 SWITCH PLATE BL 2,99X85X180 (81382214133) 7157 RON
50 1 1 0910008854 - Indisponibil
51 1 1 LEG (81010641019) 13756 RON
52 1 1 STANCHION BL 1,5X118X703 (81382641031) 7157 RON
53 1 1 DIAGONAL STRUT BL 2,5X30X830 (81382641058) 8275 RON
54 1 1 DIAGONAL STRUT BL 2,5X30X591 (81382641074) 3689 RON
55 1 1 CAP BL 1,5X520,5X640 (81392205060) 18341 RON
57 1 1 CLAMPING PAD CAP (82391205380) 2124 RON
58 1 1 PLASTIC WASHER RDI 12,2X30X31 (82391205186) 446 RON
59 1 1 HEXAGON HEAD SCREW M 12X1,5 LINKS X30 VE (86103083956) 105 RON
60 1 1 COLLAR SCREW M 10 SW 19X37 (81395205176) 2124 RON
61 1 1 SQUARE SLEEVE 20/20X12 (81495105241) 1564 RON
62 1 1 BEARING BUSH RD 20/25/30X15 MIT BUND (82391203167) 446 RON
63 1 1 TORSION SPRING RDI 32 RDA 40 X4,0 (87051205361) 488 RON
64 1 1 TENSION SPRING RDA 40X190 (87051205370) 13756 RON
65 1 1 HEXAGON FIT BOLT SW 19X42 (81395205400) 2124 RON
66 1 1 PRESSURE SPRING (87051207240) 446 RON
67 1 1 SCREW 6KT 17X30 M 8 (81395205516) 1340 RON
81 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
82 1 1 86172015687 - Indisponibil
83 1 1 Fillister head screw w.fill. head screw (86186602763) 446 RON
84 1 1 Fillister head screw (86172016683) 446 RON
85 1 1 86172001848 - Indisponibil
86 1 1 86172047473 - Indisponibil
88 1 1 Fillister head screw (86172091014) 446 RON
89 1 1 CROSS RECESSED FLAT HEAD SCREW M 6X16 VE (86131047582) 446 RON
91 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
92 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
93 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
94 1 1 Hex head screw (86103015675) 446 RON
95 1 1 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
96 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
98 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
99 1 1 CUP SQUARE NECK SCREW M 8X25 VERZ. (86110000640) 446 RON
100 1 1 CUP SQUARE NECK SCREW M 10X30 VERZ. (86110091603) 446 RON
103 1 1 CUP SQUARE NECK SCREW M 12X40 VERZ. (86110149253) 781 RON
104 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
105 1 1 Washer (86300016322) Indisponibil Indisponibil
106 1 1 Washer (86300016705) Indisponibil Indisponibil
107 1 2 MEDIUM WASHER (86300016349) 446 RON
108 1 1 Washer (86300019984) 446 RON
109 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
110 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
111 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
112 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
113 1 1 WAVE SPRING WASHER B 12 VERZ. (86302085941) 446 RON
114 1 1 Grub screw (86161029309) 446 RON
115 1 1 HEXAGON THIN NUT (86205029131) 446 RON
116 1 1 6104124192 - Indisponibil
117 1 1 CUP SPRING (87053063343) 446 RON
118 1 1 Cup spring (87053016795) 446 RON
119 1 1 CLAMPING SLEEVE 6X36 (86503016379) 446 RON
120 1 1 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
121 1 1 STARLOCK (87016050711) 446 RON
122 1 1 SERRATED EDGE WASHER ZA 20 (86403107385) 446 RON
123 1 1 LAMELLAR PLUG 60X25 VL SCHWARZ (81391019971) 781 RON
125 1 1 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
126 1 1 Hex nut (86200002219) 446 RON
129 1 1 FLANGE NUT (86209002432) 105 RON
132 1 1 CABLE CLIP (88242051328) 105 RON
134 1 1 FEATHER KEY A 6X6X36 (86721019738) 446 RON
135 1 1 MOTOR, CIRCULAR SAW BENCH 5,50 DNB (80100015501) 343820 RON
136 1 1 8132719579 - Indisponibil
