Top » Piese de schimb » PIESE METABO » 00234361

BHE 20 - 00234361 - KR 220V
[00234361]
BHE 20 - 00234361 - KR 220V
Click pentru a mari
Imagini suplimentare
BHE 20 - 00234361 - KR 220V
Click pentru a mari

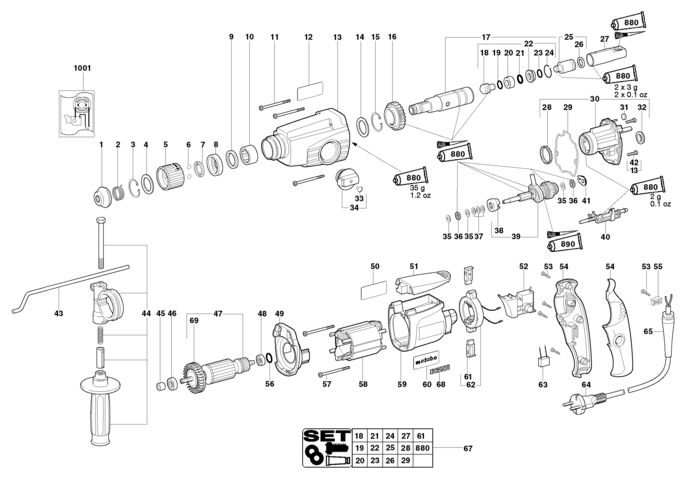

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Rubber cap (343430090) 105 RON
2 1 1 Torsion spring (342021040) 781 RON
3 1 1 Retaining ring (141155460) 446 RON
4 1 1 Washer (141155470) 446 RON
5 1 1 Adjusting ring (343374550) Indisponibil Indisponibil
6 1 2 Ball (143120320) 669 RON
7 1 1 Tension-spring ring (342001560) Indisponibil Indisponibil
8 1 1 Spacer ring (343361690) Indisponibil Indisponibil
9 1 1 Shaft sealing ring (143194910) Indisponibil Indisponibil
10 1 1 Needle sleeve (143113830) 8275 RON
11 1 3 Self-tap. fill. h. screw (141122480) 446 RON
12 1 1 Indication label (338114490) 781 RON
13 1 1 Gear housing cpl. (316031900) 26730 RON
14 1 1 Supporting disc (141153750) 781 RON
15 1 1 Circlip (141155450) 446 RON
16 1 1 Sliding sleeve (340003310) 488 RON
17 1 1 Drill driving sleeve cpl. (316032210) 30980 RON
18 1 1 Intermediate striker cpl. (316031890) 488 RON
19 1 1 O-ring (143192400) 781 RON
20 1 1 Supporting ring (341012610) 1564 RON
21 1 1 O-ring (143193910) Indisponibil Indisponibil
22 1 1 Catching sleeve cpl. (316031940) 8275 RON
23 1 1 O-ring (143193920) 2459 RON
24 1 1 Circlip (141181840) 446 RON
25 1 1 Striker cpl. (316017660) 13756 RON
26 1 1 Sealing ring (344093140) Indisponibil Indisponibil
27 1 1 Exciter sleeve (341056150) 10288 RON
28 1 1 Ball holder (320050480) Indisponibil Indisponibil
29 1 1 Seal (344095570) 781 RON
30 1 1 Gear flange cpl. (316032580) 24046 RON
31 1 1 Felt seal (344070670) 446 RON
32 1 1 Rubber buffer (344095920) 446 RON
33 1 1 Seal (343376750) 781 RON
34 1 1 Control knob cpl. (316032630) 3689 RON
35 1 3 Washer (339129610) 446 RON
36 1 2 Axial needle bearing (143114280) 2459 RON
37 1 3 Cup spring (141154920) 781 RON
38 1 1 Coupling sleeve (340003220) 3018 RON
39 1 1 Intermediate gear cpl. (316034880) 39481 RON
40 1 1 Switch element cpl.w.o. rot. Stop (316031360) 4249 RON
41 1 1 Butting sheet (339130980) 446 RON
42 1 2 Fill. head screw(DIN 7985) (141119440) 446 RON
43 1 1 Depth stop (341511630) Indisponibil Indisponibil
44 1 1 Support handle compl. (314000770) 10288 RON
45 1 1 Sealing ring (343376040) 781 RON
46 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
47 1 1 Armature cpl. 230 V (310007840) 39481 RON
48 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
49 1 1 Intermediate flange (343374260) 1340 RON
50 1 1 338042170 - Indisponibil
51 1 1 Cover w.o. electronic (343374280) 2459 RON
52 1 1 Electronic switch w/o wheel (343407200) Indisponibil Indisponibil
53 1 5 Self-tap. fill. h. screw (141117060) 781 RON
54 1 1 Pistol grip 2 part (343393010) 4249 RON
55 1 1 Cable clip (343362490) 781 RON
56 1 1 O-ring (143192430) Indisponibil Indisponibil
57 1 2 Self-tap. fill. h. screw (141116090) 446 RON
58 1 1 Field coil 230 V (311009790) 19236 RON
59 1 1 Motor housing (315012650) 5926 RON
60 1 1 338116140 - Indisponibil
61 1 1 316034550 - Indisponibil
62 1 1 316032470 - Indisponibil
63 1 1 Interference suppr. cond. (343253780) 190 RON
64 1 1 Cable with plug (344486730) 8275 RON
65 1 1 Cable sleeve (344101140) 105 RON
67 1 1 Maintenance kit (316032680) 4442 RON
68 1 1 399999990 - Indisponibil
69 1 1 Fan w. prot. Grid (316035730) 2459 RON
880 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
890 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504130 - Indisponibil
