Top » Piese de schimb » PIESE METABO » 00218000

BHA 18 - 00218000 - -
[00218000]
BHA 18 - 00218000 - -
Click pentru a mari
Imagini suplimentare
BHA 18 - 00218000 - -
Click pentru a mari

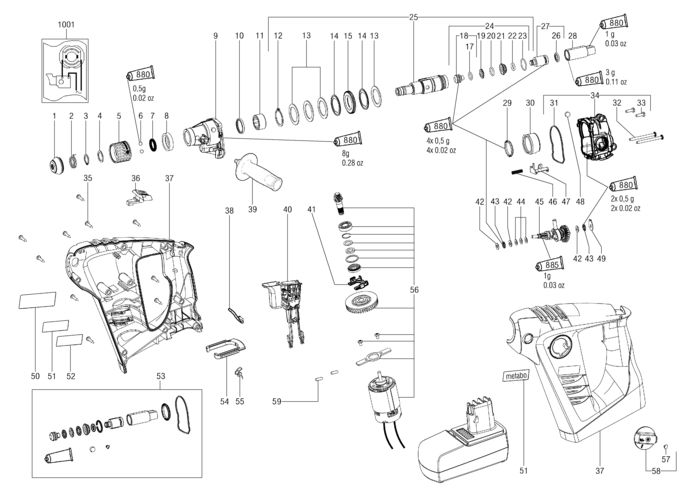

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Rubber cap (343430090) 105 RON
2 1 1 Torsion spring (342021040) 781 RON
3 1 1 Retaining ring (141155460) 446 RON
4 1 1 Washer (141155470) 446 RON
5 1 1 Adjusting ring (343374550) Indisponibil Indisponibil
6 1 2 Ball (143120320) 669 RON
7 1 1 Tension-spring ring (342001560) Indisponibil Indisponibil
8 1 1 Spacer ring (343361690) Indisponibil Indisponibil
9 1 1 Gear housing cpl. (316038920) 24046 RON
10 1 1 Seal (143194060) 781 RON
11 1 1 Needle sleeve (143113940) 488 RON
12 1 1 Retaining ring (141180170) 446 RON
13 1 4 Cup spring (342070340) 1340 RON
14 1 2 Friction washer (339004870) 781 RON
15 1 1 Spur gear (340003570) 3689 RON
17 1 1 O-ring (143192400) 781 RON
18 1 1 Piston cpl. (316020620) 8275 RON
19 1 1 Damping ring (341055960) 1564 RON
20 1 1 O-ring (143194640) 781 RON
21 1 1 Catching sleeve (341055080) 2459 RON
22 1 1 O-ring (143193920) 2459 RON
23 1 1 Circlip (141181860) 446 RON
24 1 1 Catching sleeve cpl. (316026120) 18341 RON
25 1 1 Safety clutch compl. (316041190) 54357 RON
26 1 1 Sealing ring (344093140) Indisponibil Indisponibil
27 1 1 Striker cpl. (316017660) 13756 RON
28 1 1 Exciter sleeve (341052990) 10288 RON
29 1 1 Ball holder (320050200) Indisponibil Indisponibil
30 1 1 Bearing ring (341057740) 13756 RON
31 1 1 Seal (344097140) 669 RON
32 1 2 Fillister head screw (341703910) 446 RON
33 1 2 Fill. head screw(DIN 7985) (141121640) 446 RON
34 1 1 Gear housing cpl. (316038950) 19236 RON
35 1 10 Self-tap. fill. h. screw (141113180) 446 RON
36 1 1 switch (343391560) 190 RON
37 1 1 Housing with cover (343391550) 2848 RON
38 1 1 insert eye (339132590) 105 RON
39 1 1 Anti-vibration handle,M 8 (314000970) Indisponibil Indisponibil
40 1 1 Electronic switch (343408190) 19236 RON
41 1 1 Bearing cover (339132570) 781 RON
42 1 3 Washer (339129610) 446 RON
43 1 2 Axial needle bearing (143114280) 2459 RON
44 1 3 Cup spring (141154920) 781 RON
45 1 1 Intermediate gear cpl. (316040510) 59166 RON
46 1 1 Pressure spring (342003280) 446 RON
47 1 1 Shift fork (339132560) 105 RON
48 1 1 Felt seal (344070670) 446 RON
49 1 1 Butting sheet (339130980) 446 RON
50 1 1 Rating plate (338047760) 669 RON
51 1 2 Metabo label (338120640) 446 RON
52 1 1 399999990 - Indisponibil
53 1 1 Maintenance kit (316040600) 33553 RON
54 1 1 Locking slide (343390440) 669 RON
55 1 1 Spring clip (342021670) 446 RON
56 1 1 Motor compl.,18 V (316040500) 73930 RON
57 1 1 Seal (343376750) 781 RON
58 1 1 Control knob cpl. (316040150) 4249 RON
59 1 2 Rubber plug (344092220) 446 RON
880 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
885 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504070 - Indisponibil
