Top » Piese de schimb » PIESE METABO » 33031000

Bench cut-off stand 796 - 33031000 - -
[33031000]
Bench cut-off stand 796 - 33031000 - -
Click pentru a mari
Imagini suplimentare
Bench cut-off stand 796 - 33031000 - -
Click pentru a mari

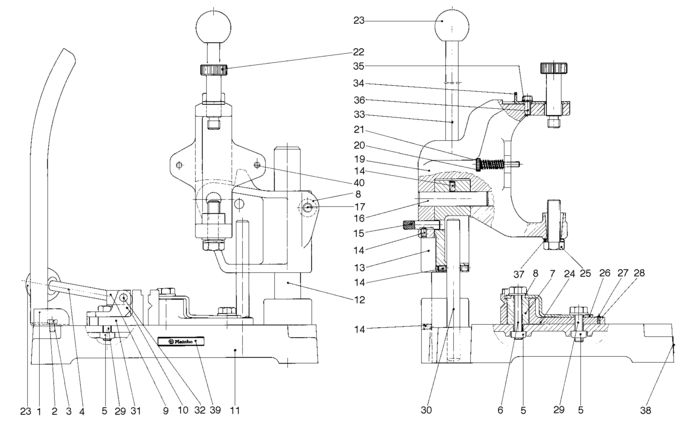

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Guard (339032430) 8275 RON
2 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
3 1 2 Hexagon head screw (141110260) 446 RON
4 1 1 341511910 - Indisponibil
5 1 1 Square nut (141130880) 781 RON
6 1 1 Hexagon head screw (141113440) 781 RON
7 1 1 Stop bushing (341043130) 8275 RON
8 1 1 Washer (141150050) 446 RON
9 1 1 Eccentric (341140580) 13756 RON
10 1 1 Clamping piece (315405940) 19236 RON
11 1 1 Table (315404830) 9821 RON
12 1 1 Column (341511570) 18341 RON
13 1 1 Bearing block (315404840) 2848 RON
14 1 2 Grub screw (141120020) 781 RON
15 1 1 Locking bolt (341042970) 5479 RON
16 1 1 Bolt (341511610) 2459 RON
17 1 1 Hexagon head screw (141113410) 781 RON
19 1 1 Holder cpl. (316014600) 49212 RON
20 1 2 Knurled screw (341700610) 4249 RON
21 1 2 Pressure spring (342000520) 781 RON
22 1 1 341042730 - Indisponibil
23 1 1 Sperical knob (143170070) 2459 RON
24 1 1 Angle stop (315404860) 21361 RON
25 1 1 Hexagon head screw (141119470) 1564 RON
26 1 1 Pointer (339032740) 488 RON
27 1 2 142360150 - Indisponibil
28 1 1 Graduation plate (338100740) 2124 RON
29 1 1 141113400 - Indisponibil
30 1 1 Guide bolt (341511590) 3689 RON
31 1 1 315405930 - Indisponibil
32 1 1 Cylindrical pin (141160560) 105 RON
33 1 1 Lever (341511580) 955 RON
34 1 1 Slide (339121620) 3689 RON
35 1 1 Spring washer (141150280) 446 RON
36 1 1 Cap screw (141113850) 781 RON
37 1 1 Washer (339003710) 105 RON
38 1 1 338100750 - Indisponibil
39 1 1 Metabo label (338103240) 781 RON
40 1 1 Knurled screw (341702870) 2124 RON
