Top » Piese de schimb » PIESE METABO » 0910013971 10

V-BELT DRIVE BW 750 - 0910013971 10 - -
[0910013971 10]
V-BELT DRIVE BW 750 - 0910013971 10 - -
Click pentru a mari
Imagini suplimentare
V-BELT DRIVE BW 750 - 0910013971 10 - -
Click pentru a mari

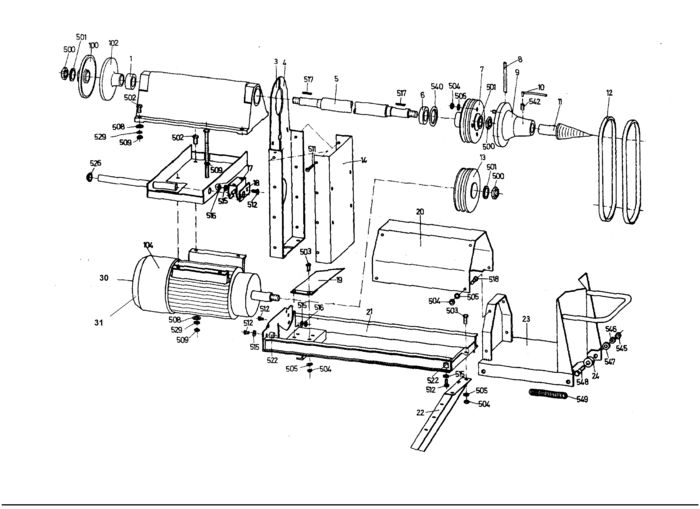

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DEEP GROOVE BALL BEARING 30X55X13 6006-2 (87100017924) 7157 RON
3 1 1 V-BELT GUARD BL 1,50X142X610 LINKS (81382148556) 13756 RON
4 1 1 V-BELT GUARD BL 1,50X142X610 RECHTS (81382409392) 11519 RON
5 1 1 BEARING SHAFT RD 40X533 (81385407790) 39481 RON
6 1 1 7100010172 - Indisponibil
7 1 1 V-BELT PULLEY SPA DW 140X2 BOHRUNG 30 NU (87240407811) 41718 RON
9 1 1 1380068768 - Indisponibil
10 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
11 1 1 1385072453 - Indisponibil
12 1 1 V-BELT 13X1030 LI ET (87230013211) 5479 RON
13 1 1 V-BELT PULLEY SPA DW 140X2 BOHRUNG 24 NU (87240077137) 34448 RON
14 1 1 1382409406 - Indisponibil
17 1 1 ANGLE BRACKET, ROCKER BEARING BL 2,99X14 (81482407486) 1564 RON
18 1 1 ROCKER RETAINER BL 2,00X33X80 (81482407753) 781 RON
19 1 1 1010011120 - Indisponibil
20 1 1 SPLITTER COVER BL 1,50X330X444 (81382409139) 15993 RON
21 1 1 1010407911 - Indisponibil
22 1 1 1382407780 - Indisponibil
23 1 1 1010409124 - Indisponibil
24 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
30 1 1 FAN WING 180X16 ET (81381663708) 955 RON
31 1 1 FAN COVER ? 192 ET (81382663710) 11519 RON
100 1 1 BLADE COLLAR, OUTER RD 140 SCHWARZ RAL 9 (81380407686) 15993 RON
102 1 1 BLADE COLLAR, INNER RD 140 (81380407678) 19236 RON
104 1 1 8013407763 - Indisponibil
500 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
501 1 1 SPRING LOCK WASHER B 20 VERZ. (86301047329) 446 RON
502 1 1 HEXAGON HEAD SCREW M 10X30 VERZ. (86103001232) 446 RON
503 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
504 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
505 1 1 Serrated lock washer (86304001745) 446 RON
508 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
509 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
511 1 1 Fillister head screw (86172016683) 446 RON
512 1 1 Hex head screw (86103001127) 446 RON
515 1 1 Serrated lock washer (86304084047) 446 RON
516 1 1 Hex nut (86200002219) 446 RON
517 1 1 FEATHER KEY A 8X5X36 (86721046182) 446 RON
518 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
522 1 1 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
526 1 1 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
529 1 1 MEDIUM WASHER (86300016349) 446 RON
540 1 1 CIRCLIP FOR BORES 62X2 (86401117367) 781 RON
542 1 1 HEX. SOCKET SET SCREW, DOG PT. M12X16 RO (86163081146) 781 RON
545 1 1 HEXAGON NUT (86200017992) 446 RON
546 1 1 Washer (86300016705) Indisponibil Indisponibil
547 1 1 SPRING LOCK WASHER B 12 VERZ. (86301000306) 446 RON
548 1 1 1385072496 - Indisponibil
549 1 1 TENSION SPRING RD 1,1X15,5X112,4 (87051072680) 190 RON
