BDE 1100 - 00806310 - CN 220V
[00806310]
BDE 1100 - 00806310 - CN 220V
Click pentru a mari
Imagini suplimentare
BDE 1100 - 00806310 - CN 220V
Click pentru a mari

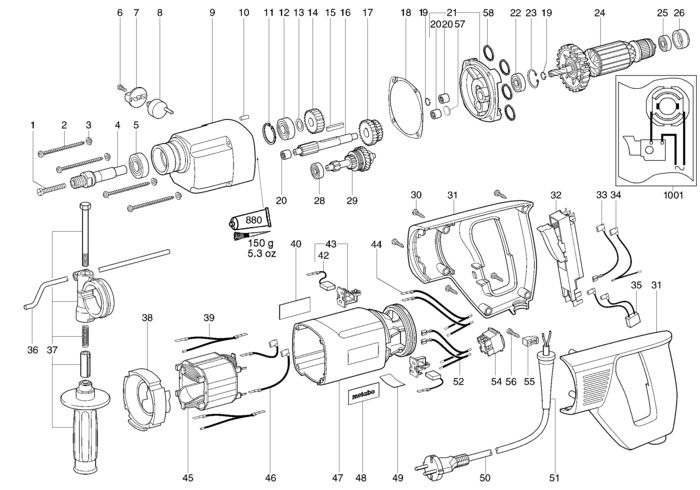

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 399999990 - Indisponibil
2 1 1 Self-tap. fill. h. screw (141118700) 781 RON
3 1 4 Gasket (339210910) 446 RON
4 1 1 Spindle (341603790) 2848 RON
5 1 1 Ball bearing, 15x35x11 (143111520) 7157 RON
6 1 1 Cap screw (141111070) 446 RON
7 1 1 Control knob cpl. (316049410) 8275 RON
8 1 1 Gear Cover (316032920) 13756 RON
9 1 1 Gear Cover (316032790) 4442 RON
10 1 1 141160350 - Indisponibil
11 1 1 Retaining ring (141180360) 781 RON
12 1 1 Ball bearing, 12x28x8 (143113860) 5479 RON
13 1 1 Washer (141152150) 781 RON
14 1 1 Spindle wheel (340003430) 18341 RON
15 1 1 PRALLEL KEY (141154910) 446 RON
16 1 1 Gear spindle (340003410) 21361 RON
17 1 1 Gear cluster (340003420) 24046 RON
18 1 1 Gasket (339210850) 1340 RON
19 1 2 Retaining ring (141180040) 446 RON
20 1 3 Needle sleeve (143111460) 1564 RON
21 1 1 Gear Cover (316032800) 2848 RON
22 1 1 Ball bearing, 10x26x8 (143111120) 7157 RON
23 1 1 Retaining ring (141180350) 781 RON
24 1 1 Armature cpl. 230 V (310008290) 54357 RON
25 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
26 1 1 Rubber bearing (344096020) Indisponibil Indisponibil
28 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
29 1 1 Intermediate gear cpl. (316032820) 4442 RON
30 1 5 Self-tap. fill. h. screw (141116020) 781 RON
31 1 1 D-handle (343377080) 13756 RON
32 1 1 Half wave switch (343407310) 30980 RON
33 1 1 399999990 - Indisponibil
34 1 1 399999990 - Indisponibil
35 1 1 Suppressor (343254180) 2459 RON
36 1 1 Depth stop (341511630) Indisponibil Indisponibil
37 1 1 Support handle cpl. (314000790) 955 RON
38 1 1 Baffle (339150970) 190 RON
39 1 2 399999990 - Indisponibil
40 1 1 Rating plate (338048440) 446 RON
42 1 1 Carbon brush (316035080) 955 RON
43 1 2 316033220 - Indisponibil
44 1 2 Lead Wire (Switch) (344494870) 781 RON
45 1 1 Field coil 230 V (311010040) 19236 RON
46 1 2 Lead Wire (Switch) (344494860) 105 RON
47 1 1 Motor housing (315012780) 7157 RON
48 1 1 M-Label,08 52x22 (338122160) 446 RON
49 1 1 399999990 - Indisponibil
50 1 1 Cable Chinese (344493650) 955 RON
51 1 1 Cable sleeve (344100970) 781 RON
52 1 2 Lead Wire (Switch) (344494880) 781 RON
54 1 1 Change-over switch (343407330) 13756 RON
55 1 1 Cable clip (343362490) 781 RON
56 1 1 Self-tap. fill. h. screw (141117060) 781 RON
57 1 1 Washer (339000770) 446 RON
58 1 1 O-ring (143195080) 446 RON
880 1 1 Grease (344131050) 19236 RON
1001 1 1 338502500 - Indisponibil
