Top » Piese de schimb » PIESE METABO » 0230033000 10

BASIC 330 SILENT - 0230033000 10 - EU 230V
[0230033000 10]
BASIC 330 SILENT - 0230033000 10 - EU 230V
Click pentru a mari
Imagini suplimentare
BASIC 330 SILENT - 0230033000 10 - EU 230V
Click pentru a mari

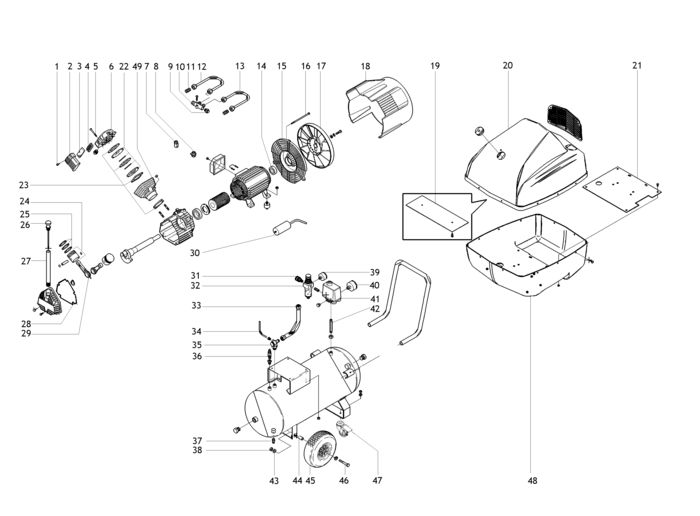

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 86172075604 - Indisponibil
2 1 1 AIR FILTER CASING (81319702071) 10288 RON
3 1 1 AIR FILTER ELEMENT ET (87825626799) 781 RON
4 1 1 1311626813 - Indisponibil
5 1 4 Hex head screw (86103001151) 446 RON
6 1 1 CYLINDER HEAD ET (81313632098) 24046 RON
7 1 1 CABLE BUSHING ET (81311662496) 190 RON
8 1 1 STRAIN RELIEF RD 21 ET (88240662699) 3689 RON
9 1 1 VALVE NA 2,2 BAR / 1/4"A ET (81319662673) 488 RON
10 1 1 AIR COLLECTOR PIECE ET (81319663149) 13756 RON
11 1 2 DOUBLE NIPPLE R 1/4" 1 SEITE KONISCH/ET (87806663101) 190 RON
12 1 1 PRESSURE LINE ET (81313632080) 955 RON
13 1 1 PRESSURE LINE ET (81313632071) 955 RON
14 1 1 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
15 1 1 FAN COVER ET (81313632055) 33553 RON
16 1 4 1315661907 - Indisponibil
17 1 1 FAN WING (81319702080) 39481 RON
18 1 1 MOTOR COVER MOTOR /ET (81311626821) 15993 RON
19 1 1 1319702110 - Indisponibil
20 1 1 LID (81319702101) 127394 RON
21 1 1 1319702128 - Indisponibil
22 1 1 VALVE PLATE SET ET (81319661650) 24046 RON
23 1 1 GASKET KIT ET (81319661600) 7157 RON
24 1 2 1319686203 - Indisponibil
25 1 2 PISTON RING SET ET (81319661588) 19236 RON
26 1 1 DIP STICK (81319702055) 3689 RON
27 1 1 RECEIVER TUB (81319702063) 19236 RON
28 1 1 GASKET ET (81319632138) 190 RON
29 1 2 CONNECTING ROD ET (81319661812) 3018 RON
30 1 1 CAPACITOR 50uF/450V M.KABEL /ET (88050624472) 34448 RON
31 1 1 7802009083 - Indisponibil
32 1 1 FILTER PRESSURE REGULATOR FR BIT 1/4" MA (87820661987) 4442 RON
33 1 1 PRESSURE HOSE BASIC 330 (87853702026) 4442 RON
34 1 1 PRESSURE LINE RD 6X700 ET (81319632022) 3689 RON
35 1 1 CHECK VALVE 1/2"AX1/2"A RECHTS/ET (87831662586) 19236 RON
36 1 1 SAFETY VALVE 1/4"A/10 BAR ET (87833662621) 39481 RON
37 1 1 7830686074 - Indisponibil
38 1 1 HEXAGON NUT (86200017992) 446 RON
39 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
40 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
41 1 1 AUTOM. PRESSURE CONTROL SWITCH BASIC 33 (88101702040) 4442 RON
42 1 1 DOUBLE NIPPLE R 1/4" x 60LANG BASIC 330 (87806702034) 10288 RON
43 1 2 Washer (86300016705) Indisponibil Indisponibil
44 1 1 RADHUELSE (81315686101) 3018 RON
45 1 2 WHEEL BASIC 330 SILENT (87270702001) 2848 RON
46 1 2 HEXAGON HEAD SCRE M 12X100 VERZ. (86103001275) 105 RON
47 1 2 SWIVEL PLATE CASTER BASIC 330 (87271702013) 19236 RON
48 1 1 HOUSING, PRE-ASSEMBLE (81319702098) 117663 RON
49 1 2 CYLINDER ET (81319649707) 54357 RON
