Top » Piese de schimb » PIESE METABO » 0230022216 10

BASIC 265 - 0230022216 10 - EU 230V
[0230022216 10]
BASIC 265 - 0230022216 10 - EU 230V
Click pentru a mari
Imagini suplimentare
BASIC 265 - 0230022216 10 - EU 230V
Click pentru a mari

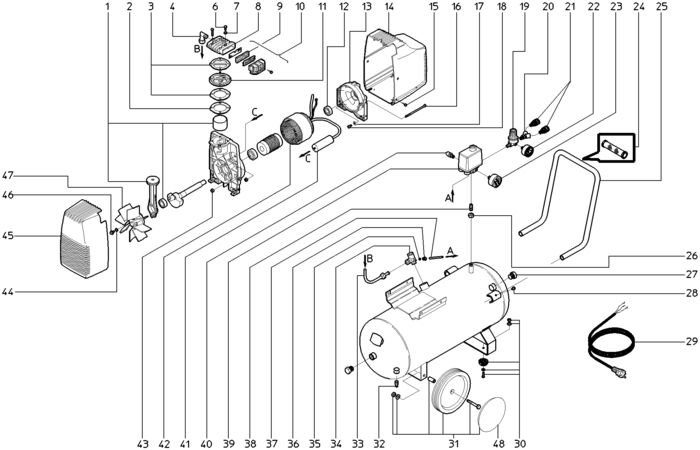

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 PISTON-CONNECTING ROD SET MIT LAGER /ET (81319661774) 39481 RON
2 1 1 SPACER RING ET (81311661937) 190 RON
3 1 1 GASKET KIT ET (81319661626) 7157 RON
4 1 1 ELBOW TAP CONNECTOR 1/4"AX1/2"A F.DRUCKL (87872663295) 7157 RON
6 1 1 HEX.SOCKET COUNTERS.HEAD SCREW M 4X12 VE (86131001558) 446 RON
7 1 1 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
8 1 1 CYLINDER HEAD ET (81319662290) 18341 RON
9 1 1 AIR FILTER ELEMENT ET (87825626799) 781 RON
10 1 1 AIR FILTER ASSEMBLY ET (87825661730) 2459 RON
11 1 1 VALVE PLATE SET ET (81319661634) 15993 RON
12 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100047254) 3689 RON
13 1 1 BEARING PLATE ET (81310662417) 18341 RON
14 1 1 COVER SCHWARZ / ET (81311662054) 13756 RON
15 1 4 RAISED CHEESE HEAD SCREW M 5X16 VERZ. (86123002057) 446 RON
16 1 2 1315661923 - Indisponibil
17 1 1 Serrated lock washer (86304084020) 446 RON
18 1 1 THREAD CUTTING SCREW A M 4X8 VERZ. (86175604551) 446 RON
19 1 1 PRESSURE REGULATOR RP-192 1/4"I-A ET (87822661968) 15993 RON
20 1 1 Y-FITTING R 1/4"A-II ET (87871663127) 4249 RON
21 1 2 7802009083 - Indisponibil
22 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
23 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
24 1 1 7008662210 - Indisponibil
25 1 1 HANDLE BAR ET (81315661842) 5479 RON
26 1 1 COUNTER NUT R 1/4" ET (86209113919) 2124 RON
27 1 1 6109079322 - Indisponibil
28 1 2 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
29 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
30 1 2 81001661708 - Indisponibil
31 1 2 WHEEL ASSEMBLY RD 200 ET (81001661694) 39481 RON
32 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
33 1 1 PRESSURE LINE RD 14 ET (81319662088) 18341 RON
34 1 1 CHECK VALVE 1/2"AX1/2"A LINKS/ET (87831662594) 11519 RON
35 1 1 COMPRESSION RING 6 MM ET (87875156629) 781 RON
36 1 1 UNION NUT 6 MM ET (87874156609) 488 RON
38 1 1 DOUBLE NIPPLE R 1/4" ET (87806663110) 1564 RON
39 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 1/11 (88101662161) 30980 RON
40 1 1 SAFETY VALVE 1/4"A/8 BAR SV97-9997D/G0,6 (87833662613) 21361 RON
41 1 1 CAPACITOR 30uF/450V MIT FLACHSTECKER/ET (88050662242) 18341 RON
42 1 1 STATOR 1,10 KW / 2-POL. ET (88014663259) 9821 RON
43 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
44 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
45 1 1 COVER BLAU / ET (81311662062) 10288 RON
46 1 1 Hex head screw (86103001135) 446 RON
47 1 1 FAN WING ET (81319662657) 7157 RON
48 1 2 WHEEL CAP RAD RD 200 ET (81311672505) 1340 RON
7600 1 1 CARTON 850X330X720 BASIC 265/270/300 (84810670539) 18341 RON
