Top » Piese de schimb » PIESE METABO » 0910050010 11

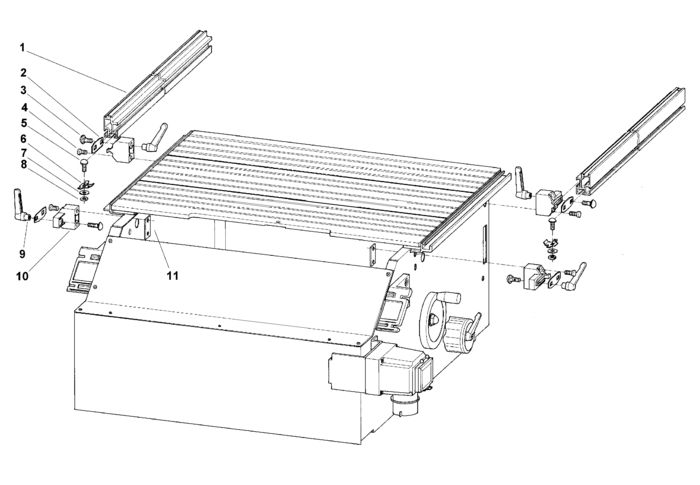

Base CARRIER SYSTEM PKF 255 - 0910050010 11 - -
[0910050010 11]
Base CARRIER SYSTEM PKF 255 - 0910050010 11 - -
Click pentru a mari
Imagini suplimentare
Base CARRIER SYSTEM PKF 255 - 0910050010 11 - -
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 CROSSMEMBER EXTRUSION 720 MM (81383217136) 24046 RON
2 1 4 CLAMPING PLATE BL 2,99X18,5X55 (81382222217) 781 RON
3 1 4 Truss head screw (86110031325) 446 RON
4 1 8 HEXAGON SOCKET HEAD CAP SCREW M 6X45 VER (86121029632) 446 RON
5 1 2 CUP SQUARE NECK SCREW (86110000594) 446 RON
6 1 2 POSITIONING PLATE BL 2,99X33,5X36 (81482222486) 781 RON
7 1 2 Washer (86305002087) 446 RON
8 1 2 Flange nut (86209114230) 446 RON
9 1 4 Clamping lever (87006072385) 2459 RON
10 1 4 BRACKET (81380217321) 3689 RON
11 1 4 FASTENING STRAP FL 16X5X48 /2XM6 (81482222788) 1564 RON
7500 1 1 SPARE PARTS LIST 4-SEITIG /A4 ART.-NR.09 (81153674872) 1564 RON
