Top » Piese de schimb » PIESE METABO » 0090060023 10

BAS 600 DNB - 0090060023 10 - 3 / 400V/50Hz
[0090060023 10]
BAS 600 DNB - 0090060023 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
BAS 600 DNB - 0090060023 10 - 3 / 400V/50Hz
Click pentru a mari
BAS 600 DNB - 0090060023 10 - 3 / 400V/50Hz
Click pentru a mari

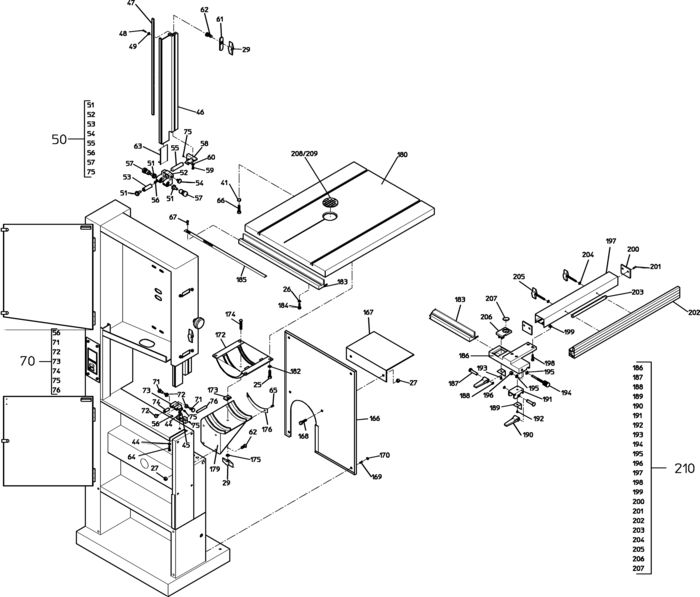

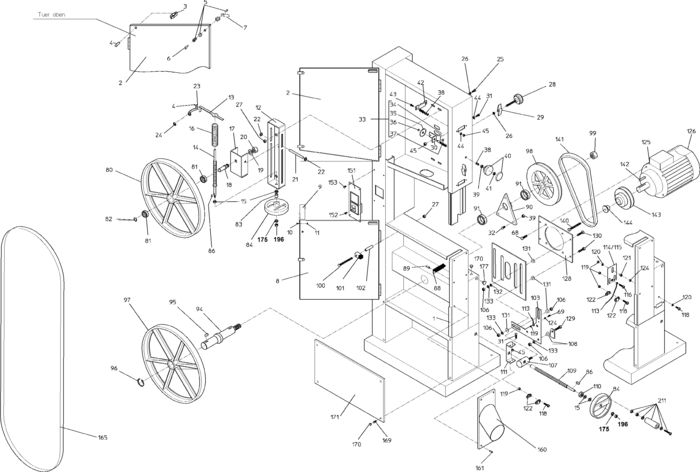

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FLEXIBLE EDGE GUARD 2 MM FLEXIBEL (87056035812) 2459 RON
2 1 1 1009419507 - Indisponibil
3 1 1 LEAF SPRING (87052215689) 1564 RON
4 1 1 BLIND RIVET, MUSHROOM HEAD (86621010474) 446 RON
5 1 1 7014074168 - Indisponibil
6 1 1 7014198568 - Indisponibil
7 1 1 LATCH SCHMAL (87014140071) 1564 RON
8 1 1 1009417997 - Indisponibil
9 1 1 SAWBAND GUARD BL 1,50X94X62 (81382421317) 3689 RON
10 1 1 RAISED CHEESE HEAD SCREW (86123022619) 446 RON
11 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
12 1 1 1382415740 - Indisponibil
13 1 1 INDICATOR, BLADE TENSION (81009417172) 488 RON
14 1 1 SPINDLE, HEIGHT ADJUSTMENT M 16X308,5 (81485415773) 18341 RON
15 1 1 DEEP GROOVE BALL THRUST BEARG. 51101 (12 (87103198598) 7157 RON
16 1 1 PRESSURE SPRING RDA 32 LO=127 (87051189064) 21361 RON
17 1 1 1009417156 - Indisponibil
18 1 1 1485415765 - Indisponibil
19 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
20 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
21 1 1 PARALLEL PIN 10 h11X100 (86500087283) 1564 RON
22 1 1 STARLOCK (87016050711) 446 RON
23 1 1 VERNIER CARRIER BL 1,50X40X126,5 (81382605515) 488 RON
24 1 1 ADHESIVE LABEL WHITE/RED 20X14 NONIUS-SC (81141100110) 781 RON
25 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
26 1 1 Washer (86305002486) 446 RON
27 1 1 Flange nut (6209110995) 446 RON
28 1 1 STARKNOB SCREW M 8X65 (DIN 558) VERZINKT (87001047374) 1564 RON
29 1 1 Thumb-nut (87005135529) 781 RON
30 1 1 STAY BRACKET BL 1,5X33X82 (81382046028) 105 RON
31 1 1 Hex head screw (86103015675) 446 RON
32 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
33 1 1 THREADED BOLT WITH GEAR (81009008876) 13756 RON
34 1 1 GEARWHEEL BOLT RD 12 X 88 (81485046123) 2459 RON
35 1 1 GEARWHEEL Z=24 M=1,5 (81381045869) 7157 RON
36 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
37 1 1 CLAMPING SLEEVE 4X20 (86503001665) 446 RON
38 1 1 CUP SPRING (87053010088) 446 RON
39 1 1 HEXAGON THIN NUT (86205029131) 446 RON
40 1 1 KNURLED THUMB NUT RD 62,5 M 8 (86241133255) 2124 RON
41 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
42 1 1 GUIDE EXTRUSION (81380404164) 1564 RON
43 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
44 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
45 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
46 1 1 BLADE GUIDE TUBE EXTRUSION 600 MM (81383419430) 41718 RON
47 1 1 TOOTHED RACK 13 MM (81380085514) 1340 RON
48 1 1 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
49 1 1 Serrated lock washer (86304084020) 446 RON
50 1 1 THREE-ROLLER GUIDE BAS505 (81009704546) 93951 RON
51 1 1 ROLLER RD 25/8X28 (81485681171) 15993 RON
52 1 1 CASING, THREE-ROLLER-GUIDE GRO? (81380419161) 19236 RON
53 1 1 BUSHING RD 16X41 (81385419178) 5479 RON
54 1 1 KNURLED THUMB SCREW, THIN TYPE M 5X16 VE (87009120054) 105 RON
55 1 1 RETAINING BOLT RD 16/14,5X65 (81485409005) 8275 RON
56 1 1 KNURLED THUMB NUT M 16X1 (81385693113) 3018 RON
57 1 1 BEARING BUSH RD 18X46 (81385693105) 8275 RON
58 1 1 SEAT, THREE-ROLLER GUIDE OBEN (81380406469) 5926 RON
59 1 1 86172001848 - Indisponibil
60 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
61 1 1 BOLT GUIDE BL 1,5X22X60 (81382083667) 446 RON
62 1 1 Truss head screw (86110017942) 446 RON
63 1 1 LATERAL SLIDE 64,8X120 (81381419360) 105 RON
64 1 1 Hex head screw (86103001135) 446 RON
65 1 1 86172015687 - Indisponibil
66 1 1 HEXAGON HEAD SCREW M 8X55 VERZ. (86102052461) 446 RON
67 1 1 86172039632 - Indisponibil
68 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121151101) 446 RON
69 1 1 RAISED CHEESE HEAD SCREW M 4X35 VERZ. (86123121323) 446 RON
70 1 1 THREE-ROLLER GUIDE KLEIN (81009192332) 59166 RON
71 1 1 BEARING BUSH RD 16/M 10X22 (81385419194) 4249 RON
72 1 1 ROLLER RD 16/5X16 (81485681180) 15993 RON
73 1 1 CASING, THREE-ROLLER-GUIDE KLEIN (81380419218) 8275 RON
74 1 1 BUSHING RD 10X25 (81385419208) 488 RON
75 1 1 Grub screw (86163121261) 446 RON
76 1 1 RETAINING BOLT RD 10/9,6X55 (81485409013) 5479 RON
80 1 1 UPPER BANDSAW WHEEL ASSEMBLY (81388198580) 93951 RON
81 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205-2 (87100010202) 488 RON
82 1 1 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
83 1 1 BUSHING RDA 20 / RDI 12,5X18 (81485417164) 3689 RON
84 1 1 HANDWHEEL RD 125X12 NUT 4 GRIFFAUFNAHME (87003114680) 21361 RON
86 1 1 FEATHER KEY A 4X4X12 (86721099600) 446 RON
89 1 1 BLIND RIVET, MUSHROOM HEAD 5X10 F FLACHR (86621063896) 446 RON
90 1 1 FLANGE BEARING MIT ANTRIEBSWELLE (81380416987) 73930 RON
91 1 1 DEEP GROOVE BALL BEARING (87100016812) 5479 RON
94 1 1 DRIVE SHAFT RD 35X155,5 (81485416990) 26730 RON
95 1 1 FEATHER KEY A 8X7X20 (86721189137) 446 RON
96 1 1 RETAINING RING FOR SHAFTS 25X1,2 (86400016664) 446 RON
97 1 1 LOWER BANDSAW WHEEL ASSEMBLY (81388198750) 83437 RON
98 1 1 V-BELT PULLEY VX DW 230X1 BOHRUNG 25 NU (87240416977) 4442 RON
99 1 1 HEXAGON THIN NUT (86205008460) 1340 RON
100 1 1 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) 781 RON
101 1 1 BRUSH STRIP (89132081414) 3689 RON
102 1 1 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
103 1 1 LEVER ARM BL 2,99X224,2X224,9 (81382407012) 488 RON
106 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
107 1 1 PUSH PIECE RD 25X43X M 10X21,5 (81485408904) 3689 RON
108 1 1 GUIDE ROLLER RD 25X6,5 (81485406588) 105 RON
109 1 1 1485421129 - Indisponibil
110 1 1 HEXAGON NUT M 14 VERZ. (86200002278) 446 RON
111 1 1 1382417026 - Indisponibil
113 1 1 BOWDEN WIRE RD 1,5X750 (87238100598) 8275 RON
114 1 1 1382412164 - Indisponibil
116 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X16 VE (86131178687) 446 RON
118 1 1 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
119 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
120 1 1 INSULATING WASHER RD 10/4,1X1,0 (81381413183) 446 RON
121 1 1 INSULATING WASHER RD 10/4,2X3,0 (81381413175) 446 RON
122 1 1 STRAIN RELIEF (88242033664) 446 RON
124 1 1 HEXAGON NUT (86200002197) 446 RON
125 1 1 MOTOR, BANDSAW BAS 1,50 DNB 3X220/380V (81009166684) 220451 RON
126 1 1 FAN COVER 120/13 (81331408847) 1340 RON
128 1 1 1382416704 - Indisponibil
129 1 1 CUP SQUARE NECK SCREW M 10X30 VERZ. (86110091603) 446 RON
130 1 1 CUP SQUARE NECK SCREW M 10X25 VERZ. (86110085743) 446 RON
131 1 1 GUIDE ROLLER RD 25X5,5 (81485408882) 105 RON
132 1 1 PLASTIC WASHER RDI 12,2X30X31 (82391205186) 446 RON
133 1 1 7053010118 - Indisponibil
140 1 1 HEXAGON HEAD SCREW M 8X90 LINKS (86143417040) 5479 RON
141 1 1 V-BELT VX 17X9X1260 LI +-8 MM WINKEL 27G (87230189360) 21361 RON
142 1 1 6721189315 - Indisponibil
143 1 1 1388189386 - Indisponibil
144 1 1 1485417032 - Indisponibil
151 1 1 SWITCH PLATE BD 2,50X92X230 ABSCHLIE?B. (81382411052) 5926 RON
152 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
153 1 1 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
160 1 1 DUST EXTRACTION PORT (81381419130) 5479 RON
161 1 1 BLIND RIVET, MUSHROOM HEAD 5X20 F FLACHR (86621603785) 446 RON
165 1 1 1386070950 - Indisponibil
166 1 1 1382421147 - Indisponibil
167 1 1 MOTOR COVER BL 3X250X279 (81382059553) 11519 RON
168 1 1 HEXAGON HEAD SCREW M 8X12 VERZ. (86103001160) 446 RON
169 1 1 86172015687 - Indisponibil
170 1 1 CABLE GLAND STOPPING PLUG 16/12X8,4 (88243127697) 446 RON
171 1 1 1382416941 - Indisponibil
172 1 1 TABLE TRUNNION, UPPER (81380062506) 30980 RON
173 1 1 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115) 105 RON
174 1 1 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
175 1 1 Washer (86300016322) Indisponibil Indisponibil
176 1 1 ADHESIVE LABEL SILVER/BLACK 1,00 0-45 GR (81141403490) 2124 RON
177 1 1 PLUG RD 21,9 (81381106094) 446 RON
179 1 1 TABLE TRUNNION, LOWER (82380062510) 2848 RON
180 1 1 TABLE 535X725 (81380419340) 343820 RON
182 1 1 Serrated lock washer (86304001745) 446 RON
183 1 1 GUIDE EXTRUSION 534 MM (81383419510) 24046 RON
184 1 1 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144) 781 RON
185 1 1 SCALE 0,165X13X518 (81142421530) 10288 RON
186 1 1 FENCE CARRIER (81380214497) 19236 RON
187 1 1 BOLT RD 12/10X45 (81485214360) 1564 RON
188 1 1 RETAINING RING FOR SHAFTS 10X1 VERZ. (86400047349) 446 RON
189 1 1 LEAF SPRING (87052214356) 1340 RON
190 1 1 Cam lock lever (82390205484) 3018 RON
191 1 1 TENSION BRACKET (81380214349) 488 RON
192 1 1 RAISED CHEESE HEAD SCREW M 5X6 VERZ. (86123149287) 446 RON
193 1 1 THREAD CUTTING SCREW A (86175174166) 446 RON
194 1 1 SET SCREW RD 19/SW 6X110 / M 8 (81485214379) 5926 RON
195 1 1 Cup spring (87053016795) 446 RON
196 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
197 1 1 FENCE CARRIER EXTRUSION 490 MM (81383214420) 21361 RON
198 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
199 1 1 SQUARE NUT (86218005126) 446 RON
200 1 1 EXTRUSION END CAP (81381214458) 105 RON
201 1 1 Self-tapp. counters. screw (86174155800) 446 RON
202 1 1 AUXILIARY FENCE EXTRUSION 700 MM (81383214447) 18341 RON
203 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
204 1 1 Washer (86305002087) 446 RON
205 1 1 THUMB SCREW M 6X68 (86150190299) 105 RON
206 1 1 MAGNIFYING GLASS SEAT TKU1693 (81381695820) 105 RON
207 1 1 MAGNIFYING GLASS (81381659999) 2459 RON
208 1 1 TABLE INSERT RD 70X5 BREITER SCHLITZ (81381404419) 1340 RON
209 1 1 TABLE INSERT RD 70X5 SCHMALER SCHLITZ (81381404400) 1340 RON
210 1 1 RIP FENCE (81010190300) 93951 RON
211 1 1 CRANK HANDLE W/CAP SCREW RD 24X100/ M 8X (87004119562) 4249 RON
7001 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
