Top » Piese de schimb » PIESE METABO » 0090505038 11

BAS 505 G WNB - 0090505038 11 - GB 230V
[0090505038 11]
BAS 505 G WNB - 0090505038 11 - GB 230V
Click pentru a mari
Imagini suplimentare
BAS 505 G WNB - 0090505038 11 - GB 230V
Click pentru a mari
BAS 505 G WNB - 0090505038 11 - GB 230V
Click pentru a mari

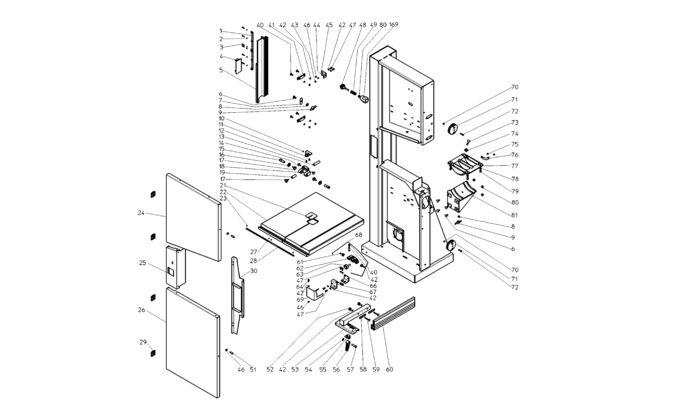

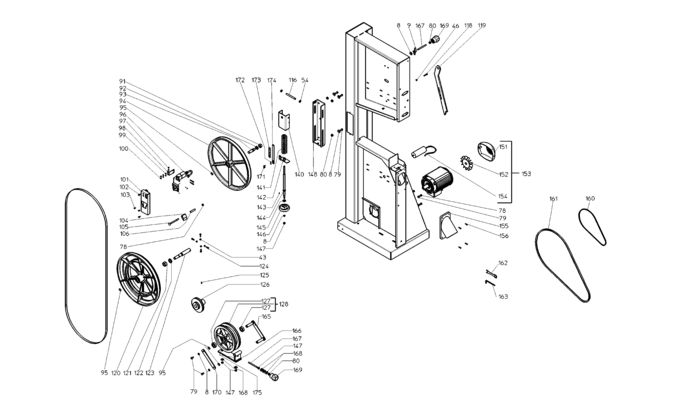

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TOOTHED RACK 13 MM (81380085514) 1340 RON
2 1 6 Serrated lock washer (86304084020) 446 RON
3 1 6 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
4 1 1 LATERAL SLIDE 64,8X120 (81381419360) 105 RON
5 1 1 BLADE GUIDE TUBE EXTRUSION 600 MM (81383419430) 41718 RON
6 1 5 Truss head screw (86110017942) 446 RON
7 1 1 BOLT GUIDE BL 1,5X22X60 (81382083667) 446 RON
8 1 9 Washer (86300016322) Indisponibil Indisponibil
9 1 3 Thumb-nut (87005135529) 781 RON
10 1 1 Grub screw (86163121261) 446 RON
11 1 1 SEAT, THREE-ROLLER GUIDE OBEN (81380406469) 5926 RON
12 1 2 86172001848 - Indisponibil
13 1 1 RETAINING BOLT RD 16/14,5X65 (81485409005) 8275 RON
14 1 2 KNURLED THUMB SCREW, THIN TYPE M 5X16 VE (87009120054) 105 RON
15 1 2 BEARING BUSH RD 18X46 (81385693105) 8275 RON
16 1 2 KNURLED THUMB NUT M 16X1 (81385693113) 3018 RON
17 1 3 ROLLER RD 25/8X28 (81485681171) 15993 RON
18 1 1 CASING, THREE-ROLLER-GUIDE GRO? (81380419161) 19236 RON
19 1 1 BUSHING RD 16X41 (81385419178) 5479 RON
21 1 1 TABLE INSERT BL 2,00X69X70,5 (81382692671) 2459 RON
22 1 1 1380692950 - Indisponibil
23 1 4 RAISED CHEESE HEAD SCREW M 3X8 VERZ. (86123004076) 669 RON
24 1 1 DOOR, UPPER BL 1,50X636X702 BAS505 (81382721264) 39481 RON
25 1 1 CONNECTING PLATE BL 1,50X258,5X420 BAS50 (81382721426) 15993 RON
26 1 1 DOOR, LOWER BL 1,50X621X828 BAS505 (81382721299) 39481 RON
27 1 1 1142696947 - Indisponibil
28 1 1 SCALE 0,50X10X257 0,00-15,00 CM (81142696939) 3018 RON
29 1 4 BOLT-ON HINGE 40X40 (81321712858) 3018 RON
30 1 1 REINFORCING PLAT BL 1,50X152X730 BAS505 (81382721442) 19236 RON
40 1 4 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
41 1 2 GUIDE EXTRUSION (81380404164) 1564 RON
42 1 8 Washer Washer cod vechi 86300016365 (141151940) 446 RON
43 1 4 Hex nut (86200002219) 446 RON
44 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
45 1 1 STAY BRACKET BL 1,5X33X82 (81382046028) 105 RON
46 1 7 Flange nut (86209114230) 446 RON
47 1 6 Hex head screw (86103015675) 446 RON
48 1 1 THREADED BOLT WITH GEAR (81009008876) 13756 RON
49 1 6 CUP SPRING (87053010088) 446 RON
51 1 2 THREADED BOLT RD 11X30 / M6X12 (81485693129) 2459 RON
52 1 2 Knurled nut (86241125058) 781 RON
53 1 1 1009693030 - Indisponibil
54 1 2 STARLOCK (87016050711) 446 RON
55 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
56 1 1 Cam lock lever (82390205484) 3018 RON
57 1 1 BOLT WITH HEAD (86632111175) 105 RON
58 1 2 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
59 1 2 CUP SQUARE NECK SCREW M 6X50 VERZ. (86110052292) Indisponibil Indisponibil
60 1 1 AUXILIARY FENCE EXTRUSION 450 MM (81383693051) 15993 RON
61 1 2 THRUST BEARING ET (81009010935) 3018 RON
62 1 1 THREE-ROLLER GUID F?R STRANGGU?PROFIL (82380113670) 955 RON
63 1 1 THRUST BEARING, HEAVY-DUTY DREIROLLENF. (81009010951) 15993 RON
64 1 3 Cap screw (86121000766) 446 RON
66 1 1 HOLDER BL 2,99X50X78 BAS505 (81382700330) 5479 RON
67 1 1 BRACKET BL 2,99X60X82 (81382697100) 3018 RON
68 1 1 THREE-ROLLER GUIDE BAS 505 G (81009692785) 39481 RON
69 1 1 GUARD PLATE BL 1,50X103X177 (81382693201) 7157 RON
70 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
71 1 2 SETTING KNOB, LOCK ACTION (81381692694) 2459 RON
72 1 3 Cap screw (86121000766) 446 RON
73 1 1 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
74 1 1 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115) 105 RON
75 1 4 86172015687 - Indisponibil
76 1 1 ADHESIVE LABEL SILVER/BLACK 1,00 0-45 GR (81141403490) 2124 RON
77 1 1 TABLE TRUNNION, UPPER (81380062506) 30980 RON
78 1 8 Serrated lock washer (86304001745) 446 RON
79 1 12 Hex head screw (86103001178) Indisponibil Indisponibil
80 1 5 Flange nut (6209110995) 446 RON
81 1 1 TABLE TRUNNION, LOWER (82380062510) 2848 RON
91 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
92 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
93 1 1 BEARING SHAFT RD 21X70 BAS505 (81485704023) 955 RON
94 1 1 UPPER BANDSAW WHEEL ASSEMBLY (81388198580) 93951 RON
95 1 1 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
96 1 1 1009701881 - Indisponibil
97 1 2 FLANGE NUT (86209620098) 669 RON
98 1 1 ANGLE BRACKET BL 2,00X58X100 BAS505 (81382697002) 2459 RON
99 1 2 HEXAGON NUT M 5 (86200199675) 446 RON
100 1 2 RAISED CHEESE HEAD SCREW M 4X35 VERZ. (86123121323) 446 RON
101 1 1 SWITCH ENCLOSUR BL 2,00X120,5X270 (81382692981) 13756 RON
102 1 2 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
103 1 2 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
104 1 1 BRUSH STRIP (89132081414) 3689 RON
105 1 1 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) 781 RON
106 1 1 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
116 1 1 PARALLEL PIN 10 h11X100 (86500087283) 1564 RON
118 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X30 VER (86121000774) 669 RON
119 1 1 Push stick (81394201630) 3018 RON
120 1 1 LOWER BANDSAW WHEEL ASSEMBLY (81009010870) 14839 RON
121 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
122 1 1 SPRING LOCK WASHER B 20 VERZ. (86301047329) 446 RON
123 1 1 BEARING SHAFT RD 25X170 BAS505 (81485721688) 15993 RON
124 1 4 Hex head screw (86103001135) 446 RON
125 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910) 446 RON
126 1 1 V-BELT PULLEY SPZ DW 116X1 BOHRUNG 24 NU (87240045014) 2848 RON
127 1 2 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100017703) 3689 RON
128 1 1 GEAR WHEE (81009010927) 68673 RON
140 1 1 TENSION BRACKET BL 2,99X152,5X256,5 BAS5 (81382721493) 18341 RON
141 1 1 PRESSURE SPRING D=7,5/DE=40/LO=160 (87051697094) 5926 RON
142 1 1 PRESSURE PLATE BL 2,99X76X88 BAS505 (81382721523) 3689 RON
143 1 1 FEATHER KE A 3X3X8 VERZ. (86721060355) 105 RON
144 1 1 SPINDLE, HEIGHT ADJUSTMENT RD 20X304,5 (81485692866) 18341 RON
145 1 1 CHECK WASHE GTM-1224-015 (87104693142) 1564 RON
146 1 1 HANDWHEEL (87003079524) 7157 RON
147 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
148 1 1 TENSION BRACKET BL 2,99X172,5X443,5 BAS5 (81382721477) 18341 RON
151 1 1 FAN COVER 120/13 (81331408847) 1340 RON
152 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
153 1 1 MOTOR, BANDSAW BAS 1,10 WNB 230/1/50 (81009008990) 197187 RON
154 1 1 CAPACITOR 37,5uF/400V 45,5X93 BOLZEN M 8 (88050011829) 10288 RON
155 1 1 1381699540 - Indisponibil
156 1 4 BLIND RIVET, MUSHROOM HEAD 4X10 F FLACHR (86621007910) 446 RON
160 1 1 V-BELT SPZ 862 (87230047396) Indisponibil Indisponibil
161 1 1 V-BELT SPZ 1562 (87230047400) Indisponibil Indisponibil
162 1 1 COMBINATION SPANNER SW 13 (89101178894) 3018 RON
163 1 1 ALLEN HEXAGON KEY SW 3 SCHWARZ (89102029329) 105 RON
165 1 1 1382721582 - Indisponibil
166 1 1 1382721620 - Indisponibil
167 1 2 THREADED ROD M 8X94 (81485208140) 105 RON
168 1 4 CUP SPRING (87053075104) 446 RON
169 1 3 KNOB, RED (81388698264) Indisponibil Indisponibil
170 1 1 BRACKET BL 4,00X30X180 BAS505 (81382721566) 4249 RON
171 1 2 Fillister head screw (86172001821) 446 RON
172 1 2 MEDIUM WASHER (86300016330) 446 RON
173 1 1 ADHESIVE LABEL CLEAR/BLACK 16X90 BLATTSP (81141721468) 3018 RON
174 1 1 SCAL BL 1,50X16X180 BAS505 (81382721540) 2459 RON
175 1 2 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
