Top » Piese de schimb » PIESE METABO » 05052000

BAS 505 Precision WNB - 05052000 - EU 230V
[05052000]
BAS 505 Precision WNB - 05052000 - EU 230V
Click pentru a mari
Imagini suplimentare
BAS 505 Precision WNB - 05052000 - EU 230V
Click pentru a mari
BAS 505 Precision WNB - 05052000 - EU 230V
Click pentru a mari
BAS 505 Precision WNB - 05052000 - EU 230V
Click pentru a mari

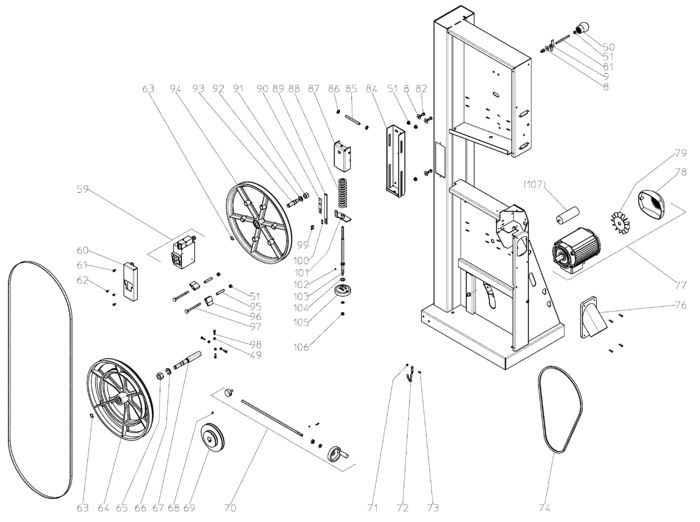

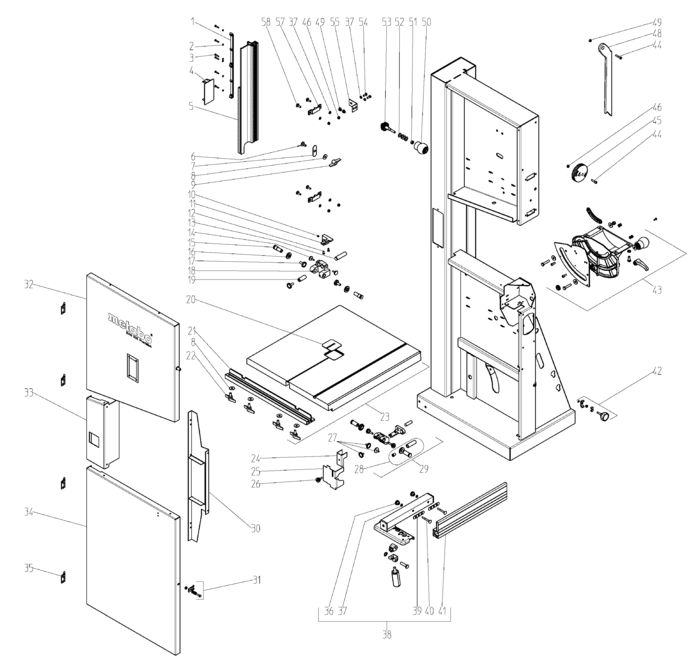

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 TOOTHED RACK 13 MM (81380085514) 1340 RON
2 1 1 Serrated lock washer (86304084020) 446 RON
3 1 6 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
4 1 1 LATERAL SLIDE 64,8X120 (81381419360) 105 RON
5 1 1 BLADE GUIDE TUBE EXTRUSION 600 MM (81383419430) 41718 RON
7 1 1 BOLT GUIDE BL 1,5X22X60 (81382083667) 446 RON
8 1 7 Washer (86300016322) Indisponibil Indisponibil
9 1 2 Thumb-nut (87005135529) 781 RON
10 1 1 Grub screw (86163121261) 446 RON
11 1 1 SEAT, THREE-ROLLER GUIDE OBEN (81380406469) 5926 RON
12 1 2 86172001848 - Indisponibil
13 1 1 RETAINING BOLT RD 16/14,5X65 (81485409005) 8275 RON
14 1 2 Knurled nut (86241125058) 781 RON
15 1 2 BEARING BUSH RD 18X46 (81385693105) 8275 RON
16 1 2 KNURLED THUMB NUT M 16X1 (81385693113) 3018 RON
17 1 3 THRUST BEARING RD 25/8X28 GEH?RTET (81485415544) 8275 RON
18 1 1 CASING, THREE-ROLLER-GUIDE GRO? (81380419161) 19236 RON
19 1 1 BUSHING RD 16X41 (81385419178) 5479 RON
20 1 1 TABLE INSERT BL 2,00X69X70,5 (81382692671) 2459 RON
21 1 1 GUIDE EXTRUSION MIT SKALA BAS 505 (81009720940) 13756 RON
22 1 4 THUMB SCREW RED M 8X18 (86150421509) 105 RON
23 1 1 TABLE ASSEMBLY BAS 505 (81009720924) 117663 RON
24 1 1 SAWBAND GUARD BL 1,50X63,5X96 BAS505 (81382713008) 7157 RON
25 1 1 GUARD PLATE BL 1,50X103X177 (81382693201) 7157 RON
26 1 3 KNURLED THUMB SCREW M 6X16 / RD 20 VERZ. (86143075468) 781 RON
27 1 3 THRUST BEARING BAS 317 PRECISION (81009719829) 4249 RON
28 1 2 BEARING BUSH BAS 317 PRECISION (81009719870) Indisponibil Indisponibil
29 1 1 THREE-ROLLER GUIDE BAS 317 PRECISION (81009719810) Indisponibil Indisponibil
30 1 1 REINFORCING PLAT BL 1,50X152X730 BAS505 (81382723186) 13756 RON
31 1 1 Clamp hook cpl. (81009740356) 3018 RON
32 1 1 DOOR, UPPER BL 1,50X636X702 BAS505 (81382723127) 39481 RON
33 1 1 CONNECTING PLATE (81382723178) 13756 RON
34 1 1 DOOR, LOWER BL 1,50X621X828 BAS505 (81382723151) 39481 RON
35 1 4 BOLT-ON HINGE 40X40 (81321712858) 3018 RON
36 1 2 Knurled nut (86241125058) 781 RON
37 1 12 Washer Washer cod vechi 86300016365 (141151940) 446 RON
38 1 1 1009693307 - Indisponibil
39 1 2 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
40 1 2 CUP SQUARE NECK SCREW M 6X50 VERZ. (86110052292) Indisponibil Indisponibil
41 1 1 AUXILIARY FENCE EXTRUSION 450 MM (81383693051) 15993 RON
42 1 1 Door lock system BAS 317 PRECISION (81009739676) 2124 RON
43 1 1 TABLE TRUNNION BAS 317 PRECISION (81009719942) 2848 RON
44 1 2 HEXAGON SOCKET HEAD CAP SCREW M 6X30 VER (86121000774) 669 RON
45 1 1 SETTING KNOB, LOCK ACTION (81381692694) 2459 RON
46 1 5 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
48 1 1 Push stick (81394201630) 3018 RON
49 1 11 Hex nut (86200002219) 446 RON
50 1 1 KNOB, RED (81388698264) Indisponibil Indisponibil
51 1 8 Flange nut (6209110995) 446 RON
52 1 6 CUP SPRING (87053010088) 446 RON
53 1 1 THREADED BOLT WITH GEAR (81009008876) 13756 RON
54 1 3 Hex head screw (86103015675) 446 RON
55 1 1 STAY BRACKET BL 1,5X33X82 (81382046028) 105 RON
57 1 2 GUIDE EXTRUSION (81380404164) 1564 RON
58 1 3 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
59 1 1 SWITCH WN N=4000 (88132743291) 78180 RON
60 1 1 SWITCH ENCLOSUR BL 2,00X120,5X270 (81382692981) 13756 RON
61 1 4 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
62 1 3 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
63 1 4 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
64 1 1 LOWER BANDSAW WHEEL ASSEMBLY (81009010870) 14839 RON
65 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
66 1 1 SPRING LOCK WASHER B 20 VERZ. (86301047329) 446 RON
67 1 1 BEARING SHAFT RD 25X170 BAS505 (81485721688) 15993 RON
68 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910) 446 RON
69 1 1 7240043275 - Indisponibil
70 1 1 belt clamping system (81009744823) 13756 RON
71 1 2 FLANGE NUT (86209620098) 669 RON
72 1 1 LEAF SPRING BAS 317 (87052740210) 669 RON
73 1 1 Fillister head screw (86123002022) 446 RON
74 1 1 V-belt (87230664514) 7157 RON
76 1 1 DUST EXTRACTION PORT MIT DURCHGREIFSCHUT (81009707596) 955 RON
77 1 1 ELECTRIC MOTOR 1,50 WNB RE.-M.BR. (BAS) (88012688483) 127394 RON
78 1 1 FAN COVER 120/13 (81331408847) 1340 RON
79 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
81 1 1 THREADED ROD M 8X94 (81485208140) 105 RON
82 1 3 Hex head screw (86103001178) Indisponibil Indisponibil
84 1 1 TENSION BRACKET (81009732620) 19236 RON
85 1 1 PARALLEL PIN 10 h11X100 (86500087283) 1564 RON
86 1 2 STARLOCK (87016050711) 446 RON
87 1 1 TENSION BRACKET BL 2,99X152,5X256,5 BAS5 (81382721493) 18341 RON
88 1 1 PRESSURE SPRING D=7,5/DE=40/LO=160 (87051697094) 5926 RON
89 1 1 SCAL BL 1,50X16X180 BAS505 (81382721540) 2459 RON
90 1 1 ADHESIVE LABEL CLEAR/BLACK 16X90 BLATTSP (81141721468) 3018 RON
91 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
92 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
93 1 1 BEARING SHAFT RD 21X70 BAS505 (81485704023) 955 RON
94 1 1 UPPER BANDSAW WHEEL ASSEMBLY (81388198580) 93951 RON
95 1 2 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
96 1 2 BRUSH STRIP (89132081414) 3689 RON
97 1 2 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) 781 RON
98 1 4 Hex head screw (86103001135) 446 RON
99 1 2 Fillister head screw (86172001821) 446 RON
100 1 2 MEDIUM WASHER (86300016330) 446 RON
101 1 1 PRESSURE PLATE BL 2,99X76X88 BAS505 (81382721523) 3689 RON
102 1 1 FEATHER KE A 3X3X8 VERZ. (86721060355) 105 RON
103 1 1 SPINDLE, HEIGHT ADJUSTMENT RD 20X304,5 (81485692866) 18341 RON
104 1 1 CHECK WASHE GTM-1224-015 (87104693142) 1564 RON
105 1 1 HANDWHEEL (87003079524) 7157 RON
106 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
107 1 1 Condenser 30uF/450V ? 35 X 90 (88050732160) 955 RON
1001 1 1 338505600 - Indisponibil
