Top » Piese de schimb » PIESE METABO » 0090050028 10

BAS 500 WNB - 0090050028 10 - EU 230V
[0090050028 10]
BAS 500 WNB - 0090050028 10 - EU 230V
Click pentru a mari
Imagini suplimentare
BAS 500 WNB - 0090050028 10 - EU 230V
Click pentru a mari
BAS 500 WNB - 0090050028 10 - EU 230V
Click pentru a mari
BAS 500 WNB - 0090050028 10 - EU 230V
Click pentru a mari

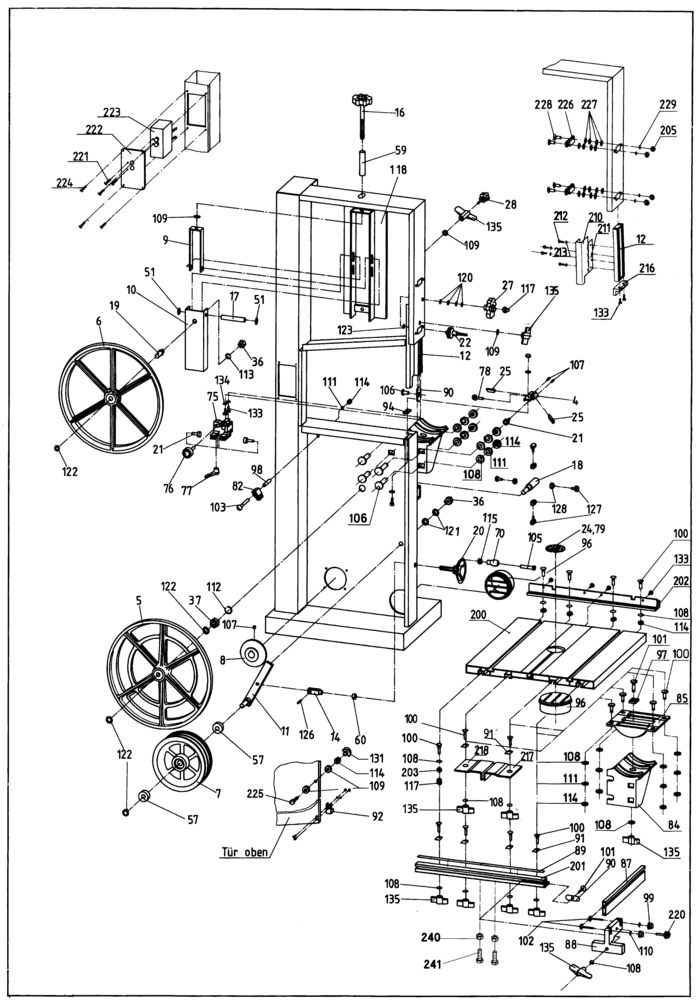

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 BANDSAW TYRE 445X2,5X24 65 SHORE (87232047415) Indisponibil Indisponibil
4 1 1 GUIDE SUPPORT (81380044990) 5926 RON
5 1 1 LOWER BANDSAW WHEEL ASSEMBLY (81009010870) 14839 RON
6 1 1 UPPER BANDSAW WHEEL ASSEMBLY (81388198580) 93951 RON
7 1 1 7240050875 - Indisponibil
8 1 1 V-BELT PULLEY SPZ DW 116X1 BOHRUNG 24 NU (87240045014) 2848 RON
9 1 1 TENSION BRACKET FL 25X5X381 (81382069060) 488 RON
10 1 1 1009008850 - Indisponibil
11 1 1 INTERMEDIATE WHEEL SUPPORT (81009008914) 19236 RON
12 1 1 GUIDE TUBE SCHIEBEROHRPROFIL (81009146659) 30980 RON
14 1 1 BRACKET G 8X32 VERZ. (87214050433) 3018 RON
16 1 1 BLADE TENSIONER (81009010820) 5479 RON
17 1 1 PARALLEL PIN 10 h11X100 (86500087283) 1564 RON
18 1 1 BEARING SHAFT RD 25X170 UNTEN (81485046093) 13756 RON
19 1 1 BEARING SHAFT RD 21X64 (81485046107) 5926 RON
20 1 1 CRANK BAS450/500 ET (81009010161) 18341 RON
21 1 1 THRUST BEARING ET (81009010935) 3018 RON
22 1 1 THREADED BOLT WITH GEAR (81009008876) 13756 RON
24 1 1 TABLE INSERT RD 70X5 BREITER SCHLITZ (81381404419) 1340 RON
25 1 1 PILOT PIN 6,9X5,9X35 (81382052818) 781 RON
27 1 1 KNURLED THUMB NUT RD 62,5 M 8 (86241133255) 2124 RON
28 1 1 STARKNOB SCREW M 8X65 (DIN 558) VERZINKT (87001047374) 1564 RON
36 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
37 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
51 1 1 STARLOCK (87016050711) 446 RON
57 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100017703) 3689 RON
59 1 1 SPACER SLEEVE RD 11/8X70 VERZ. (86442084660) 105 RON
60 1 1 SHAFT COLLAR A 8 VERZ. (86410050461) 105 RON
70 1 1 TURNING TANG (87004017433) 1340 RON
75 1 1 THREE-ROLLER GUIDE SCHIEBEROHRPROFIL (81009018022) 2848 RON
76 1 1 THRUST BEARING, HEAVY-DUTY DREIROLLENF. (81009010951) 15993 RON
77 1 1 Clamping lever (87006072385) 2459 RON
78 1 1 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775) 781 RON
79 1 1 TABLE INSERT RD 70X5 SCHMALER SCHLITZ (81381404400) 1340 RON
82 1 1 BRUSH STRIP (89132081414) 3689 RON
84 1 1 TABLE TRUNNION, LOWER F?R MONTAGE M. SK (82380414301) 18341 RON
85 1 1 TABLE TRUNNION, UPPER F?R MONTAGE M. SK (82380414310) 18341 RON
87 1 1 FENCE EXTRUSION 450 MM (81393005307) 10288 RON
88 1 1 FENCE GUIDE 145X130X98 L?NGS (81380081896) 11519 RON
89 1 1 ADHESIVE LABEL WHITE/BLACK 270X195 SKALA (81141086363) 105 RON
90 1 1 BOLT GUIDE BL 1,5X22X60 (81382083667) 446 RON
91 1 1 GUIDE BRACKET BL 1,5X22X44 (81382002888) 446 RON
92 1 1 1482402816 - Indisponibil
94 1 1 PIN GUIDE SEAT FL 20X5X44 (81482071003) 105 RON
96 1 1 CONNECTOR RD 100 SPA 1000 (81381053489) 3018 RON
97 1 1 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115) 105 RON
98 1 1 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
99 1 1 Knurled nut (86241125058) 781 RON
100 1 1 Truss head screw (86110000659) 446 RON
101 1 1 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
102 1 1 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
103 1 1 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) 781 RON
105 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
106 1 1 Truss head screw (86110017942) 446 RON
107 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910) 446 RON
108 1 1 Washer (86300016322) Indisponibil Indisponibil
109 1 1 Washer (86305002486) 446 RON
110 1 1 Washer (86305002087) 446 RON
111 1 1 Serrated lock washer (86304001745) 446 RON
112 1 1 SPRING LOCK WASHER B 20 VERZ. (86301047329) 446 RON
113 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
114 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
115 1 1 HEXAGON THIN NUT (86205028046) 446 RON
117 1 1 CAP NUT M 8 VERZ. (86201002131) 446 RON
118 1 1 TENSION BRACKET (81009008833) 21361 RON
120 1 1 CUP SPRING (87053010088) 446 RON
121 1 1 CUP SPRING 31,5X16,3X1,75 (87053047380) 781 RON
122 1 1 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
123 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
126 1 1 CLAMPING SLEEVE 8X16 (86503050429) 446 RON
127 1 1 Hex head screw (86103001135) 446 RON
128 1 1 Hex nut (86200002219) 446 RON
129 1 1 1009008809 - Indisponibil
130 1 1 1009008817 - Indisponibil
131 1 1 7014121832 - Indisponibil
133 1 1 86172001848 - Indisponibil
134 1 1 Washer (86300016357) 446 RON
135 1 1 Thumb-nut (87005135529) 781 RON

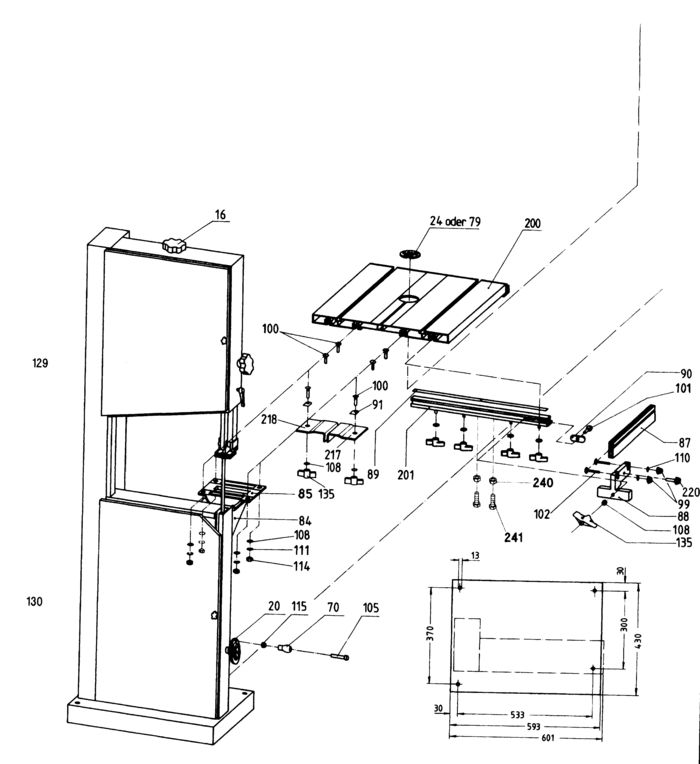

200 1 1 BANDSAW TABLE 3-TEILIG (81009138885) 197187 RON
201 1 1 1383115058 - Indisponibil
202 1 1 1383114485 - Indisponibil
203 1 1 HEXAGON THIN NUT (86205029131) 446 RON
205 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
210 1 1 1482402484 - Indisponibil
211 1 1 PIANO HINGE 0,8X40X200 BOHRG 4,2 MIT 4 L (87015074137) 1564 RON
212 1 1 Fillister head screw (86123002014) 446 RON
213 1 1 Serrated lock washer (86304084020) 446 RON
216 1 1 PIPE ADAPTOR (82380113662) 4249 RON
217 1 1 SAWBAND GUARD BL 2X96X130 OFFEN / RECHTS (81382404013) 1340 RON
218 1 1 SAWBAND GUARD BL 2X96X130 OFFEN /LINKS (81382131130) 1340 RON
220 1 1 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775) 781 RON
221 1 1 86172015687 - Indisponibil
222 1 1 SWITCH PLATE BD 2,50X92X230 ABSCHLIE?B. (81382411052) 5926 RON
223 1 1 SWITCH WNB ABSCHLIE?BAR (81009155712) 9821 RON
224 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
225 1 1 HEXAGON HEAD SCREW M 8X30 VERZ. (86103031271) 446 RON
226 1 1 GUIDE EXTRUSION (81380404164) 1564 RON
227 1 1 CUP SPRING (87053081619) 446 RON
228 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
229 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
233 1 1 1388403990 - Indisponibil

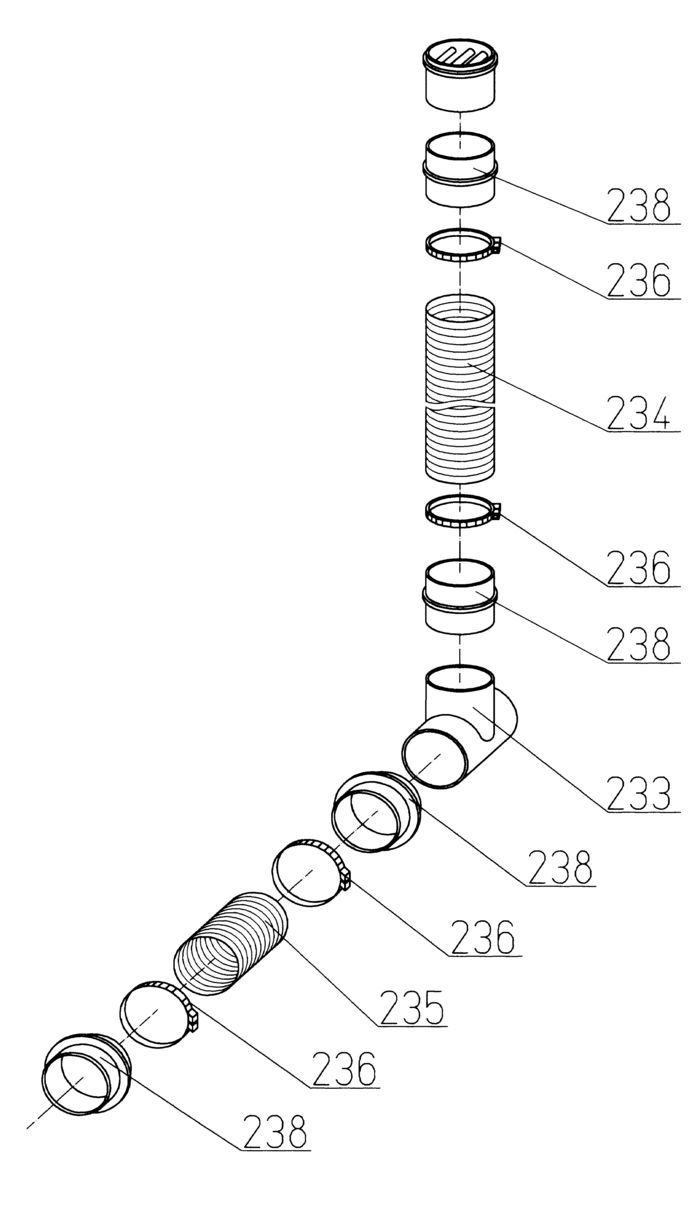

234 1 1 SPIRAL HOSE RD 100X680 M. KUNSTSTOFFSPIR (87854139333) 8275 RON
235 1 1 SPIRAL HOSE RD 100X200 M. KUNSTSTOFFSPIR (87854139341) 2459 RON
236 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
238 1 1 SLEEVE (81391006179) 3018 RON
240 1 1 Hex nut (86200002219) 446 RON
241 1 1 HEX. HEAD THREAD ROLLING SCREW M 6X20 VE (86143117357) 446 RON
7000 1 1 MOTOR, BANDSAW BAS 1,10 WNB 230/1/50 (81009008990) 197187 RON
7002 1 1 V-BELT SPZ 862 (87230047396) Indisponibil Indisponibil
7003 1 1 V-BELT SPZ 1562 (87230047400) Indisponibil Indisponibil
7004 1 1 1142414291 - Indisponibil
7005 1 1 PILOT PIN GUIDE (81009009570) 10288 RON
