Top » Piese de schimb » PIESE METABO » 0090035002 11

BAS 350 WN - 0090035002 11 - EU 230V
[0090035002 11]
BAS 350 WN - 0090035002 11 - EU 230V
Click pentru a mari
Imagini suplimentare
BAS 350 WN - 0090035002 11 - EU 230V
Click pentru a mari
BAS 350 WN - 0090035002 11 - EU 230V
Click pentru a mari
BAS 350 WN - 0090035002 11 - EU 230V
Click pentru a mari

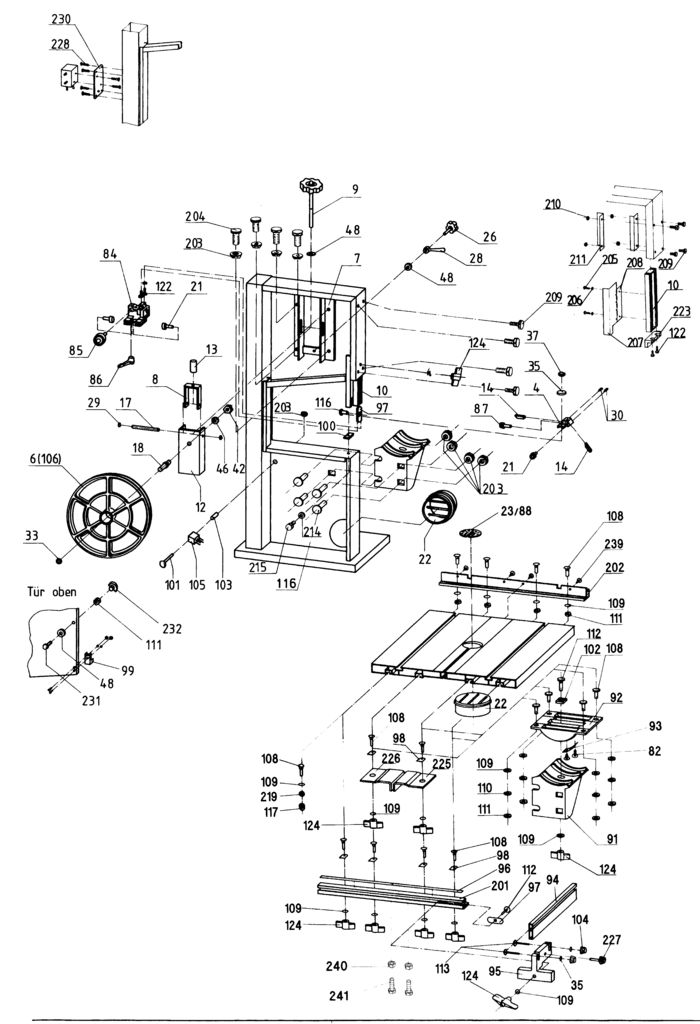

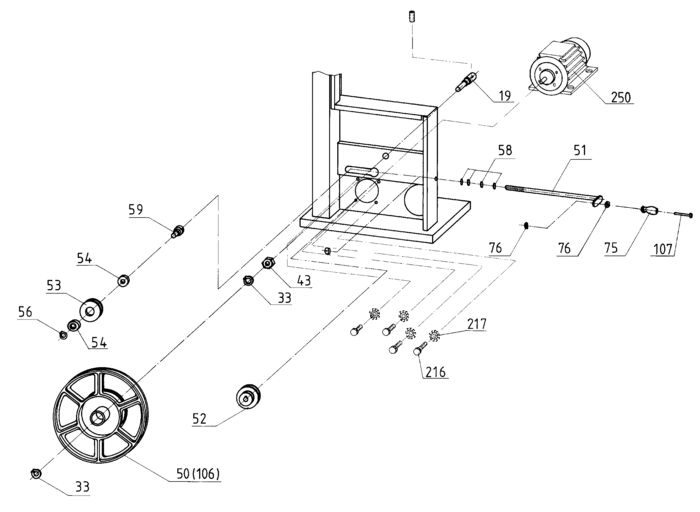

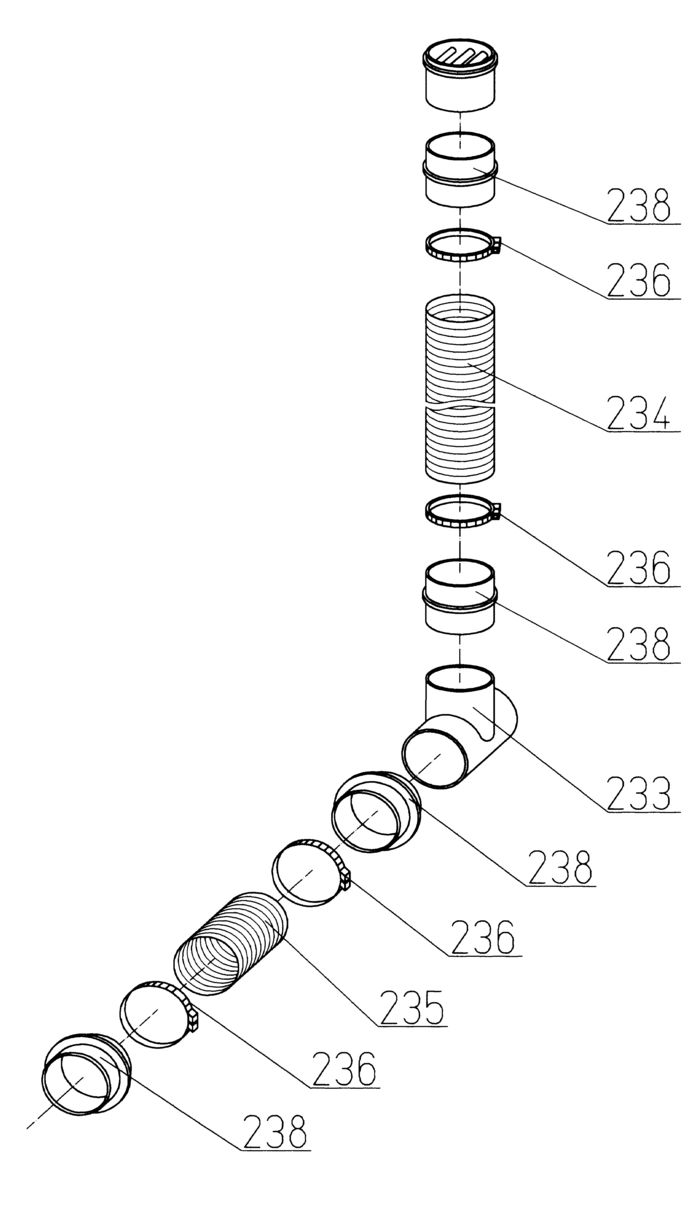

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
4 1 1 GUIDE SUPPORT (81380044990) 5926 RON
6 1 1 1380400096 - Indisponibil
7 1 1 1009010323 - Indisponibil
8 1 1 1382069052 - Indisponibil
9 1 1 BLADE TENSIONER (81009010820) 5479 RON
10 1 1 1383101855 - Indisponibil
12 1 1 ROLLER GUIDE BL 2,99X128X165 (81382051390) 2124 RON
13 1 1 SPACER SLEEVE RD 11/8,5X40 VERZ. (86442084635) 105 RON
14 1 1 PILOT PIN 6,9X5,9X35 (81382052818) 781 RON
17 1 1 PARALLEL PIN 10 h11X100 (86500087283) 1564 RON
18 1 1 BEARING SHAFT RD 21X75 ET (81485051453) 5926 RON
19 1 1 BEARING SHAFT RD 25X124 UNTEN (81485051518) 8275 RON
21 1 1 THRUST BEARING ET (81009010935) 3018 RON
22 1 1 CONNECTOR RD 100 SPA 1000 (81381053489) 3018 RON
23 1 1 TABLE INSERT RD 70X5 BREITER SCHLITZ (81381404419) 1340 RON
26 1 1 STARKNOB SCREW M 8X65 (DIN 558) VERZINKT (87001047374) 1564 RON
28 1 1 Thumb-nut (87005135529) 781 RON
29 1 1 STARLOCK (87016050711) 446 RON
30 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910) 446 RON
33 1 1 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
35 1 1 Washer (86305002087) 446 RON
37 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
42 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
43 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
46 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
48 1 1 Washer (86305002486) 446 RON
50 1 1 1380419412 - Indisponibil
51 1 1 1482072522 - Indisponibil
52 1 1 POLY-RIB PULLEY 4JX62 / RDA 62X47,5 RDI (87240419429) 18341 RON
53 1 1 TENSION ROLLER RD 35X28 (81485400180) 5479 RON
54 1 1 DEEP GROOVE BALL BEARING 12X28X8 6001-2Z (87100086764) 3689 RON
56 1 1 RETAINING RING FOR SHAFTS (86400009935) 446 RON
58 1 1 CUP SPRING (87053010088) 446 RON
59 1 1 SLIDING BOLT RD 30X47 (81485400172) 8275 RON
75 1 1 TURNING TANG (87004017433) 1340 RON
76 1 1 HEXAGON THIN NUT (86205028046) 446 RON
84 1 1 THREE-ROLLER GUIDE SCHIEBEROHRPROFIL (81009018022) 2848 RON
85 1 1 THRUST BEARING, HEAVY-DUTY DREIROLLENF. (81009010951) 15993 RON
86 1 1 Clamping lever (87006072385) 2459 RON
87 1 1 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144) 781 RON
88 1 1 TABLE INSERT RD 70X5 SCHMALER SCHLITZ (81381404400) 1340 RON
91 1 1 TABLE TRUNNION, LOWER F?R MONTAGE M. SK (82380414301) 18341 RON
92 1 1 TABLE TRUNNION, UPPER F?R MONTAGE M. SK (82380414310) 18341 RON
93 1 1 1142414291 - Indisponibil
94 1 1 FENCE EXTRUSION 450 MM (81393005307) 10288 RON
95 1 1 FENCE GUIDE 145X130X98 L?NGS (81380081896) 11519 RON
96 1 1 ADHESIVE LABEL WHITE/BLACK 270X195 SKALA (81141086363) 105 RON
97 1 1 BOLT GUIDE BL 1,5X22X60 (81382083667) 446 RON
98 1 1 GUIDE BRACKET BL 1,5X22X44 (81382002888) 446 RON
99 1 1 1482402816 - Indisponibil
100 1 1 PIN GUIDE SEAT FL 20X5X44 (81482071003) 105 RON
101 1 1 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) 781 RON
102 1 1 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115) 105 RON
103 1 1 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
104 1 1 Knurled nut (86241125058) 781 RON
105 1 1 BRUSH STRIP (89132081414) 3689 RON
106 1 1 BANDSAW TYRE 310X2,5X20 70 +/-5 SHORE cod vechi 7232055833 (344101930) 2459 RON
107 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
108 1 1 Truss head screw (86110000659) 446 RON
109 1 1 Washer (86300016322) Indisponibil Indisponibil
110 1 1 Serrated lock washer (86304001745) 446 RON
111 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
112 1 1 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
113 1 1 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
116 1 1 Truss head screw (86110017942) 446 RON
117 1 1 CAP NUT M 8 VERZ. (86201002131) 446 RON
122 1 1 Fillister head screw (86172001830) 446 RON
124 1 1 Thumb-nut (87005135529) 781 RON
201 1 1 1383115058 - Indisponibil
202 1 1 1383114485 - Indisponibil
203 1 1 Flange nut (6209110995) 446 RON
204 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
205 1 1 Fillister head screw (86123002014) 446 RON
206 1 1 MEDIUM WASHER (86300016330) 446 RON
207 1 1 SAWBAND GUARD BL 1,50X58X230 20 (81482402492) 3018 RON
208 1 1 7015082245 - Indisponibil
209 1 1 Hex head screw (86103015675) 446 RON
210 1 1 Flange nut (86209114230) 446 RON
211 1 1 1382051374 - Indisponibil
214 1 1 Washer (86305002087) 446 RON
215 1 1 Hex head screw (86103001135) 446 RON
216 1 1 Hex head screw (86103001127) 446 RON
217 1 1 Serrated lock washer (86304084047) 446 RON
219 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
223 1 1 PIPE ADAPTOR (82380113662) 4249 RON
225 1 1 SAWBAND GUARD BL 2X96X130 OFFEN / RECHTS (81382404013) 1340 RON
226 1 1 SAWBAND GUARD BL 2X96X130 OFFEN /LINKS (81382131130) 1340 RON
227 1 1 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775) 781 RON
231 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
232 1 1 7014121832 - Indisponibil
233 1 1 1388403990 - Indisponibil
234 1 1 SPIRAL HOSE RD 100X680 M. KUNSTSTOFFSPIR (87854139333) 8275 RON
235 1 1 SPIRAL HOSE RD 100X200 M. KUNSTSTOFFSPIR (87854139341) 2459 RON
236 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
238 1 1 SLEEVE (81391006179) 3018 RON
240 1 1 Hex nut (86200002219) 446 RON
241 1 1 HEX. HEAD THREAD ROLLING SCREW M 6X20 VE (86143117357) 446 RON
250 1 1 MOTOR, BANDSAW BAS 0,74 WNB 1X230 V (81009003602) 14839 RON
7000 1 1 POLY-RIB BELT 4 PJ 610 (87233190017) 5926 RON
7001 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100017703) 3689 RON
7002 1 1 1009010285 - Indisponibil
7003 1 1 1009010293 - Indisponibil
7004 1 1 PILOT PIN GUIDE (81009009570) 10288 RON
