Top » Piese de schimb » PIESE METABO » 0090131559 10

BAS 315/4 GDN 55 - 0090131559 10 - 3 / 400V/50Hz
[0090131559 10]
BAS 315/4 GDN 55 - 0090131559 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
BAS 315/4 GDN 55 - 0090131559 10 - 3 / 400V/50Hz
Click pentru a mari
BAS 315/4 GDN 55 - 0090131559 10 - 3 / 400V/50Hz
Click pentru a mari

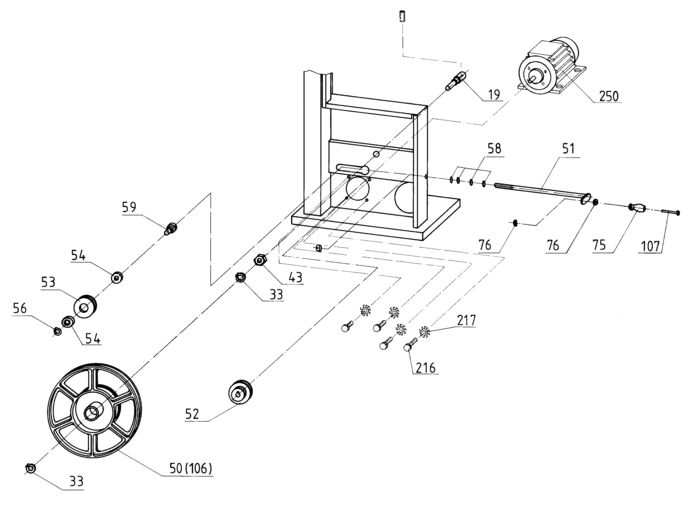

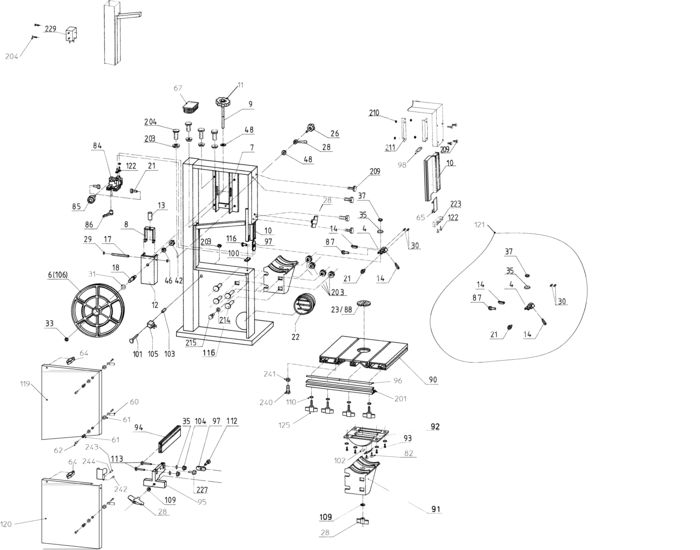

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
4 1 1 GUIDE SUPPORT (81380044990) 5926 RON
6 1 1 BANDSAW WHEEL, UPPER (81380421360) 34448 RON
7 1 1 1009010323 - Indisponibil
8 1 1 TENSION BRACKET FL 25X5X175 (81382421333) 3689 RON
9 1 1 BLADE TENSIONER (81009010820) 5479 RON
10 1 1 BLADE GUIDE TUBE EXTRUSION 360 MM (81383421370) 19236 RON
11 1 1 KNURLED THUMB NUT RD 62,5 M 8 (86241133255) 2124 RON
12 1 1 ROLLER GUIDE BL 2,99X128X165 (81382051390) 2124 RON
13 1 1 SPACER SLEEVE RD 11/8,5X40 VERZ. (86442084635) 105 RON
14 1 1 PILOT PIN 6,9X5,9X35 (81382052818) 781 RON
17 1 1 PARALLEL PIN 10 h11X100 (86500087283) 1564 RON
18 1 1 BEARING SHAFT RD 21X75 ET (81485051453) 5926 RON
19 1 1 BEARING SHAFT RD 25X124 UNTEN (81485051518) 8275 RON
21 1 1 THRUST BEARING ET (81009010935) 3018 RON
22 1 1 CONNECTOR RD 100 SPA 1000 (81381053489) 3018 RON
23 1 1 TABLE INSERT RD 70X5 SCHMALER SCHLITZ (81381404400) 1340 RON
26 1 1 STARKNOB SCREW M 8X65 (DIN 558) VERZINKT (87001047374) 1564 RON
28 1 1 Thumb-nut (87005135529) 781 RON
29 1 1 STARLOCK (87016050711) 446 RON
30 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910) 446 RON
31 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100047254) 3689 RON
33 1 1 RETAINING RING FOR SHAFTS 17X1 (86400047357) 446 RON
35 1 1 Washer (86305002087) 446 RON
37 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
42 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
43 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
46 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
48 1 1 Washer (86305002486) 446 RON
50 1 1 BANDSAW WHEEL, LOWER (81380421352) 49212 RON
51 1 1 1482072522 - Indisponibil
52 1 1 POLY-RIB PULLEY 4JX62 / RDA 62X47,5 RDI (87240419429) 18341 RON
53 1 1 TENSION ROLLER RD 35X28 (81485400180) 5479 RON
54 1 1 DEEP GROOVE BALL BEARING 12X28X8 6001-2Z (87100086764) 3689 RON
56 1 1 RETAINING RING FOR SHAFTS (86400009935) 446 RON
58 1 1 CUP SPRING (87053010088) 446 RON
59 1 1 SLIDING BOLT RD 30X47 (81485400172) 8275 RON
60 1 1 LATCH SCHMAL (87014140071) 1564 RON
61 1 1 7014074168 - Indisponibil
62 1 1 7014198568 - Indisponibil
64 1 1 LEAF SPRING (87052215689) 1564 RON
65 1 1 LATERAL SLIDE 45X95 (81381421259) 781 RON
67 1 1 LAMELLAR PLUG 100X60X3,2 VL SCHWARZ (81381144590) 1564 RON
75 1 1 TURNING TANG (87004017433) 1340 RON
76 1 1 HEXAGON THIN NUT (86205028046) 446 RON
82 1 1 Fillister head screw (86172028215) 446 RON
84 1 1 THREE-ROLLER GUIDE SCHIEBEROHRPROFIL (81009018022) 2848 RON
85 1 1 THRUST BEARING, HEAVY-DUTY DREIROLLENF. (81009010951) 15993 RON
86 1 1 Clamping lever (87006072385) 2459 RON
87 1 1 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144) 781 RON
88 1 1 TABLE INSERT RD 70X5 BREITER SCHLITZ (81381404419) 1340 RON
90 1 1 BANDSAW TABLE 400X548 ET (81380421212) 14839 RON
91 1 1 TABLE TRUNNION, LOWER F?R MONTAGE M. SK (82380414301) 18341 RON
92 1 1 TABLE TRUNNION, UPPER F?R MONTAGE M. SK (82380414310) 18341 RON
93 1 1 1142414291 - Indisponibil
94 1 1 FENCE EXTRUSION 450 MM (81393005307) 10288 RON
95 1 1 FENCE GUIDE 145X130X98 L?NGS (81380081896) 11519 RON
96 1 1 ADHESIVE LABEL WHITE/BLACK 270X195 SKALA (81141086363) 105 RON
97 1 1 BOLT GUIDE BL 1,5X22X60 (81382083667) 446 RON
98 1 1 GUIDE PLATE BL 2X16X53,5 (81382421341) 1340 RON
100 1 1 PIN GUIDE SEAT FL 20X5X44 (81482071003) 105 RON
101 1 1 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) 781 RON
102 1 1 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115) 105 RON
103 1 1 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
104 1 1 Knurled nut (86241125058) 781 RON
105 1 1 BRUSH STRIP (89132081414) 3689 RON
106 1 1 BANDSAW TYRE 310X2,5X20 70 +/-5 SHORE cod vechi 7232055833 (344101930) 2459 RON
107 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
109 1 1 Washer (86300016322) Indisponibil Indisponibil
110 1 1 Serrated lock washer (86304001745) 446 RON
112 1 1 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
113 1 1 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
116 1 1 Truss head screw (86110017942) 446 RON
119 1 1 1009421285 - Indisponibil
120 1 1 1009421307 - Indisponibil
121 1 1 PILOT PIN GUIDE (81009009570) 10288 RON
122 1 1 Fillister head screw (86172001830) 446 RON
125 1 1 THUMB SCREW RED M 8X18 (86150421509) 105 RON
201 1 1 GUIDE EXTRUSION 548 MM (81383421388) 30980 RON
203 1 1 Flange nut (6209110995) 446 RON
204 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
209 1 1 Hex head screw (86103015675) 446 RON
210 1 1 Flange nut (86209114230) 446 RON
211 1 1 GUIDE BRACKET BL 1,50X25,0X135,0 (81382421260) 2124 RON
214 1 1 Washer (86305002087) 446 RON
215 1 1 Hex head screw (86103001135) 446 RON
216 1 1 Hex head screw (86103001127) 446 RON
217 1 1 Serrated lock washer (86304084047) 446 RON
223 1 1 PIPE ADAPTOR (82380113662) 4249 RON
227 1 1 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775) 781 RON
229 1 1 SWITCH SSK DN UC400V K600 (88132004405) 41718 RON
240 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
241 1 1 Flange nut (6209110995) 446 RON
242 1 1 SLOTTED CHEESE HEAD SCREW M 4X10 VERZ. (86120000029) 446 RON
243 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
244 1 1 MEDIUM WASHER (86300016330) 446 RON
250 1 1 MOTOR, BANDSAW BAS 0,74 DN 3X230/400 V (81009003793) 127394 RON
7000 1 1 POLY-RIB BELT 4 PJ 610 (87233190017) 5926 RON
7001 1 1 SAWBAND GUARD BL 1,50X94X62 (81382421317) 3689 RON
