BAS 250 G - 0090025038 10 - GB 230V
[0090025038 10]
BAS 250 G - 0090025038 10 - GB 230V
Click pentru a mari
Imagini suplimentare
BAS 250 G - 0090025038 10 - GB 230V
Click pentru a mari
BAS 250 G - 0090025038 10 - GB 230V
Click pentru a mari

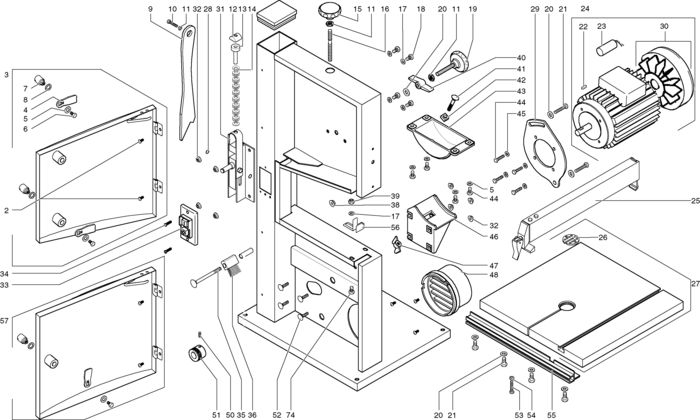

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 4 RAISED CHEESE HEAD SCREW (86123022619) 446 RON
3 1 1 DOOR, UPPER ET (81382680770) 11519 RON
4 1 2 LATCH SCHMAL (87014140071) 1564 RON
5 1 7 Serrated lock washer (86304084047) 446 RON
6 1 2 HEXAGON HEAD SCREW M 6X10 VERZ.FLECKBESC (86103041013) 446 RON
7 1 3 7014681129 - Indisponibil
8 1 3 SHIM RING 10X16X1 VERZ. (86306002170) Indisponibil Indisponibil
9 1 1 Push stick (81394201630) 3018 RON
10 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
11 1 4 HEXAGON NUT (86200002235) Indisponibil Indisponibil
12 1 1 THREADED PIECE M8 ET (81382680860) 781 RON
13 1 1 1385680879 - Indisponibil
15 1 2 KNURLED THUMB NUT RD 62,5 M 8 (86241133255) 2124 RON
16 1 1 TENSION BOLT M8X100 ET (81385680844) 105 RON
17 1 5 Washer Washer cod vechi 86300016365 (141151940) 446 RON
18 1 4 Hex head screw (86103001127) 446 RON
19 1 1 STARKNOB SCREW M 8X40 RD 35 VERZINKT (87001087619) 190 RON
20 1 10 Washer (86300016322) Indisponibil Indisponibil
21 1 6 Hex head screw (86103001178) Indisponibil Indisponibil
22 1 1 Parallel key (86721074089) 446 RON
23 1 1 CAPACITOR 10uF/400V 36X72 BOLZEN M 8 KAB (88050133045) 7157 RON
24 1 1 MOTOR 230V ET (81009681090) 88582 RON
25 1 1 RIP FENCE ASSEMBLY ET (81009681147) 15993 RON
26 1 1 TABLE INSERT RD 38X3,5 ET (81381680920) 446 RON
27 1 1 BANDSAW TABLE 340X345 ET (81380680935) 41718 RON
28 1 2 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
29 1 1 TENSION PLATE ET (81382686850) 3689 RON
30 1 1 FAN WING+FAN COVER BAS 260 ET (81009726507) 3018 RON
31 1 1 BEARING SHAFT ET (81385680801) 3018 RON
32 1 8 Flange nut (86209114230) 446 RON
33 1 1 SWITCH ET (81009680833) 5926 RON
34 1 2 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
35 1 1 Truss head screw (86110000667) 781 RON
36 1 1 BRUSH STRIP (89132081414) 3689 RON
38 1 1 Flange nut (6209110995) 446 RON
39 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
40 1 1 Thumb-nut (87005135529) 781 RON
41 1 1 Truss head screw (86110076574) 446 RON
42 1 1 GLIDE SEGMENT ET (81381680947) Indisponibil Indisponibil
43 1 1 TABLE TRUNNION, UPPER ET (81380680951) 488 RON
44 1 8 Hex head screw (86103015675) 446 RON
45 1 4 Serrated lock washer (86304084047) 446 RON
46 1 1 TABLE SUPPORT ET (81380680889) 3689 RON
47 1 1 STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT (87000025458) 781 RON
48 1 1 CONNECTOR RD 100 SPA 1000 (81381053489) 3018 RON
50 1 8 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910) 446 RON
51 1 1 POLY-RIB PULLEY ET (81385681077) 3018 RON
52 1 4 CUP SQUARE NECK SCREW (86110000594) 446 RON
53 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
54 1 5 Hex nut (86200002219) 446 RON
55 1 1 GUIDE EXTRUSION 340MM ET (81383681002) 955 RON
56 1 1 SAWBAND GUARD ET (81382680894) 105 RON
57 1 1 DOOR, LOWER ET (81382680789) 10288 RON
70 1 2 BANDSAW TYRE ET (87232680916) 1564 RON
71 1 2 RETAINING RING FOR SHAFTS 10X1 VERZ. (86400047349) 446 RON
72 1 1 BANDSAW WHEEL, UPPER ET (81380680790) 13756 RON
73 1 4 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
74 1 6 Hex head screw (86103001135) 446 RON
75 1 1 BEARING SHAFT ET (81385681085) 2459 RON
76 1 1 BLADE GUIDE TUBE EXTRUSION (81383680960) 10288 RON
77 1 1 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144) 781 RON
78 1 2 Washer (86305002087) 446 RON
80 1 2 PILOT PIN 6,9X5,9X35 (81382052818) 781 RON
81 1 4 THRUST BEARING ET (81009686866) 190 RON
82 1 1 PIN GUIDE ASSEMBLY ET (81009686874) 7157 RON
84 1 1 BANDSAW WHEEL, LOWER ET (81380681044) 13756 RON
86 1 1 FLAT BELT ET (87232681068) Indisponibil Indisponibil
87 1 1 HEXAGON THIN NUT (86205088367) 446 RON
89 1 1 1381680998 - Indisponibil
90 1 1 GUIDE PIECE ET (81381681021) 781 RON
91 1 4 86172065544 - Indisponibil
92 1 1 SHAFT WITH GEARWHEEL ET (81388681035) 781 RON
93 1 1 STARKNOB ET (81381681013) 781 RON
97 1 1 SEAT, THREE-ROLLER GUIDE ET (81380680978) 3018 RON
98 1 2 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
99 1 1 THREE-ROLLER GUIDE ASSEMBLY ET (81009681139) 11519 RON
