Top » Piese de schimb » PIESE METABO » 00375000

BAE 75 - 00375000 - EU 230V
[00375000]
BAE 75 - 00375000 - EU 230V
Click pentru a mari
Imagini suplimentare
BAE 75 - 00375000 - EU 230V
Click pentru a mari

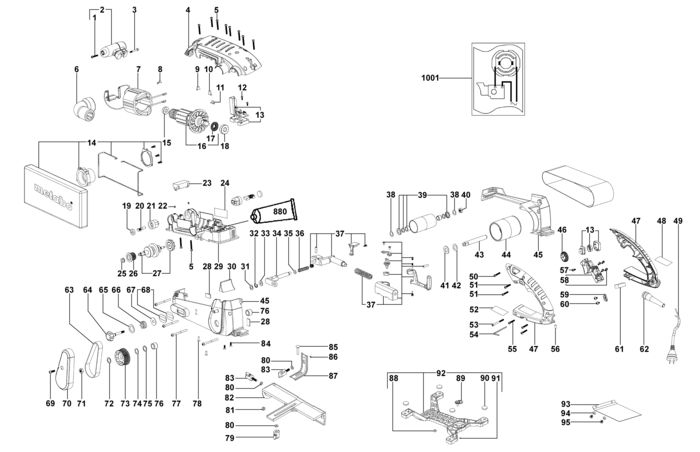

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Fillister head screw (141123690) 446 RON
2 1 1 Side support handle compl. (316044330) Indisponibil Indisponibil
3 1 1 Cap screw (141123700) 446 RON
4 1 1 Motor housing cover (343397370) 955 RON
5 1 10 Fillister head screw (141123730) 446 RON
6 1 1 Adaptor (344098610) Indisponibil Indisponibil
7 1 1 Field coil compl.,230V (311011060) 59166 RON
8 1 1 Rubber stopper 1 (343397410) 446 RON
9 1 1 Rubber stopper 2 (343397420) 446 RON
10 1 1 Rubber stopper 3 (343397430) 446 RON
11 1 1 Rubber stopper 4 (343397440) 446 RON
12 1 2 Fillister head screw (141110460) 446 RON
13 1 1 Electronic unit (343081750) 59166 RON
14 1 1 Dust bag cpl. (316044120) 5926 RON
15 1 1 176112160 - Indisponibil
16 1 1 Armature compl.,230V (310009580) 68673 RON
17 1 1 Sealing washer (343397460) 446 RON
18 1 1 Ball bearing, 12x28x8 (143114800) 5479 RON
19 1 2 Brush holder (343397480) 1340 RON
20 1 2 Carbon brush set (316044100) Indisponibil Indisponibil
21 1 2 Brush holder cpl. (316044110) 4249 RON
22 1 2 Grub screw 3x5 TX8 (341704360) 446 RON
23 1 1 Cover (343397470) 669 RON
24 1 1 Rating plate (338121670) 446 RON
25 1 1 Clamping nut M8 (341032040) 446 RON
26 1 1 Belt pulley small (341201030) 3689 RON
27 1 1 Drive shaft compl. (316044130) 26730 RON
28 1 2 Butting plate (343380320) 446 RON
29 1 1 Motor housing (343397380) 8275 RON
30 1 1 Handle (343397450) 446 RON
31 1 1 Washer 9x17x0,5 (339007230) 446 RON
32 1 1 141123830 - Indisponibil
33 1 1 Washer 7/64x5/8x1/16 (339007260) 446 RON
34 1 1 Shaft (341540180) 7157 RON
35 1 1 Washer (141152070) 446 RON
36 1 1 Pressure spring (342003600) 446 RON
37 1 1 316044140 - Indisponibil
38 1 2 Washer 10,2 X 14,8X 0,5 (141153920) 446 RON
39 1 1 Roller compl. (316044300) 15993 RON
40 1 1 Hex nut w.flange,M8x1,25 (341102170) 446 RON
41 1 1 Felt ring,12x22x2 (143115210) 446 RON
42 1 1 Washer 12x24x0,4 (339007270) 446 RON
43 1 1 Spindle (341147940) 4249 RON
44 1 1 Roller compl. (316044310) 18341 RON
45 1 1 Housing cover (315417190) 4442 RON
46 1 1 Selector (343397560) 1340 RON
47 1 1 Handle 2 part (343397400) 955 RON
48 1 1 399999990 - Indisponibil
49 1 1 Cable with Cee-Stecker (344497890) 11519 RON
50 1 1 Fillister head screw (141123770) 446 RON
51 1 2 Fillister head screw (141123780) 446 RON
52 1 1 Rating plate (338052160) 446 RON
53 1 1 Fillister head screw (141123790) 446 RON
54 1 1 Hexagonal key (344161540) 781 RON
55 1 3 Fillister head screw (141123690) 446 RON
56 1 1 Rubber plug 5x10,2 (344098590) 446 RON
57 1 1 Fillister head screw (141123710) 446 RON
58 1 1 Switch (343408970) 18341 RON
59 1 1 Cable clip (339134160) 446 RON
60 1 2 Fillister head screw (141123720) 446 RON
61 1 1 Condenser (343254540) 190 RON
62 1 1 Cable sleeve (344101140) 105 RON
63 1 1 Toothed belt S5M285 (344260310) Indisponibil Indisponibil
64 1 1 Adjusting screw (341704370) 190 RON
65 1 1 Washer 16,2x20x0,5 (339007200) 446 RON
66 1 1 Pressure spring (342003590) 669 RON
67 1 1 Washer 8,5x24x0,5 (339007220) 446 RON
68 1 1 guide sheet (339134150) 669 RON
69 1 1 Fillister head screw (141123800) 446 RON
70 1 1 Belt guard (343397390) 1564 RON
71 1 1 Hexagonal nut (141131010) 446 RON
72 1 1 Washer 8,4x18x0,5 (339007250) 446 RON
73 1 1 Belt pulley (341201040) 4249 RON
74 1 1 wave washer (143115220) 446 RON
75 1 1 Washer 12x19x0,5 (339007240) 446 RON
76 1 2 Needle sleeve (143115200) 190 RON
77 1 4 Fillister head screw (141123740) 446 RON
78 1 2 Fillister head screw (141119860) 781 RON
79 1 1 Thumb-nut (341102180) 105 RON
80 1 3 Washer (339011790) 446 RON
81 1 1 Hex nut M 6x4,5 (341102190) 446 RON
82 1 1 Shoe ass`y (316044340) 18341 RON
83 1 2 Thumbscrew (341704460) 105 RON
84 1 2 Fillister head screw (141123760) 446 RON
85 1 1 Fillister head screw (141123810) 446 RON
86 1 1 O-ring (143190060) 446 RON
87 1 1 Angle (339134220) 3689 RON
88 1 2 Rubber plug (344098620) 446 RON
89 1 1 Screw (341704450) 105 RON
90 1 4 Rubber foot (339040960) 446 RON
91 1 1 O-ring (143195250) 446 RON
92 1 1 Foot compl. (316044320) 18341 RON
93 1 1 Sliding sheet cpl. (341148030) Indisponibil Indisponibil
94 1 2 Spring washer (141150260) Indisponibil Indisponibil
95 1 2 Fillister head screw (141122220) Indisponibil Indisponibil
1001 1 1 338504910 - Indisponibil
