Top » Piese de schimb » PIESE METABO » 02269000

ASE 18 LTX - 02269000 - -
[02269000]
ASE 18 LTX - 02269000 - -
Click pentru a mari
Imagini suplimentare
ASE 18 LTX - 02269000 - -
Click pentru a mari

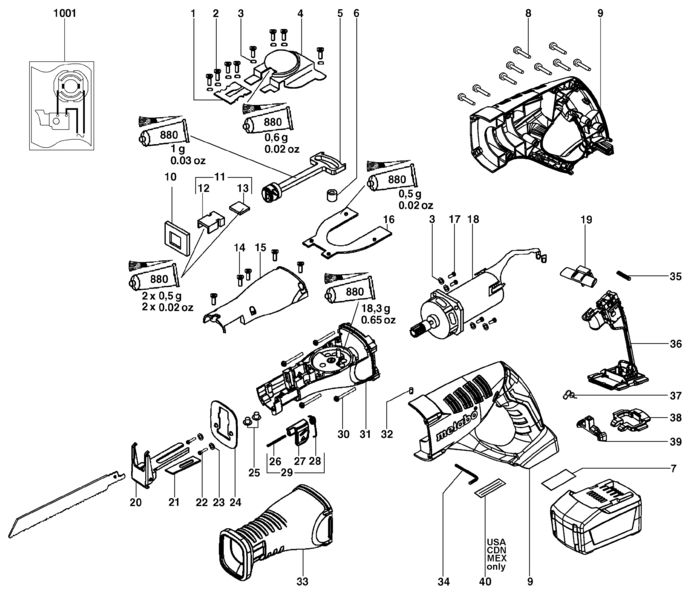

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Sheet Cover 2 (339132670) 1564 RON
2 1 8 Fillister head screw (141110540) 446 RON
3 1 12 Washer (339006850) 446 RON
4 1 1 Sheet Cover 1 (339132660) 4249 RON
5 1 1 Sliding rod & blade clamp ass`y (316039180) 33553 RON
6 1 1 Needle bearing (320050580) 3689 RON
7 1 1 Rating plate (338052170) 446 RON
8 1 9 Self-tap. fill. h. screw (141116800) 446 RON
9 1 1 Motor housing (343395770) 15993 RON
10 1 1 Seal felt (344070860) 446 RON
11 1 1 Guide cpl. (316039160) 8275 RON
12 1 1 Guide block top (341070410) 1564 RON
13 1 1 Guide block lower (341070420) 105 RON
14 1 5 Fillister head screw (141115950) 446 RON
15 1 1 Gear-box cover (343391860) 4249 RON
16 1 1 Yoke plate (339132650) 3689 RON
17 1 4 Srew (341703990) 446 RON
18 1 1 316039210 - Indisponibil
19 1 1 Switch-on lock (343397350) 669 RON
20 1 1 Shoe ass`y (316039230) Indisponibil Indisponibil
21 1 1 Guide locking plate (339132620) 190 RON
22 1 2 Srew (341703980) 446 RON
23 1 2 Spring washer (342022020) 446 RON
24 1 1 Guiding plate (339132630) 2459 RON
25 1 2 Screw (341704020) 781 RON
26 1 1 Tigthening pin (341520120) 446 RON
27 1 1 Lever (343391870) 105 RON
28 1 1 Spring left (342021990) 446 RON
29 1 1 Lever ass`y (316039150) Indisponibil Indisponibil
30 1 4 Fillister head screw plastite 4.0X25 (341703960) 781 RON
31 1 1 Gear Cover (316039140) 78180 RON
32 1 1 Rubber plug (344097270) 446 RON
33 1 1 Rubber boot (344097260) 7157 RON
34 1 1 Cranked wrench key (344161520) 781 RON
35 1 1 Pressure spring (342003310) 446 RON
36 1 1 Electronic switch,DC 18V (343408800) 3698 RON
37 1 1 Spring clip (342021670) 446 RON
38 1 1 Switch slide (343394790) 446 RON
39 1 1 Pressure plate (343394770) 446 RON
40 1 1 Warning Label serial 40x14 (338121750) 446 RON
880 1 1 Grease SGF 079 (344130270) 2459 RON
1001 1 1 338504870 - Indisponibil
