Top » Piese de schimb » PIESE METABO » 02203000

AHS 36-65 V - 02203000 - -
[02203000]
AHS 36-65 V - 02203000 - -
Click pentru a mari
Imagini suplimentare
AHS 36-65 V - 02203000 - -
Click pentru a mari

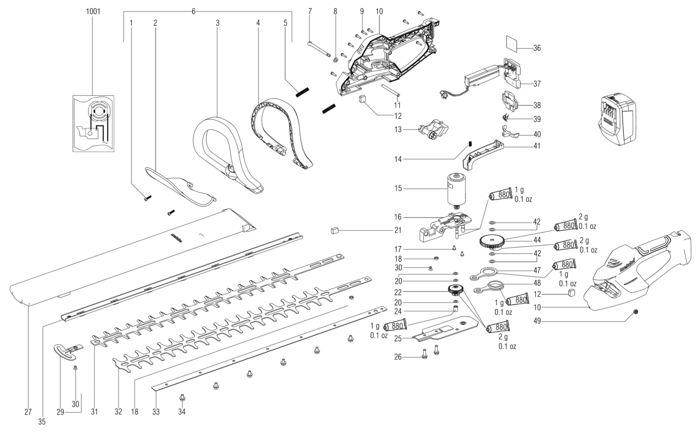

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Self-tap. fill. h. screw (141118730) 446 RON
2 1 1 Hand guard (343399930) 2124 RON
3 1 1 Loop handle (343395350) 5926 RON
4 1 1 shift strap (343395360) 3018 RON
5 1 2 Pressure spring (342001180) 446 RON
6 1 1 loop handle (316048490) 13756 RON
7 1 1 Fitting screw (341704290) 446 RON
8 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
9 1 9 Self-tap. fill. h. screw (141113180) 446 RON
10 1 1 Housing 2-part,gummed (343399640) 18341 RON
11 1 1 Pressure pin (341055110) 446 RON
12 1 2 Felt seal (344070660) 446 RON
13 1 1 Shift fork (343399630) 669 RON
14 1 1 Pressure spring (342002440) 446 RON
15 1 1 Motor,36 V (317003930) 26730 RON
16 1 1 Bearing support compl. (316048500) 19236 RON
17 1 2 Fillister head screw (141119850) 446 RON
18 1 2 Spacer bush (341060030) 781 RON
20 1 3 Washer (141152070) 446 RON
21 1 1 Foam rubber (344099060) 446 RON
22 1 1 Pinion compl. (316047800) 8275 RON
24 1 1 Spacer sleeve (341013140) 781 RON
25 1 1 Cover (339134890) 5479 RON
26 1 2 Hexagon head screw (141119780) 781 RON
27 1 1 Storage container (343391520) 4249 RON
29 1 1 Hand protector cpl (316027170) 5479 RON
30 1 2 Countersunk screw (141121710) 446 RON
31 1 1 Upper blade (344163060) 21361 RON
32 1 1 Untermesser vollst. (344163800) 955 RON
33 1 1 Pressure strip (339135030) 3689 RON
34 1 6 Hexagon head screw (141120210) 446 RON
35 1 1 Knife compl. (316049100) 3698 RON
36 1 1 Rating plate (338056070) 446 RON
37 1 1 Electronic unit,36 V (343082300) 3698 RON
38 1 1 Switch slide (343394790) 446 RON
39 1 1 Spring clip (342021670) 446 RON
40 1 1 Pressure plate (343394770) 446 RON
41 1 1 Switch trigger (343399620) 105 RON
42 1 4 Washer (141152400) 446 RON
44 1 1 Spur gear (340004170) 10288 RON
47 1 1 Con rod (339132380) 2459 RON
48 1 1 Con rod (339132370) 2459 RON
49 1 1 Hexagonal lock nut (141130650) 781 RON
1001 1 1 338505410 - Indisponibil
