Top » Piese de schimb » PIESE METABO » 03102000

ADH 310 D - 03102000 - 3 / 400V/50Hz
[03102000]
ADH 310 D - 03102000 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
ADH 310 D - 03102000 - 3 / 400V/50Hz
Click pentru a mari
ADH 310 D - 03102000 - 3 / 400V/50Hz
Click pentru a mari
ADH 310 D - 03102000 - 3 / 400V/50Hz
Click pentru a mari

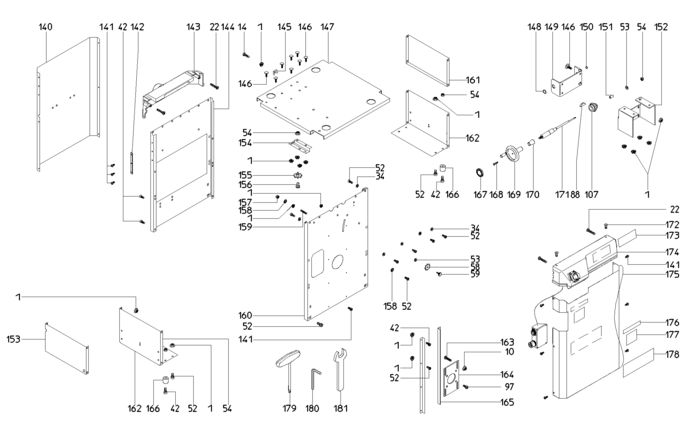

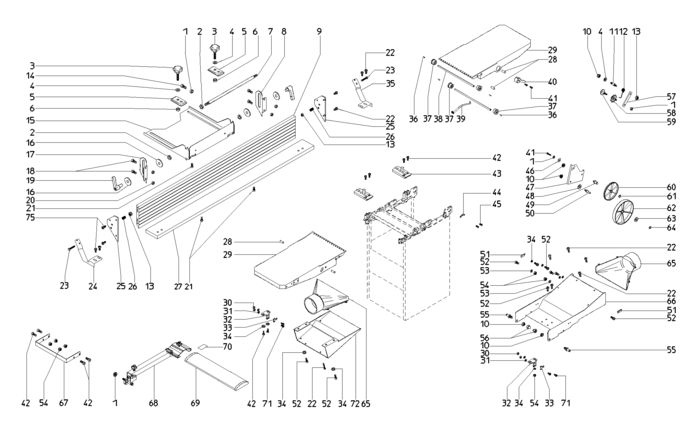

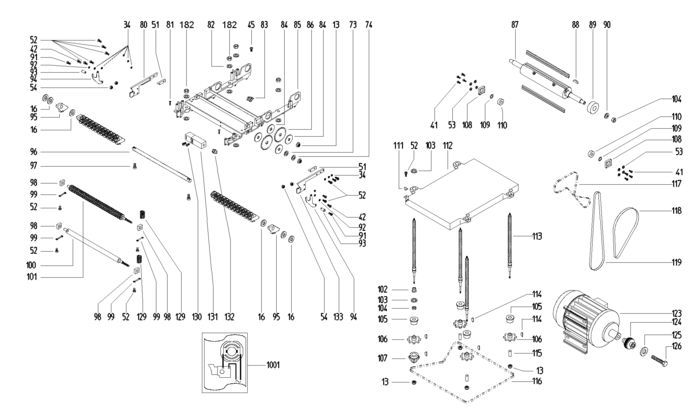

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 50 341101870 - Indisponibil
2 1 4 Plain hexagon nut (141131160) 446 RON
3 1 2 Star grip M8x23 (341112430) 5926 RON
4 1 3 Washer (141150810) 446 RON
5 1 2 339129880 - Indisponibil
6 1 2 O-RING 5,23X2,62 (344096010) 446 RON
7 1 1 Guide rod (341056260) 18341 RON
8 1 1 ANGLE BRACKET BL 2,99X79 (339129910) 3689 RON
9 1 1 FENCE EXTRUSION 1100 MM (341147110) 46975 RON
10 1 9 Nut M 8 (341101850) 446 RON
11 1 1 Bolt chain tightener (341056220) 4249 RON
12 1 1 TORSION SPRING (342021710) 1340 RON
13 1 9 Hexagonal lock nut (141130950) 446 RON
14 1 3 Hexagon head screw (141116240) 781 RON
15 1 1 Guide plate (339129870) 34448 RON
16 1 40 Washer (141150050) 446 RON
17 1 1 ANGLE BRACKET BL 2,99X79 (339129890) 3018 RON
18 1 4 Hexagon head screw (141110310) 446 RON
19 1 2 Clamping lever (341111940) 7157 RON
20 1 4 Square nut (141131020) 781 RON
21 1 14 343375980 - Indisponibil
22 1 12 Fill. head screw(DIN 7985) (141121640) 446 RON
23 1 2 Cheese-head screw (141114020) 446 RON
24 1 1 Swivel plate (339129990) 2124 RON
25 1 2 Guide cover (343376610) 15993 RON
26 1 2 342002880 - Indisponibil
27 1 1 Butting strip (341147260) 2848 RON
28 1 6 Pin (141163810) 446 RON
29 1 2 Planing table (315415100) 14839 RON
30 1 4 Hexagonal nut (141130070) 446 RON
31 1 4 Washer (141150010) 446 RON
32 1 2 339129830 - Indisponibil
33 1 1 315415390 - Indisponibil
34 1 35 Washer (141150130) 446 RON
35 1 1 Swivel plate (339129980) 2124 RON
36 1 4 Spring pin (141162580) 446 RON
37 1 4 Excentric (341056280) 13756 RON
38 1 2 Sindle excenter (341056190) 11519 RON
39 1 1 Flat spring (342050730) 4249 RON
40 1 1 Adjusting lever (315415160) 4249 RON
41 1 11 Cap screw (141113890) 781 RON
42 1 18 Cap screw (141113850) 781 RON
43 1 2 315415090 - Indisponibil
44 1 1 Scale (338115690) 105 RON
45 1 3 Self-tap. fill. h. screw (141116130) 446 RON
46 1 1 CAGE NUT M 6 (341101920) 446 RON
47 1 1 Gear base plate (339130450) 7157 RON
48 1 1 Washer (141150150) 781 RON
49 1 1 Gear spindle (341056310) 5479 RON
50 1 1 Spindle flat belt pulley (341056210) 8275 RON
51 1 4 Locking block (341147060) 1564 RON
52 1 72 Cap screw (141113840) 781 RON
53 1 12 Washer Washer cod vechi 86300016365 (141151940) 446 RON
54 1 18 Hexagonal lock nut (141130650) 781 RON
55 1 2 341056450 - Indisponibil
56 1 2 Cap nut (141131850) 446 RON
57 1 1 CHAIN TENSIONER FL 20X4X90 (339129850) 105 RON
58 1 2 341147070 - Indisponibil
59 1 2 THREADED BOLT RD 14X20 1 (341056330) 105 RON
60 1 1 343375930 - Indisponibil
61 1 1 RETAINING RING (141180060) 446 RON
62 1 1 343375940 - Indisponibil
63 1 1 Shim (141155700) 446 RON
64 1 1 Retaining ring (141180100) 781 RON
65 1 2 343375920 - Indisponibil
66 1 1 Chip cover (339129820) 34448 RON
67 1 1 Clamping rail (339130870) 13756 RON
68 1 1 CUTTERBLOCK GUARD 440 MM (316031390) 88582 RON
69 1 1 CUTTER GUARD, STANDARD 88X440 (341147050) 24046 RON
70 1 1 ADHESIVE LABEL BLACK/SILVER 50X15 (338116340) 446 RON
71 1 4 Fillister head screw (141113200) 446 RON
72 1 1 339129840 - Indisponibil
73 1 1 342050760 - Indisponibil
74 1 1 341056840 - Indisponibil
75 1 4 Self-tap. fill. h. screw (141122870) 446 RON
80 1 1 339129930 - Indisponibil
81 1 4 Countersunk screw (141114670) 781 RON
82 1 4 341056850 - Indisponibil
83 1 1 Cable clip (339130860) 446 RON
84 1 4 Coupling disc (339130010) 781 RON
85 1 1 Knife holder support (315415140) 220451 RON
86 1 2 343375970 - Indisponibil
87 1 1 Knife carrier (341603750) 343820 RON
88 1 3 Pring washer (141155710) 446 RON
89 1 1 341056240 - Indisponibil
90 1 1 Washer (141152090) 446 RON
91 1 2 Cap screw (141113940) 446 RON
92 1 2 141155660 - Indisponibil
93 1 2 TURNING TANG RD 20X45 (341056710) 105 RON
94 1 2 Table lock (339129950) 2459 RON
95 1 28 341147090 - Indisponibil
96 1 1 Anti-kick back device (341056270) 8275 RON
97 1 6 Cap screw (141122300) 446 RON
98 1 4 343375990 - Indisponibil
99 1 4 339129920 - Indisponibil
100 1 1 341603740 - Indisponibil
101 1 1 341603730 - Indisponibil
102 1 1 Spacer sleeve (341005160) 4249 RON
103 1 2 Washer (343376420) 105 RON
104 1 2 Plain hexagon nut (141130860) 781 RON
105 1 4 Spindle bearing (343375960) 781 RON
106 1 4 Sprocket (315415110) 1340 RON
107 1 1 Service set (340032590) 3689 RON
108 1 2 Bearing seat (315415150) 5926 RON
109 1 2 O-ring (143194720) 446 RON
110 1 2 Ball bearing, 20x42x12 (143112970) 8275 RON
111 1 1 Pointer,thickness plate (339130020) 1340 RON
112 1 1 Thicknesser table 307X550 (315415120) 108379 RON
113 1 4 Threaded spindle (341056230) 2848 RON
114 1 6 Spring washer (141155650) 446 RON
115 1 3 SPACER SLEEVE DH 10X22 (341005150) 446 RON
116 1 1 Roller chain 246 links (341147130) 21361 RON
117 1 1 Roller chain 98 links (341147120) 8275 RON
118 1 1 344260280 - Indisponibil
119 1 1 344260290 - Indisponibil
123 1 1 Electric motor 2,8 KW - 400V (317002790) 197187 RON
124 1 1 Taper groove pulley (341056250) 2848 RON
125 1 1 Washer (141150060) 446 RON
126 1 1 Hexagon head screw (141122670) 190 RON
129 1 4 Pressure spring (342002830) 781 RON
130 1 2 Fillister head screw (141111420) 781 RON
131 1 1 Safety switch (343407040) 33553 RON
132 1 1 Claw extention (341147270) 1564 RON
133 1 1 Table support (339129940) 8275 RON
140 1 1 Cover BL 1,50X57 (339129780) 18341 RON
141 1 26 Self-tap. fill. h. screw (141118730) 446 RON
142 1 1 Scale (338115710) 3018 RON
143 1 1 Covering hood (343376810) 5926 RON
144 1 1 Side panel (339129680) 21361 RON
145 1 1 CAGE NUT M 6 (341101880) 446 RON
146 1 12 Truss head screw (141111530) 781 RON
147 1 1 Base plate (339129690) 24046 RON
148 1 1 Bush RDI 16 (F. (341005120) 105 RON
149 1 1 Bearing plate (339129760) 4249 RON
150 1 1 Bush RDI 06 (F. (341005130) 781 RON
151 1 1 Spacer sleeve (341005140) 446 RON
152 1 1 339129750 - Indisponibil
153 1 1 FRONT COVER PLATE (339130810) 4249 RON
154 1 1 Chain tightener (339129770) 8275 RON
155 1 1 CHAIN TENSIONING SPROCKET RD 32,4X95 (341147030) 1340 RON
156 1 1 341056170 - Indisponibil
157 1 1 Hexagonal nut (141130100) 446 RON
158 1 2 Serrated lock washer (141150430) 446 RON
159 1 1 Grub screw (141122780) 446 RON
160 1 1 Side panel (339129730) 21361 RON
161 1 1 339129740 - Indisponibil
162 1 1 Cover plate (339129710) 15993 RON
163 1 4 Truss head screw (141122650) 446 RON
164 1 1 Motor plate (339129720) 488 RON
165 1 2 Angle support (341147020) 3689 RON
166 1 4 Rubber foot (344095770) 781 RON
167 1 1 343376820 - Indisponibil
168 1 1 Countersunk screw (141114740) 781 RON
169 1 1 HANDWHEEL (341112570) 19236 RON
170 1 1 343376830 - Indisponibil
171 1 1 Height adjustment shaft (341056180) 11519 RON
172 1 2 Countersunk screw (141112450) 446 RON
173 1 1 Adhesive lable, red-white-black 170X75 (338116370) 781 RON
174 1 1 Switch 2,80DNB 3X400V (343407030) 295725 RON
175 1 1 Cover BL 1,50X65 (339130460) 24046 RON
176 1 1 ADHESIVE LABEL YELLOW/BLACK 90X25 (338116330) 446 RON
177 1 1 NAMEPLATE SILVER/BLACK (338041320) 446 RON
178 1 2 Metabo character (338116510) 446 RON
179 1 1 Universal spanner (344162450) 7157 RON
180 1 1 Cranked wrench key (344161520) 781 RON
181 1 1 344162630 - Indisponibil
182 1 4 Hexagonal nut (141131920) 781 RON
1001 1 1 338503140 - Indisponibil
