Top » Piese de schimb » PIESE METABO » 02700000

ADH 260 D - 02700000 - 3 / 400V/50Hz
[02700000]
ADH 260 D - 02700000 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
ADH 260 D - 02700000 - 3 / 400V/50Hz
Click pentru a mari
ADH 260 D - 02700000 - 3 / 400V/50Hz
Click pentru a mari
ADH 260 D - 02700000 - 3 / 400V/50Hz
Click pentru a mari
ADH 260 D - 02700000 - 3 / 400V/50Hz
Click pentru a mari

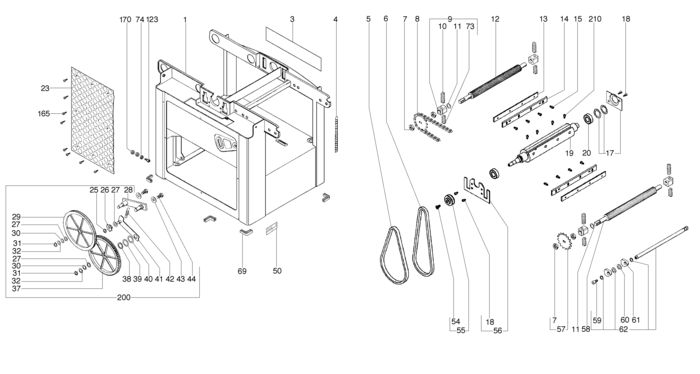

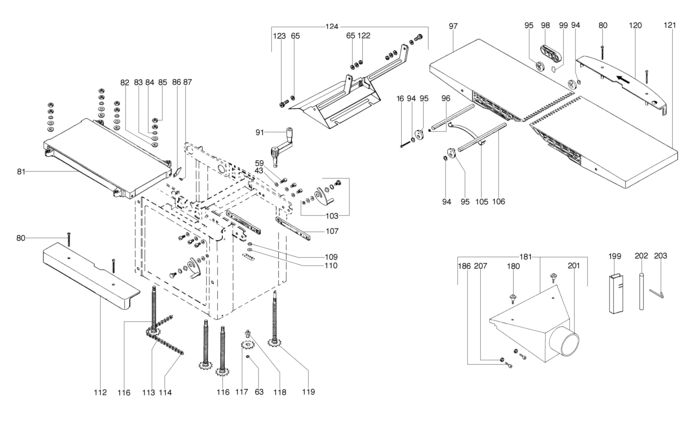

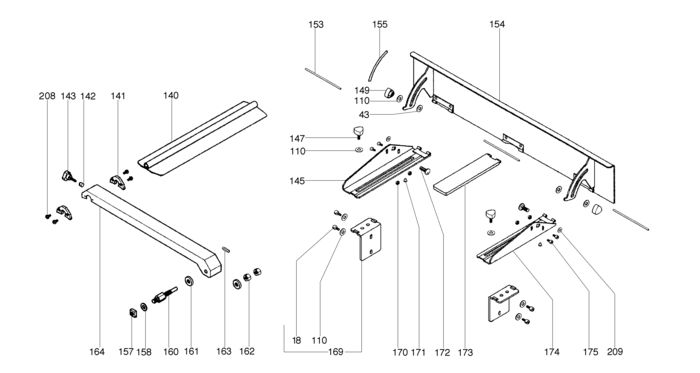

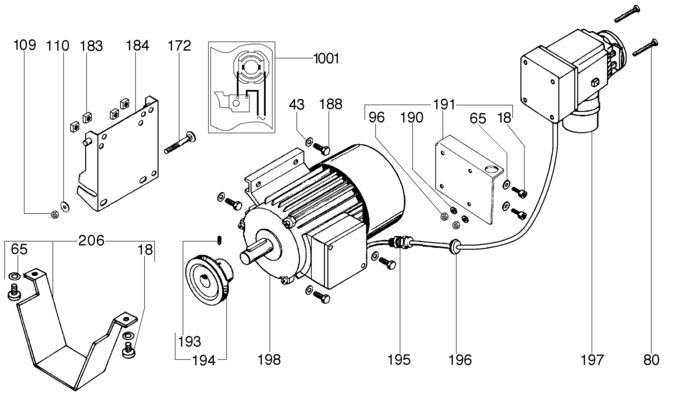

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Housing (339128950) 392698 RON
3 1 1 Metabo label (338115640) 1340 RON
4 1 1 Thickness scale (338113290) 1340 RON
5 1 1 V-belt (341146280) Indisponibil Indisponibil
6 1 1 V-belt (341146290) 2848 RON
7 1 2 Flat hex nut (141131740) 446 RON
8 1 1 Roller chain (143180730) 39481 RON
9 1 4 Bearing support (341004940) Indisponibil Indisponibil
10 1 4 Pressure spring (342002630) 488 RON
11 1 2 Shim (141155270) 446 RON
12 1 1 Feed roller (341603510) 19236 RON
13 1 1 341147710 - Indisponibil
14 1 1 630467000 - Indisponibil
15 1 1 Cap screw (141121940) 781 RON
16 1 1 Cap screw (141121930) 1564 RON
17 1 1 316035380 - Indisponibil
18 1 12 Cap screw (141113840) 781 RON
19 1 1 Knife carrier (341603670) 220451 RON
20 1 2 Ball bearing, 20x42x12 (143112280) 5926 RON
23 1 1 Cover (339129620) 18341 RON
25 1 1 Retaining ring (141180040) 446 RON
26 1 1 Sprocket wheel (341146140) 19236 RON
27 1 3 Shim (141155180) 781 RON
28 1 1 Bearing sheet (339128980) 2124 RON
29 1 1 Gear (341200940) 64311 RON
30 1 2 Shim (339006260) 2124 RON
31 1 2 Circlip (141155290) 1340 RON
32 1 2 Shim (339006270) 781 RON
37 1 1 Gear (341200950) 19236 RON
38 1 1 Retaining ring (141180130) 446 RON
39 1 1 Shim (339006320) 781 RON
40 1 1 Shim (339006330) 781 RON
41 1 1 Clamping plate (339128990) 21361 RON
42 1 1 Tension spring (342010160) 3018 RON
43 1 14 Washer (141151340) 446 RON
44 1 2 Hexagon head screw (141110310) 446 RON
50 1 1 Rating plate (338039050) 446 RON
54 1 1 Countersunk screw (141114670) 781 RON
55 1 1 Pulley (341200960) 13756 RON
56 1 1 Locking sheet (339129020) 4249 RON
57 1 1 Sprocket wheel (341146150) 5479 RON
58 1 1 341603530 - Indisponibil
59 1 7 Cap screw (141118230) 446 RON
60 1 37 339006340 - Indisponibil
61 1 37 Pawl (341146160) 2124 RON
62 1 1 Pawl spindle (341603680) 41718 RON
63 1 3 RETAINING RING (141180060) 446 RON
65 1 10 Washer Washer cod vechi 86300016365 (141151940) 446 RON
69 1 1 Base (343373280) 7157 RON
73 1 4 Pressure spring (342002650) 2124 RON
74 1 1 Serrated lock washer (141150430) 446 RON
80 1 6 Cap screw (141111290) 781 RON
81 1 1 Thicknesser table (315414730) 137236 RON
82 1 4 Bush (341004950) 3689 RON
83 1 4 Washer (141150060) 446 RON
84 1 4 Supporting disc (339006350) 105 RON
85 1 8 Flat hex nut (141131730) 781 RON
86 1 1 Thickness indicator (339129060) 4249 RON
87 1 1 141115700 - Indisponibil
91 1 1 Crank (341112420) 13756 RON
94 1 3 Grip ring (342021620) 1564 RON
95 1 4 Eccentric washer (341012530) 11519 RON
96 1 3 Hexagonal lock nut (141130930) 446 RON
97 1 1 315414750 - Indisponibil
98 1 1 Locking lever (343373320) 955 RON
99 1 1 Thickness scale (338113310) 781 RON
103 1 2 Excentric (341146180) 18341 RON
105 1 1 Spring (342050670) 8275 RON
106 1 2 Eccentric shaft (341603580) 2124 RON
107 1 2 Support rail (341146190) 13756 RON
109 1 2 Hexagonal nut (141131010) 446 RON
110 1 11 Washer (141150810) 446 RON
112 1 1 Cover (343373340) 11519 RON
113 1 1 Roller chain (143180740) 21361 RON
114 1 1 Connector (341146230) 3689 RON
116 1 3 Spindle short (341603570) 15993 RON
117 1 1 Sprocket wheel (341146250) 8275 RON
118 1 1 Clamping bolt (341146260) 7157 RON
119 1 1 Spindle long (341603560) 18341 RON
120 1 1 Cover (343373350) 11519 RON
121 1 1 Extension table (315414740) 108379 RON
122 1 2 Hexagonal lock nut (141130650) 781 RON
123 1 3 Cap screw (141113870) 781 RON
124 1 1 Cip ejector hood (341146270) 49212 RON
140 1 1 Sliding profil (315414760) 21361 RON
141 1 2 Holder (343373360) 5479 RON
142 1 1 Cap (341004960) 781 RON
143 1 1 Knurled screw (341702880) 105 RON
145 1 1 Sliding table (339129080) 2124 RON
147 1 1 Star grip M8x23 (341112430) 5926 RON
149 1 2 Star grip (143170090) 1340 RON
153 1 3 Pin (341514730) 955 RON
154 1 1 Stop (339006550) 14839 RON
155 1 1 Graduation scale (338113320) 5479 RON
157 1 1 Square nut (141130880) 781 RON
158 1 1 Washer (141150050) 446 RON
160 1 1 Bearing bolt (341514640) 26730 RON
161 1 2 Clamping disc (341012540) 1340 RON
162 1 2 Hexagonal nut (141130130) 781 RON
163 1 1 Pressure spring (342002640) 1564 RON
164 1 1 Swivel arm (341146320) 2848 RON
165 1 8 Self-tap. fill. h. screw (141118130) 446 RON
169 1 2 Guide holder (315414780) 11519 RON
170 1 4 Hexagonal nut (141130100) 446 RON
171 1 2 Plug (341146330) 2124 RON
172 1 3 Truss head screw (141113240) 781 RON
173 1 1 Protection plate (339129120) 5926 RON
174 1 1 Sliding table (339129130) 2124 RON
175 1 4 Cap screw (141119160) 781 RON
180 1 2 Star grip M8x25 (341112440) 5926 RON
181 1 1 Extraction hood (339129580) 49212 RON
183 1 4 Square nut (141131020) 781 RON
184 1 1 Motor plate (339129150) 21361 RON
186 1 2 Cheese-head screw (141114020) 446 RON
188 1 4 Hexagon head screw (141110320) 781 RON
190 1 2 Washer (141150020) 446 RON
191 1 1 Holder (339128380) 8275 RON
193 1 1 Grub screw (141121950) 781 RON
194 1 1 Belt pulley (341200970) 54357 RON
195 1 1 Cable clamp (343300070) 781 RON
196 1 1 Cable sleeve (344095240) 105 RON
197 1 1 Switch CEE 400 V (343405360) 4442 RON
198 1 1 Motor 400 V (317002350) 442359 RON
199 1 1 Setting gauge (331050550) 8275 RON
200 1 1 Feed cpl. (316028200) 59166 RON
201 1 1 Connecting nozzle (343373690) 955 RON
202 1 1 INDEXING PIN (341514650) 15993 RON
203 1 1 Hexagonal key (344161510) 781 RON
206 1 1 Belt guard (316031030) 18341 RON
207 1 2 Hexagonal nut (141131010) 446 RON
208 1 4 Self-tap. fill. h. screw (141118130) 446 RON
209 1 2 Shim (141155530) 446 RON
210 1 4 Cap screw (141111120) 446 RON
1001 1 1 338503010 - Indisponibil
