ADH 1626 D - 01627002 - 3 / 400V/50Hz
[01627002]
ADH 1626 D - 01627002 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
ADH 1626 D - 01627002 - 3 / 400V/50Hz
Click pentru a mari
ADH 1626 D - 01627002 - 3 / 400V/50Hz
Click pentru a mari
ADH 1626 D - 01627002 - 3 / 400V/50Hz
Click pentru a mari

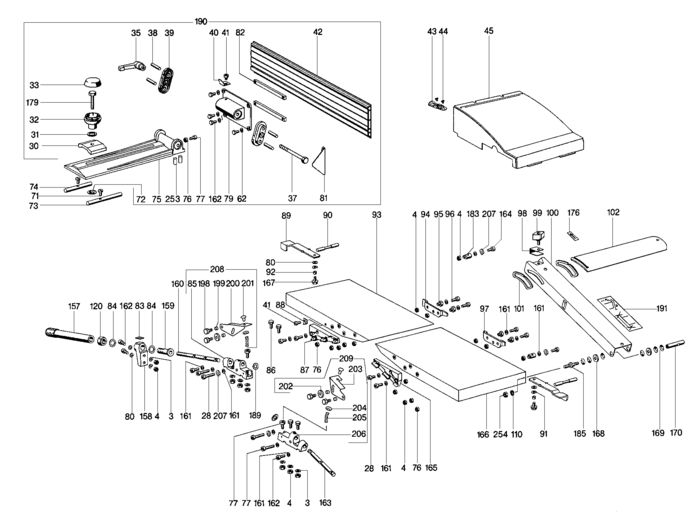

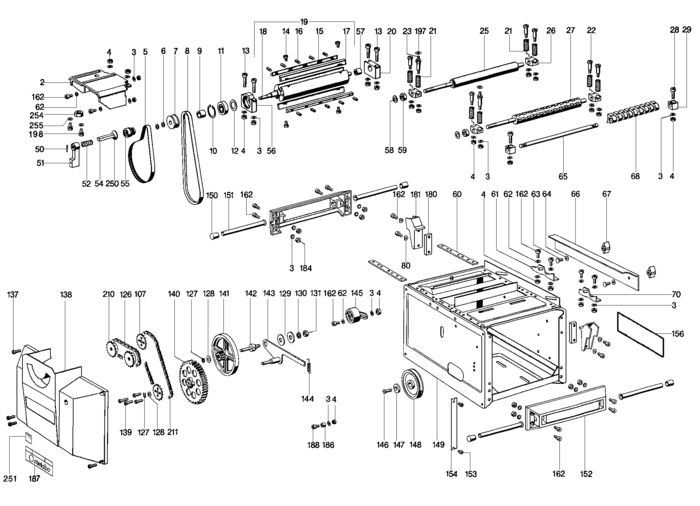

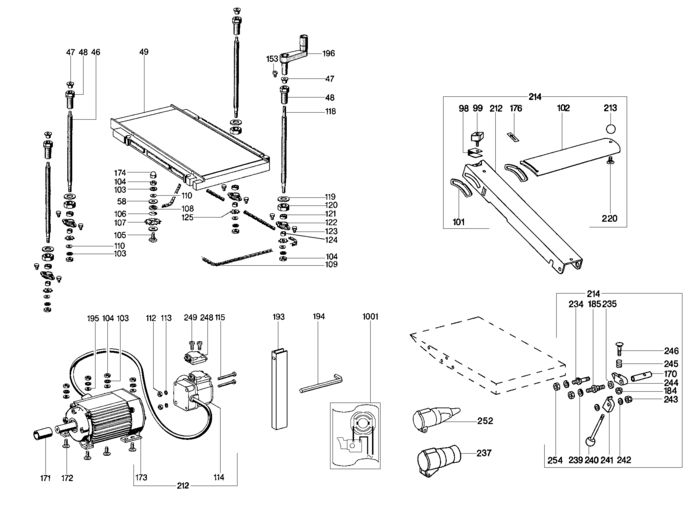

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 316011060 - Indisponibil
3 1 28 Spring washer (141150280) 446 RON
4 1 44 Hexagonal nut (141130100) 446 RON
5 1 1 344260090 - Indisponibil
6 1 2 Washer (141152590) 781 RON
7 1 1 V-belt pulley (341200490) 8275 RON
8 1 1 Narrow v-belt (143180610) 11519 RON
9 1 1 341002720 - Indisponibil
10 1 1 Retaining ring (141180390) 781 RON
11 1 1 Ball bearing, 15x35x11 (143111520) 7157 RON
12 1 1 Compensating washer (143113060) 105 RON
13 1 4 Cap screw (141117000) 105 RON
14 1 4 Cap screw (341701560) 446 RON
15 1 2 Pressure strip (341141540) 955 RON
16 1 10 Grub screw (141115190) 446 RON
17 1 2 Planer blade (344143960) 15993 RON
18 1 1 Planer-shaft cpl. (341602600) 127394 RON
19 1 1 Shaft cpl. (316012230) 197187 RON
20 1 1 316012220 - Indisponibil
21 1 8 Pressure spring (342001090) 781 RON
22 1 6 Flat headed screw (141119360) 1340 RON
23 1 2 341513280 - Indisponibil
25 1 1 341602630 - Indisponibil
26 1 4 Bearing block (341050450) 955 RON
27 1 1 Feed roller (341602620) 33553 RON
28 1 6 Cap screw (141113910) 781 RON
29 1 2 341141560 - Indisponibil
30 1 1 Clamping plate (315410160) 5926 RON
31 1 1 Washer (141150140) 446 RON
32 1 1 341111450 - Indisponibil
33 1 1 Handle upper part (341111320) 2459 RON
35 1 1 Clamping lever (341111960) 8275 RON
37 1 1 141120170 - Indisponibil
38 1 4 Cylindrical pin (141160710) 105 RON
39 1 2 Guide clip (315409670) 8275 RON
40 1 1 339120540 - Indisponibil
41 1 2 Self-tap. fill. h. screw (141116130) 446 RON
42 1 1 Guide (331050460) 2848 RON
43 1 1 341141920 - Indisponibil
44 1 2 Tubular rivet (142160120) 446 RON
45 1 1 Wheel guard cpl. (339002390) 49212 RON
46 1 3 Spindle (341500310) 21361 RON
47 1 4 Collar bearing (341050440) 1340 RON
48 1 4 Nut (341101020) 8275 RON
49 1 1 316016040 - Indisponibil
50 1 1 Tightening pin (141160960) 446 RON
51 1 1 Shift lever (343358210) 2124 RON
52 1 1 Pressure spring (342020610) 781 RON
54 1 1 Shift axle (341602640) 955 RON
55 1 1 Belt pulley cpl. (316016230) Indisponibil Indisponibil
56 1 1 Bearing support (315300480) 34448 RON
57 1 1 Needle sleeve (143113550) 488 RON
58 1 4 Washer (141151990) 446 RON
59 1 2 Plain hexagon nut (141131160) 446 RON
60 1 2 339120030 - Indisponibil
61 1 1 339002820 - Indisponibil
62 1 13 Washer Washer cod vechi 86300016365 (141151940) 446 RON
63 1 2 Truss head screw (141111550) 781 RON
64 1 2 Spacing washer (341080160) 1564 RON
65 1 1 341513180 - Indisponibil
66 1 1 Angle (341141890) 11519 RON
67 1 2 341100970 - Indisponibil
68 1 26 341050480 - Indisponibil
70 1 1 Supporting angle left (339003640) 955 RON
71 1 2 Self-tap. fill. h. screw (141116800) 446 RON
72 1 1 Safety (141181700) 781 RON
73 1 1 341513160 - Indisponibil
74 1 1 341513170 - Indisponibil
75 1 1 Guide cpl. (316019350) 54357 RON
76 1 3 Plain hexagon nut (141130040) 446 RON
77 1 7 Cap screw (141113880) 446 RON
79 1 1 Bearing support (315409680) 24046 RON
80 1 6 Lock washer (141150370) 446 RON
81 1 1 339121160 - Indisponibil
82 1 2 341141860 - Indisponibil
83 1 1 338104510 - Indisponibil
84 1 2 Washer (141151460) 781 RON
85 1 1 Bearing support (316019150) 21361 RON
86 1 4 Hexagon head screw (141110270) 446 RON
87 1 1 Bearing flange (315409700) 24046 RON
88 1 1 339120130 - Indisponibil
89 1 2 339004160 - Indisponibil
90 1 2 341513340 - Indisponibil
91 1 2 141150710 - Indisponibil
92 1 2 341000070 - Indisponibil
93 1 1 Planer table cpl. (316016250) 14839 RON
94 1 1 339003650 - Indisponibil
95 1 4 341513450 - Indisponibil
96 1 1 Cap screw (141115830) 781 RON
97 1 1 339003660 - Indisponibil
98 1 1 Clamp strap (339002510) 1564 RON
99 1 1 Thumbscrew (341111640) 781 RON
100 1 1 GUIDE LEVER (339004170) 18341 RON
101 1 2 344092120 - Indisponibil
102 1 1 Hand guard (343358110) 30980 RON
103 1 9 Serrated lock washer (141150440) 446 RON
104 1 10 Hexagonal nut (141131010) 446 RON
105 1 1 341513210 - Indisponibil
106 1 1 Cup spring (141153630) 781 RON
107 1 3 341141580 - Indisponibil
108 1 1 341101010 - Indisponibil
109 1 1 Roller chain (143180620) 21361 RON
110 1 9 Washer (141151340) 446 RON
112 1 2 Hexagonal nut (141130090) 446 RON
113 1 2 Serrated lock washer (141150420) 446 RON
114 1 1 Switch CEE 400 V (343405360) 4442 RON
115 1 1 141113770 - Indisponibil
118 1 1 Spindle (341500320) 18341 RON
119 1 4 339003980 - Indisponibil
120 1 5 341101060 - Indisponibil
121 1 4 Ball bearing, 8x22x7 (143113400) 488 RON
122 1 4 315300510 - Indisponibil
123 1 8 141119390 - Indisponibil
124 1 4 Spacer bush (341002860) 781 RON
125 1 4 341141590 - Indisponibil
126 1 1 Roller chain (143180660) 7157 RON
127 1 2 Retaining ring (141180030) 446 RON
128 1 2 141151110 - Indisponibil
129 1 2 Washer ZN5BK (141153610) 1564 RON
130 1 1 Serrated lock washer (141150450) 446 RON
131 1 1 341101180 - Indisponibil
137 1 4 Self-tap. fill. h. screw (141119810) 781 RON
138 1 1 Wheel guard (343357950) 2848 RON
139 1 4 Tight-fit screw (341701220) 446 RON
140 1 1 316020220 - Indisponibil
141 1 1 316016220 - Indisponibil
142 1 1 341602560 - Indisponibil
143 1 1 316019780 - Indisponibil
144 1 1 342020620 - Indisponibil
145 1 1 Belt tightener (316013870) 13756 RON
146 1 1 Countersunk screw (141114740) 781 RON
147 1 1 341011590 - Indisponibil
148 1 1 341200510 - Indisponibil
149 1 1 339004180 - Indisponibil
150 1 4 343358230 - Indisponibil
151 1 4 341048910 - Indisponibil
152 1 2 343368870 - Indisponibil
153 1 3 Self-tap. fill. h. screw (141116790) 446 RON
154 1 1 338110250 - Indisponibil
156 1 1 Metabo label (338115640) 1340 RON
157 1 1 341111610 - Indisponibil
158 1 1 315409710 - Indisponibil
159 1 1 341101030 - Indisponibil
160 1 1 Spindle bolt (341513240) 18341 RON
161 1 20 141152780 - Indisponibil
162 1 25 Cap screw (141113860) 781 RON
163 1 1 341513230 - Indisponibil
164 1 1 Cap screw (141113900) 781 RON
165 1 1 315409690 - Indisponibil
166 1 1 Planer table (316016240) 14839 RON
167 1 2 Hexagon head screw (141119780) 781 RON
168 1 2 339121180 - Indisponibil
169 1 6 Cup spring (141153300) 781 RON
170 1 1 Bolt (341513490) 3689 RON
171 1 1 341002830 - Indisponibil
172 1 4 141119940 - Indisponibil
173 1 1 Three-phase motor (317001580) 295725 RON
174 1 1 343360520 - Indisponibil
176 1 1 Label (338115600) 781 RON
179 1 1 Hexagon head screw (141116280) 781 RON
180 1 2 341142760 - Indisponibil
181 1 2 315411500 - Indisponibil
183 1 2 341513630 - Indisponibil
184 1 8 Hexagonal lock nut (141130650) 781 RON
185 1 1 Spindle (341513480) 8275 RON
186 1 1 341002350 - Indisponibil
187 1 1 338014340 - Indisponibil
188 1 1 Cap screw (141113850) 781 RON
189 1 2 Washer (141152150) 781 RON
190 1 1 316018280 - Indisponibil
191 1 1 338104490 - Indisponibil
193 1 1 Setting gauge (331050550) 8275 RON
194 1 1 Hexagonal key (344160770) 781 RON
195 1 4 Washer (141150810) 446 RON
196 1 1 Crank (316018920) Indisponibil Indisponibil
197 1 2 Washer (141152070) 446 RON
198 1 6 Hexagon head screw (141119020) 446 RON
199 1 4 341003500 - Indisponibil
200 1 1 339122170 - Indisponibil
201 1 2 Tubular rivet (142160550) 446 RON
202 1 2 Washer ZN5BK (141150970) 446 RON
203 1 1 339122160 - Indisponibil
204 1 2 Circlip (141181760) 446 RON
205 1 2 Pressure spring (342001230) 781 RON
206 1 1 Bearing support (316019160) 21361 RON
207 1 4 Spring ring (141150700) 446 RON
208 1 1 316015330 - Indisponibil
209 1 1 316019070 - Indisponibil
210 1 2 341143870 - Indisponibil
211 1 1 Roller chain (143180670) 8275 RON
212 1 1 399999990 - Indisponibil
213 1 1 399999990 - Indisponibil
214 1 1 399999990 - Indisponibil
220 1 1 399999990 - Indisponibil
234 1 1 399999990 - Indisponibil
235 1 1 399999990 - Indisponibil
237 1 1 399999990 - Indisponibil
239 1 2 399999990 - Indisponibil
240 1 1 399999990 - Indisponibil
241 1 1 399999990 - Indisponibil
242 1 1 399999990 - Indisponibil
243 1 1 399999990 - Indisponibil
244 1 1 399999990 - Indisponibil
245 1 1 399999990 - Indisponibil
246 1 1 399999990 - Indisponibil
248 1 1 Switch cover (343404950) 3689 RON
249 1 1 141113190 - Indisponibil
250 1 1 Thrust washer (339002470) 2459 RON
251 1 1 Label (338109020) 1564 RON
252 1 1 399999990 - Indisponibil
253 1 2 Pressure piece (341513910) 1340 RON
254 1 2 Hexagonal nut (141130130) 781 RON
255 1 2 Washer (141150110) 446 RON
1001 1 1 338502900 - Indisponibil
