Top » Piese de schimb » PIESE METABO » 0010095107 10

950/11/500 DS P - 0010095107 10 - 3 / 400V/50Hz
[0010095107 10]
950/11/500 DS P - 0010095107 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
950/11/500 DS P - 0010095107 10 - 3 / 400V/50Hz
Click pentru a mari
950/11/500 DS P - 0010095107 10 - 3 / 400V/50Hz
Click pentru a mari

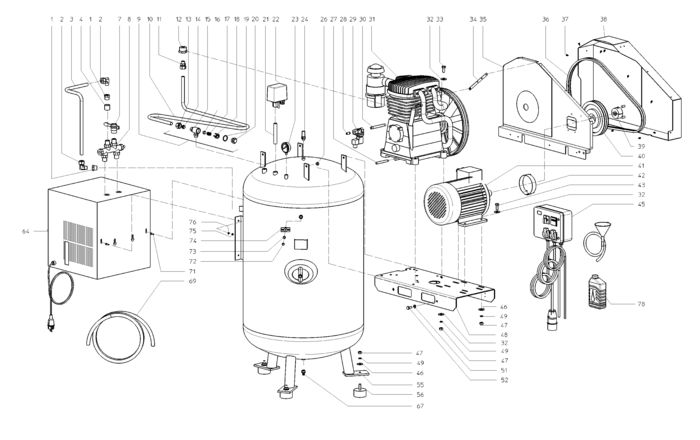

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 REDUCER NIPPL 3/4"X1/2" NR. 241 / VERZ. (87871032658) 1564 RON
2 1 2 ELBOW TAP CONNECTOR 1/2"X RD 18 (87872027305) 13756 RON
4 1 1 7871684949 - Indisponibil
7 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
8 1 1 0901055696 - Indisponibil
9 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD 18 (81001014745) 24046 RON
11 1 1 UNION 1/2"X RD 18 GERADE (87872056640) 5926 RON
12 1 1 REDUCER NIPPL 1 1/4"X1/2" NR.241 / VERZ. (87871027042) 3018 RON
13 1 1 UNION NUT M 18LH / M 26X1,5 CHROMATIERT (87874098200) 2459 RON
14 1 1 COMPRESSION RING S-R 18L (87875098211) 1564 RON
15 1 1 VALVE BODY R 1/2" AG X RD 18 (81310097574) 10288 RON
16 1 2 1311052620 - Indisponibil
17 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
18 1 2 CAGE RD 27,5X26 (81311052310) 105 RON
19 1 1 7631057092 - Indisponibil
20 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
21 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
22 1 1 AUTOM. PRESSURE CONTROL SWITCH 7-11 BAR (88101008364) 34448 RON
23 1 1 7823010219 - Indisponibil
24 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
26 1 4 FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF (86209675984) 446 RON
27 1 1 OIL DRAIN PIP RD 14X50 (81315415671) 10288 RON
28 1 1 MUFFLER R 1/4" (87819009583) 5926 RON
29 1 1 SOLENOID VALVE (341148420) 78180 RON
30 1 1 PIPE NIPPL 1/4"X120 VERZINKT (87812619009) 488 RON
31 1 1 COMPRESSOR PUMP B 7000 (81313030560) 1180893 RON
32 1 11 Washer (86300016705) Indisponibil Indisponibil
33 1 4 HEXAGON HEAD SCREW M 12X65 VERZ. (86103028440) 2459 RON
34 1 1 BRACKET BL 2X16X168 (81312051890) 781 RON
35 1 1 81312687026 - Indisponibil
36 1 2 V-BELT 13X1725 LI (87230013181) 18341 RON
37 1 11 HEXAGON HEAD TAPPING SCREW B 5,5X13 VERZ (86171025867) 446 RON
38 1 1 PROTECTIVE GRATING, FRONT, ASS (81312686984) 59166 RON
39 1 1 LOCKING BUSH 2012-38 / NUT 10 MM TAPER (87243687769) 15993 RON
40 1 1 V-BELT PULLEY TBA 140-2-2012 (87240663958) 21361 RON
41 1 1 ELECTRIC MOTOR 400/3/50 3000UPM B3 (88013021890) 392698 RON
42 1 1 WELLENSCHUTZRING BL 0,88X40X369 (81312686950) 3689 RON
43 1 4 HEXAGON HEAD SCREW M 12X50 VERZ. (86103028165) 781 RON
45 1 1 STAR/DELTA SWITCH 5,5KW/M=6,5A(STRANG) (88054672560) 392698 RON
46 1 8 WASHER B 13 VERZ. (86305002508) 446 RON
47 1 11 HEXAGON NUT (86200017992) 446 RON
48 1 1 MOUNTING BRACKET BL 4,00X745,0X492,1 STA (81312686968) 93951 RON
49 1 11 SPRING LOCK WASHER B 12 VERZ. (86301000306) 446 RON
51 1 4 WASHER (86305002494) 446 RON
52 1 4 HEXAGON HEAD SCREW M 10X30 VERZ. (86103001232) 446 RON
55 1 1 1314687252 - Indisponibil
56 1 3 RUBBER-METAL ANTI-VIBR. MOUNT 75X40 /M12 (87058037839) 955 RON
64 1 1 0901059667 - Indisponibil
67 1 1 DRAIN VALVE R 1/2" (87830029286) 15993 RON
69 1 1 7850035037 - Indisponibil
71 1 2 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
72 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
73 1 1 PACKING RIN 8-14-1,5 (87631027126) 446 RON
74 1 1 TEST FLANGE R 3/8" (87818026352) 7157 RON
75 1 1 Washer (86305002087) 446 RON
76 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
78 1 2 0901004170 - Indisponibil
1001 1 1 1310165448 - Indisponibil

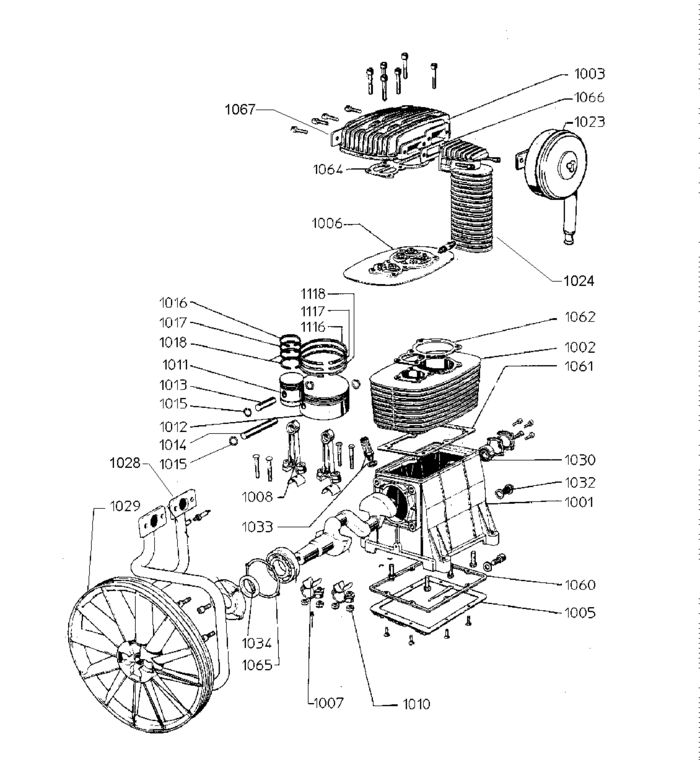

1002 1 1 CYLINDER ET (81310165561) 639324 RON
1003 1 1 CYLINDER HEAD ET (81319156328) 171574 RON
1005 1 1 HOUSING LID ET (81310164611) 64311 RON
1006 1 1 VALVE ASSEMBLY ET (81319156336) 197187 RON
1007 1 1 CONROD BEARING SHELL ET (81319166730) 15993 RON
1008 1 1 CONNECTING ROD ET (81319165661) 64311 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
1011 1 1 PISTON, HP RD 70 ET (81319163847) 93951 RON
1012 1 1 1319163855 - Indisponibil
1013 1 1 GUDGEON PIN RD 25X56 ET (81315163966) 19236 RON
1014 1 1 GUDGEON PIN RD 25X120 ET (81315163974) 26730 RON
1015 1 1 RETAINING RING FOR SHAFTS 25X1,2 (86400016664) 446 RON
1016 1 1 PISTON RING RD 70X2 ET (81319164169) 15993 RON
1017 1 1 PISTON RING RD 70X2 ET (81319164177) 15993 RON
1018 1 1 OIL WIPING RING RD 70X4 ET (81319164185) 18341 RON
1023 1 1 AIR FILTER ASSEMBLY ET (87825637707) 14839 RON
1024 1 1 AFTERCOOLER ET (81313631792) 73930 RON
1028 1 1 INTERMEDIATE COOLER ET (81319633258) 14839 RON
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 1/2" ET (81319155917) 26730 RON
1034 1 1 ROTARY SHAFT SEAL 45x60x7 ET (87635638383) 955 RON
1060 1 1 CRANKCASE PACKING ET (81319164487) 26730 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162026) 13756 RON
1062 1 1 CYLINDER GASKET ET (81319156352) 18341 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156360) 13756 RON
1065 1 1 PACKING,BEARG.CAP, PINION END ET (81319165858) 3689 RON
1066 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
1067 1 1 PACKING, INTERMEDIATE COOLER ET (81319161755) 5926 RON
1116 1 1 PISTON RING RD 135X3 ET (81319164371) 21361 RON
1117 1 1 PISTON RING RD 135X3 ET (81319164380) 24046 RON
1118 1 1 OIL WIPING RING RD 135X5 ET (81319164398) 34448 RON
