Top » Piese de schimb » PIESE METABO » 09201000

DS D 9201 - 09201000 - 3 / 400V/50Hz
[09201000]
DS D 9201 - 09201000 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
DS D 9201 - 09201000 - 3 / 400V/50Hz
Click pentru a mari

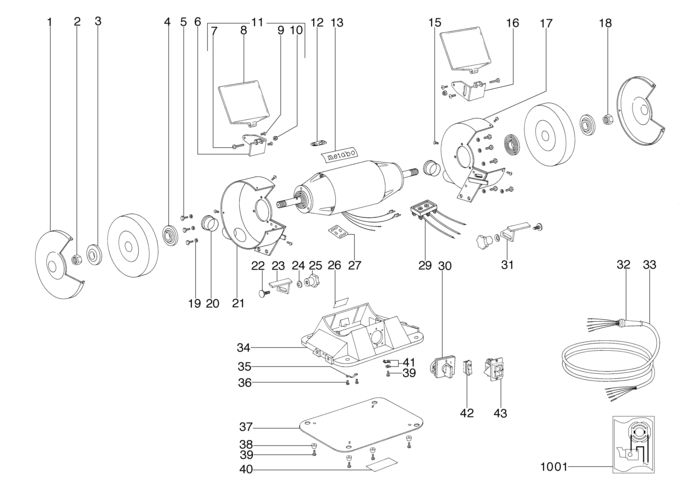

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Wheel guard cover (339202630) 18341 RON
2 1 1 Hexagonal nut (141130210) 190 RON
3 1 2 Clamping flange (315414430) 7157 RON
4 1 2 Labyrinth flange (315414440) 2848 RON
5 1 6 Hexagon head screw (141114860) 781 RON
6 1 1 Angle left (339128410) 7157 RON
7 1 2 Fillister head screw (141115970) 781 RON
8 1 2 Eye shield (344350130) 5479 RON
9 1 4 Fillister head screw (141110600) 446 RON
10 1 2 Hexagonal lock nut (141130930) 446 RON
11 1 2 Eye protection (316026000) 955 RON
12 1 1 GS APPROVAL SEAL (338110710) 781 RON
13 1 1 Metabo label (338115520) 1340 RON
15 1 6 Fillister head screw (141110580) 446 RON
16 1 1 Angle right (339128420) 7157 RON
17 1 1 339202610 - Indisponibil
18 1 1 Hex nut (141130200) 105 RON
19 1 6 Spring washer (141150290) 446 RON
20 1 2 Plug (343371470) 105 RON
21 1 1 339202620 - Indisponibil
22 1 2 Truss head screw (141121700) 446 RON
23 1 1 Table left (315414410) 7157 RON
24 1 2 Saucer spring (141150540) 446 RON
25 1 2 Star grip (143170030) 1564 RON
26 1 1 Rating plate (338033170) 446 RON
27 1 1 Insulation (339051210) 781 RON
29 1 1 Clamping board cpl. (343076510) 3018 RON
30 1 1 Switch (343406180) 19236 RON
31 1 1 Table right (315414450) 7157 RON
32 1 1 Cable sleeve (344094990) 3018 RON
33 1 1 4-core cable (344492910) 5926 RON
34 1 1 Foot (315414420) 34448 RON
35 1 1 Cable clip (339128020) 105 RON
36 1 2 Cap screw (141111080) 446 RON
37 1 1 Base plate (339210770) 2459 RON
38 1 4 Rubber foot (344095030) 105 RON
39 1 5 Cap screw (141111070) 446 RON
40 1 1 Indication label (338105510) 781 RON
41 1 1 Grounding terminal (339128040) 446 RON
42 1 1 Switch (343406240) 15993 RON
43 1 1 Switch (343408420) 488 RON
1001 1 1 338501540 - Indisponibil
