Top » Piese de schimb » PIESE METABO » 0141090410 10

TF 904/3,10 WNB - 0141090410 10 - EU 230V
[0141090410 10]
TF 904/3,10 WNB - 0141090410 10 - EU 230V
Click pentru a mari
Imagini suplimentare
TF 904/3,10 WNB - 0141090410 10 - EU 230V
Click pentru a mari
TF 904/3,10 WNB - 0141090410 10 - EU 230V
Click pentru a mari
TF 904/3,10 WNB - 0141090410 10 - EU 230V
Click pentru a mari
TF 904/3,10 WNB - 0141090410 10 - EU 230V
Click pentru a mari

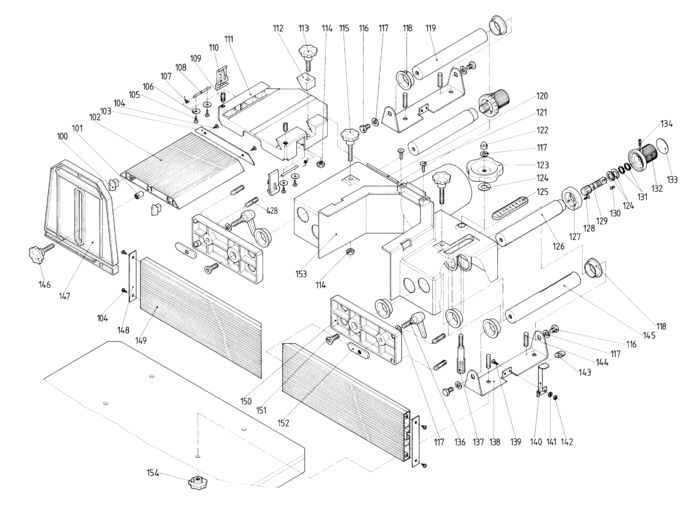

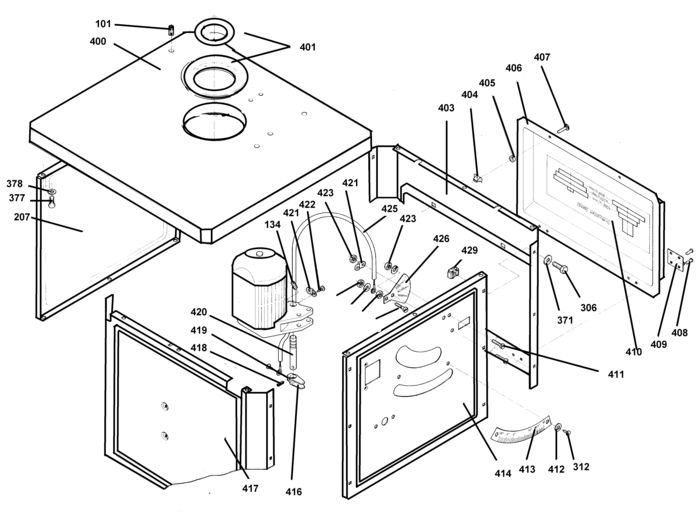

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
100 1 1 SLIDE PLUG, COVER SECTION (81381099322) 105 RON
101 1 1 TAPPED BUSHING M 8 KERB-KONUS (86330100050) 1564 RON
102 1 1 COVER EXTRUSION 200 MM (81383099370) 13756 RON
103 1 1 END PLATE, COVER EXTRUSION BL 1,50X19X17 (81482100704) 1340 RON
104 1 1 86172015687 - Indisponibil
105 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
106 1 1 Washer (86305002460) 446 RON
107 1 1 TORSION SPRING RDI 4,5 CHROMATIERT (87051099359) 446 RON
108 1 1 KEY PIN RD 4X48 CHROMATIERT (81385099971) 781 RON
109 1 1 FLEXIBLE PRESSURE PIECE (87055043684) 3018 RON
110 1 1 COVER CLASP, FENCE ASSEMBLY (81381099349) 105 RON
111 1 1 LID (81380099205) 54357 RON
112 1 1 CLAMPING PIECE, COVER SECTION (81381099330) 105 RON
113 1 1 STARKNOB SCREW RD40/M8X33 (DIN 933) VERZ (87001005922) 105 RON
114 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
115 1 1 STARKNOB SCREW M 8X48 (DIN 933) VERZINKT (87001114667) 105 RON
116 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
117 1 1 Washer (86300016322) Indisponibil Indisponibil
118 1 1 FRICTION BEARING B RD 30X34X42X2X10 B (87151099879) 781 RON
119 1 1 GUIDE SHAFT, QUICK ADJUSTER RD 30X200 (81485111286) 13756 RON
120 1 1 KEY PIN RD 4X94 CHROMATIERT (81385099963) 105 RON
121 1 1 HEX. HEAD THREAD ROLLING SCREW (86143124744) 446 RON
122 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
123 1 1 KNURLED THUMB NUT RD 62,5 M 8 (86241133255) 2124 RON
124 1 1 SHIM RING 12X18X1 VERZ. (86306099548) 446 RON
125 1 1 SCALE, QUICK ADJUSTER 20X99,5 (81381100029) 190 RON
126 1 1 GUIDE SHAFT, FINE ADJUSTER RD 30X194 (81485111294) 13756 RON
127 1 1 LOCKING RING, SPINDLE LATCH (81381099390) 1564 RON
128 1 1 Fillister head screw (86172100099) 446 RON
129 1 1 LOCK BOLT RD 16X100 / M16X1 (81385099890) 8275 RON
130 1 1 FEATHER KEY A 4X4X12 (86721099600) 446 RON
131 1 1 RETAINING RING FOR SHAFTS (86400009935) 446 RON
132 1 1 SETTING KNOB, SPINDLE LATCH KPL.MIT SKA (81381099400) 4249 RON
133 1 1 ADHESIVE LABEL 0,65XRD30,7 OHNE AUFDRUCK (81142100165) 1564 RON
134 1 1 FLEXIBLE PRESSURE PIECE M 6X14 K (87055099906) 190 RON
136 1 1 STARKNOB SCREW RD40/M8X33 (DIN 933) VERZ (87001005922) 105 RON
137 1 1 PINION SHAFT RD 15X98 M=1,5 Z=8 (81385099947) 19236 RON
138 1 1 CARRIER, GUIDE SHAFT (81014015260) 8275 RON
139 1 1 Fillister head screw (86123002022) 446 RON
140 1 1 VERNIER CARRIER BL 1,5X28X97 (81382100006) 1340 RON
141 1 1 Serrated lock washer (86304084020) 446 RON
142 1 1 HEXAGON NUT (86200002197) 446 RON
143 1 1 ADHESIVE LABEL WHITE/RED 20X14 NONIUS-SC (81141100110) 781 RON
144 1 1 6552099883 - Indisponibil
145 1 1 SHAFT, TOOTHED RACK RD 30X200 (81485111391) 26730 RON
146 1 1 STARKNOB SCREW M 8X28 (DIN 933) VERZINKT (87001115310) 1340 RON
147 1 1 PRESSURE SPRING, HANDGUARD (81381099381) 11519 RON
148 1 1 FENCE END PLATE BL 1,50X19X124 (81482100453) 105 RON
149 1 1 FENCE EXTRUSION 370 MM (81393100369) 13756 RON
150 1 1 CARRIER, FENCE EXTRUSION (81380099183) 26730 RON
151 1 1 HEX.SOCKET COUNTERS.HEAD SCREW (86132002060) 446 RON
152 1 1 SLIDE WASHER FL 16X5X60,9 (81492024500) 1340 RON
153 1 1 HOUSING, FENCE (81380099167) 108379 RON
154 1 1 STARKNOB NUT (87000017730) 781 RON
200 1 1 1382099733 - Indisponibil
202 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
204 1 1 1382114333 - Indisponibil
205 1 1 BLIND RIVET, MUSHROOM HEAD 6,4X12 FLACHR (86621074502) 446 RON
206 1 1 ADJUSTING FOOT RD 50 / M 10X35 SCHWARZ (87057111385) 4249 RON
207 1 1 1382099687 - Indisponibil
300 1 1 CONICAL GEAR WHEEL (81380613626) 190 RON
301 1 1 1385400116 - Indisponibil
302 1 1 SWIVEL GUIDE BEARBEITET (81380400088) 108379 RON
303 1 1 EYE BOLT M 12X65 GEWINDEL?NGE 45 MM (86141099432) 488 RON
304 1 1 PARALLEL PIN 12 m6X45 (86500099443) 105 RON
305 1 1 1482100461 - Indisponibil
306 1 1 Hex head screw (86103015675) 446 RON
307 1 1 HEXAGON THIN NUT M 12 VERZ. FORM B (86205055744) 446 RON
308 1 1 Hex head screw (86103001127) 446 RON
309 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
310 1 1 1385099564 - Indisponibil
311 1 1 1014015236 - Indisponibil
312 1 1 86172047473 - Indisponibil
314 1 1 POINTER, HEIGHT ADJUSTMENT BL 1,50X15X12 (81482100674) 4249 RON
315 1 1 FRICTION BEARING RD 16X30X10 A (87151099260) 1340 RON
316 1 1 CIRCLIP FOR BORES 30X1,2 (86401099598) 446 RON
317 1 1 SCALE DISC, HEIGHT ADJUSTMENT RD 134X41 (81381099284) 5926 RON
318 1 1 HANDWHEEL RD 125X12 NUT 4 GRIFFAUFNAHME (87003114680) 21361 RON
319 1 1 THREADED ROD RD 10X301,5 M8 KLEMMVORRICH (81485111332) 5479 RON
320 1 1 Tightening pin (86503001681) 446 RON
321 1 1 PALM GRIP D=50 / BUCHSE 10 FORM C (87007069620) 3689 RON
322 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
323 1 1 POINTER, SPINDLE TILT BL 1,50X65,5X152 (81482404118) 3018 RON
324 1 1 FRICTION BEARING S RD 12 G7 S (87151099224) 1564 RON
325 1 1 COARSE WASHER A 20 VERZ. (86300099643) 446 RON
326 1 1 Hex nut (86200002219) 446 RON
327 1 1 1383099923 - Indisponibil
328 1 1 TOOTHED RACK Z=8 M=2 L=365 (81383099915) 955 RON
329 1 1 BEARING BUSH RD 20/25/30X15 MIT BUND (82391203167) 446 RON
330 1 1 FEATHER KEY A 3X3X18 (86721099553) 446 RON
332 1 1 FRICTION BEARING B RD 10X12X4X1 B (87151100060) 781 RON
333 1 1 HEX. SOCKET SET SCREW, DOG PT. M 8X12 VE (86163087683) 446 RON
334 1 1 TWIST LOCK RD 50X16 (81485111278) 11519 RON
335 1 1 RETAINING RING A 38 (86403099820) 446 RON
336 1 1 DEEP GROOVE BALL BEARING 30X55X13 6006-2 (87100017924) 7157 RON
337 1 1 RETAINING RING FOR SHAFTS 30X1,5 (86400009927) 446 RON
338 1 1 GUIDE TUBE 292 MM (81385400248) 83437 RON
339 1 1 CUP SPRING 51,5X35,5X0,6 (87053122250) 105 RON
340 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205-2 (87100093418) 5926 RON
341 1 1 CUTTER SPINDLE RD 50X511 (81385099521) 59166 RON
342 1 1 FEATHER KEY A 6X6X36 (86721019738) 446 RON
343 1 1 SPACING COLLAR RD 30X50X25 (81485099790) 10288 RON
344 1 1 SPACING COLLAR RD 30X50X16 (81485099782) 955 RON
345 1 1 SPACING COLLAR RD 30X50X10 (81485099774) 8275 RON
346 1 1 SPACING COLLAR RD 30X50X8 (81485099766) 8275 RON
347 1 1 SPACING COLLAR RD 30X50X5 (81485099758) 8275 RON
348 1 1 SPINDLE NUT M 30X2 / SW 41X21,5 (81485111316) 8275 RON
349 1 1 1385099530 - Indisponibil
350 1 1 1480400352 - Indisponibil
351 1 1 CLAMP 54X18X13 (81381403145) 105 RON
352 1 1 Serrated lock washer (86304001745) 446 RON
353 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
355 1 1 POLY-RIB PULLEY 4J / RDA 133X93 RDI 20 P (87240411576) 33553 RON
356 1 1 SPRING LOCK WASHER B 12 VERZ. (86301000306) 446 RON
357 1 1 HEXAGON NUT (86200017992) 446 RON
358 1 1 HEXAGON THIN NUT (86205032396) 446 RON
359 1 1 1482119669 - Indisponibil
361 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
362 1 1 CUP SPRING 40,0X20,4X2,25 A40/GR1 (87053099658) 1340 RON
363 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
364 1 1 RATCHET LOCK LEVER, MALE M 10X60 (87006114223) Indisponibil Indisponibil
365 1 1 BOLT RD 10h11X(65) /M8 (81385099130) 4249 RON
366 1 1 MEDIUM WASHER (86300016349) 446 RON
367 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
368 1 1 SPINDLE NUT TR 16X4X29 (81381099276) 1564 RON
370 1 1 Fillister head screw (86172001830) 446 RON
371 1 1 Washer (86305002087) 446 RON
372 1 1 HEXAGON HEAD SCREW M 6X10 VERZ. (86103015934) 446 RON
373 1 1 MOTOR MOUNT (81380400258) 39481 RON
374 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
376 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
377 1 1 Cap screw (86121023081) 446 RON
378 1 1 Serrated lock washer (86304084047) 446 RON
379 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
380 1 1 7055100076 - Indisponibil
381 1 1 CLAMPING ROD, SPINDLE TILT RD 7X390 M 8 (81385099937) 3018 RON
382 1 1 1392200688 - Indisponibil
383 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
384 1 1 1482100445 - Indisponibil
387 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
388 1 1 POLY-RIB PULLEY 4J / RDA 158X61 RDI 20 P (87240411584) 34448 RON
389 1 1 Hex head screw (86103001267) 781 RON
390 1 1 POLY-RIB BELT 4 PJ 711 (87233072502) Indisponibil Indisponibil
392 1 1 GUIDE STRIP 2,5X9,5X223 (87151145307) 3689 RON
393 1 1 O-RING 75,57X5,33 90 SHORE (87632146242) 1340 RON
394 1 1 WIPER RING 70X78X5 (81381170540) 3689 RON
400 1 1 1380099000 - Indisponibil
401 1 1 1014635048 - Indisponibil
403 1 1 1382099695 - Indisponibil
404 1 1 CLIP-IN-CLIP SERIE 600 (87014111640) 781 RON
405 1 1 NEOPREN WASHER SERIE 600 (87014111632) 446 RON
406 1 1 DOOR LID, REAR HOUSING PANEL 65X315X500 (81381108550) 24046 RON
407 1 1 PIN SERIE 600 MIT SCHLITZ (87014168286) 1340 RON
408 1 1 BLIND RIVET, MUSHROOM HEAD 4X10 F FLACHR (86621007910) 446 RON
409 1 1 BOLT-ON HINGE 40X40 (81321712858) 3018 RON
411 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121102640) 446 RON
412 1 1 MEDIUM WASHER (86300016330) 446 RON
413 1 1 ANGLE SCALE-SHAFT TILT 1,00X14X194 -10/+ (81142100173) 488 RON
414 1 1 1382412199 - Indisponibil
416 1 1 SELECTOR FORK (81381100517) 1340 RON
417 1 1 1382114791 - Indisponibil
418 1 1 CLAMPING SLEEVE 4X20 (86503001665) 446 RON
419 1 1 Fillister head screw (86172028215) 446 RON
420 1 1 SWITCHING BOLT RD 10X115 (81385412157) 3018 RON
421 1 1 STRAIN RELIEF (88242033664) 446 RON
422 1 1 Fillister head screw w.fill. head screw (86172001805) 446 RON
423 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
425 1 1 BOWDEN WIRE RD 1,5X750 (87238100598) 8275 RON
426 1 1 1382412164 - Indisponibil
429 1 1 CAGE NUT (86264166657) 446 RON
7000 1 1 SWITCH KSK WNB UC230V M=12A K400VB/NKA3/ (88133170058) 83437 RON
