Top » Piese de schimb » PIESE METABO » 08665000

HS 8665 Quick - 08665000 - EU 230V
[08665000]
HS 8665 Quick - 08665000 - EU 230V
Click pentru a mari
Imagini suplimentare
HS 8665 Quick - 08665000 - EU 230V
Click pentru a mari

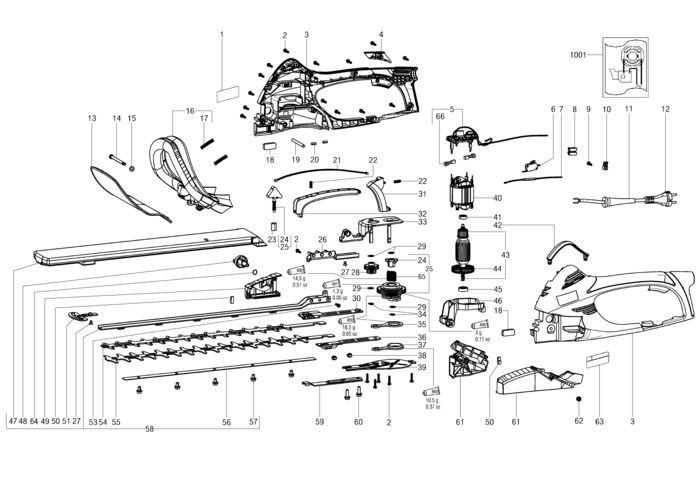

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 M-Label,08 52x22 (338122160) 446 RON
2 1 20 Self-tap. fill. h. screw (141116020) 781 RON
3 1 1 Housing w.cover (343391400) 13756 RON
4 1 1 Cable replacement cover (343391340) 669 RON
5 1 1 Brush holder module (316038960) 10288 RON
6 1 1 Switch (343406960) 3018 RON
7 1 1 Interf. suppr. (343254330) 1340 RON
8 1 1 Terminal rail (343050140) 781 RON
9 1 1 Self-tap. fill. h. screw (141117060) 781 RON
10 1 1 Cable clip (343362490) 781 RON
11 1 1 Cable sleeve (344100970) 781 RON
12 1 1 Cable with Cee plug (344493080) 488 RON
13 1 1 Hand guard (343391320) 2459 RON
14 1 1 Tight-fit screw (341703900) 446 RON
15 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
16 1 1 Bowhandle compl. (316038900) 21361 RON
17 1 2 Pressure spring (342001180) 446 RON
18 1 1 Felt seal set (316041380) 5926 RON
19 1 1 Pressure pin (341058510) 446 RON
20 1 2 Rubber plug (344092220) 446 RON
21 1 1 Tow (345000150) 669 RON
22 1 2 Pressure spring (342002440) 446 RON
23 1 1 Plastic tube (343391540) 446 RON
24 1 1 Quick stop w.bushing (316039780) 13756 RON
25 1 1 Safety clutch w.quick stop (316039770) 4442 RON
26 1 1 QUICK STOP COMPL. (316038700) 8275 RON
27 1 2 Countersunk screw (141121710) 446 RON
28 1 1 spurwheel (340011980) 3689 RON
29 1 4 Washer (141152400) 446 RON
30 1 1 Coupling sheet compl. (316038720) 8275 RON
31 1 1 Additional switch trigger (343391330) 669 RON
32 1 1 Housing (343391430) 669 RON
33 1 1 Bearing support compl. (316038620) 13756 RON
34 1 2 Circlip (141155400) 446 RON
35 1 1 Con rod (339132380) 2459 RON
36 1 1 Coupling sheet compl. (316038710) 8275 RON
37 1 1 Con rod (339132370) 2459 RON
38 1 2 Spacer bush (341070360) 446 RON
39 1 1 Cover (339132330) 3689 RON
40 1 1 Field coil 230V (311009920) 13756 RON
41 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
42 1 1 Cover (343391390) 1340 RON
43 1 1 Armature cpl. 230 V (310008760) 39481 RON
44 1 1 Fan (330001680) 1340 RON
45 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
46 1 1 Shift fork (343391380) 1340 RON
47 1 1 Storage container (343391520) 4249 RON
48 1 1 Fastening screw (341112640) 2459 RON
49 1 1 Blade cover (343391360) 1564 RON
50 1 2 Felt seal (344097150) 446 RON
51 1 1 Hand protector cpl (316027170) 5479 RON
53 1 1 Self-tap. fill. h. screw (141116800) 446 RON
54 1 1 Upper blade (344162920) 26730 RON
55 1 1 Lower blade (344162960) 8275 RON
56 1 1 Pressure strip (339132460) 2459 RON
57 1 5 Hexagon head screw (141120210) 446 RON
58 1 1 changeable cutter bar compl. (316038810) 34448 RON
59 1 1 Support plate (339132320) 2124 RON
60 1 2 Hexagon head screw (141119780) 781 RON
61 1 1 Cover housing (343391460) 4249 RON
62 1 1 Hexagonal lock nut (141130650) 781 RON
63 1 1 Rating plate (338046910) 446 RON
64 1 1 Brake ring (344097560) 669 RON
65 1 1 Spring (342021590) 1340 RON
66 1 1 Carbon brush (316048090) 3689 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
881 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504370 - Indisponibil
