Top » Piese de schimb » PIESE METABO » 0010080304 10

850/11/270 DS K - 0010080304 10 - 3 / 400V/50Hz
[0010080304 10]
850/11/270 DS K - 0010080304 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
850/11/270 DS K - 0010080304 10 - 3 / 400V/50Hz
Click pentru a mari
850/11/270 DS K - 0010080304 10 - 3 / 400V/50Hz
Click pentru a mari

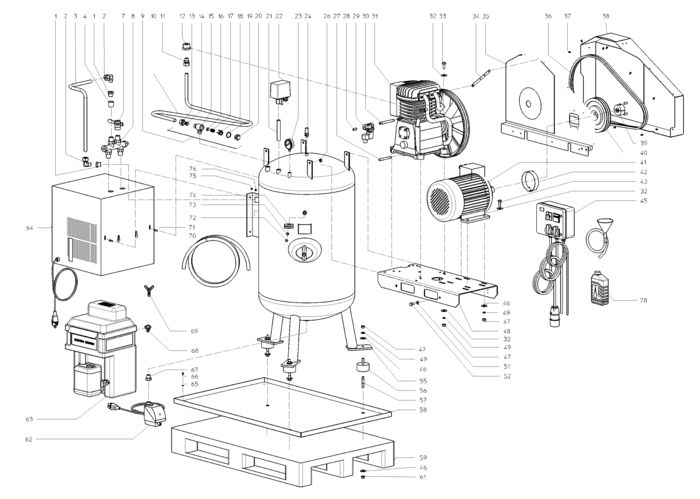

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 REDUCER NIPPL 3/4"X1/2" NR. 241 / VERZ. (87871032658) 1564 RON
2 1 2 ELBOW TAP CONNECTOR 1/2"X RD 18 (87872027305) 13756 RON
3 1 1 COPPER PIPE RD 18X1 NAHTLOS GEZOGEN (83257051535) 15993 RON
4 1 1 7871684949 - Indisponibil
7 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
8 1 1 0901055696 - Indisponibil
9 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD 18 (81001014745) 24046 RON
10 1 1 COPPER PIPE RD 18X1 NAHTLOS GEZOGEN (83257051535) 15993 RON
11 1 1 UNION 1/2"X RD 18 GERADE (87872056640) 5926 RON
12 1 1 REDUCER NIPPL 1 1/4"X1/2" NR.241 / VERZ. (87871027042) 3018 RON
13 1 1 UNION NUT M 18LH / M 26X1,5 CHROMATIERT (87874098200) 2459 RON
14 1 1 COMPRESSION RING S-R 18L (87875098211) 1564 RON
15 1 1 VALVE BODY R 1/2" AG X RD 18 (81310097574) 10288 RON
16 1 1 1311052620 - Indisponibil
17 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
18 1 1 CAGE RD 27,5X26 (81311052310) 105 RON
19 1 1 7631057092 - Indisponibil
20 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
21 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
22 1 1 AUTOM. PRESSURE CONTROL SWITCH 7-11 BAR (88101008364) 34448 RON
23 1 1 7823010219 - Indisponibil
24 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
26 1 4 FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF (86209675984) 446 RON
27 1 1 OIL DRAIN PIP RD 12X100 (81315415663) 13756 RON
28 1 1 MUFFLER R 1/4" (87819009583) 5926 RON
29 1 1 SOLENOID VALVE (341148420) 78180 RON
30 1 1 PIPE NIPPL 1/4"X120 VERZINKT (87812619009) 488 RON
31 1 1 COMPRESSOR PUMP B 6000 (81313030462) 688984 RON
32 1 11 Washer (86300016705) Indisponibil Indisponibil
33 1 4 HEXAGON HEAD SCREW M 12X65 VERZ. (86103028440) 2459 RON
34 1 1 BRACKET BL 2X16X168 (81312051890) 781 RON
35 1 1 81312687026 - Indisponibil
36 1 2 V-BELT 13X1775 LI (87230013254) 8275 RON
37 1 7 HEXAGON HEAD TAPPING SCREW B 5,5X13 VERZ (86171025867) 446 RON
38 1 1 PROTECTIVE GRATING, FRONT, ASS (81312686984) 59166 RON
39 1 1 LOCKING BUSH 2517-38 / NUT 10 MM TAPER (87243687750) 18341 RON
40 1 1 V-BELT PULLEY TBA 200-2-2517 (87240687741) 54357 RON
41 1 1 ELECTRIC MOTOR 400/3/50 3000UPM B3 (88013021890) 392698 RON
42 1 1 WELLENSCHUTZRING BL 0,88X40X369 (81312686950) 3689 RON
43 1 4 HEXAGON HEAD SCREW M 12X40 VERZ. (86103027770) 446 RON
45 1 1 STAR/DELTA SWITCH 5,5KW/M=6,5A(STRANG) (88054672560) 392698 RON
46 1 10 WASHER B 13 VERZ. (86305002508) 446 RON
47 1 3 HEXAGON NUT (86200017992) 446 RON
48 1 1 MOUNTING BRACKET BL 4,00X745,0X492,1 STA (81312686968) 93951 RON
49 1 4 SPRING LOCK WASHER B 12 VERZ. (86301000306) 446 RON
51 1 8 MEDIUM WASHER (86300016349) 446 RON
52 1 4 HEXAGON HEAD SCREW M 10X30 VERZ. (86103001232) 446 RON
55 1 1 PRESSURE VESSEL 270L / 16 BAR PLUS / KOM (81314687236) 78836 RON
56 1 3 RUBBER-METAL ANTI-VIBR. MOUNT 75X40 /M12 (87058037839) 955 RON
57 1 3 METAL END STUD M 12X55 RUNDUMBESCHICHTET (86168029746) 1340 RON
58 1 1 1312684990 - Indisponibil
59 1 1 4812684928 - Indisponibil
61 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
62 1 1 0901055033 - Indisponibil
63 1 1 0901055025 - Indisponibil
64 1 1 0901059667 - Indisponibil
65 1 4 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
66 1 4 COUNTERSUNK HEAD TAPPING SCREW ST 4,2X25 (86174001950) 446 RON
67 1 1 TUBE FITTING 1/2"I X 1/2"A L?SBAR (87871664190) 7157 RON
68 1 1 7805009300 - Indisponibil
69 1 1 Y-FITTING 3 X T?LLE RD 13 (87805684938) 3689 RON
70 1 4 7850035037 - Indisponibil
71 1 2 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
72 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
73 1 1 PACKING RIN 8-14-1,5 (87631027126) 446 RON
74 1 1 TEST FLANGE R 3/8" (87818026352) 7157 RON
75 1 1 Washer (86305002087) 446 RON
76 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
78 1 1 0901004170 - Indisponibil

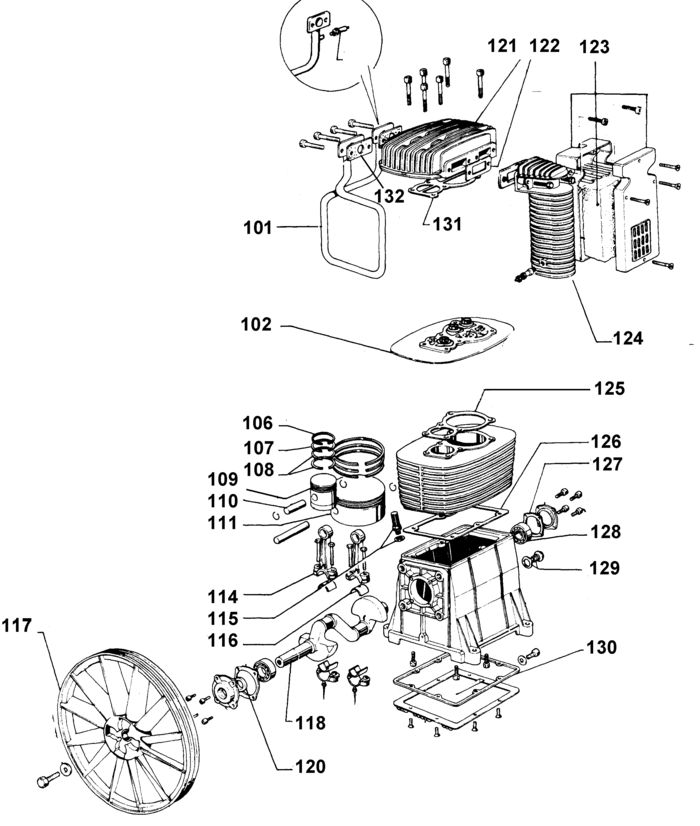

101 1 1 INTERMEDIATE COOLER ET (81319633231) 127394 RON
102 1 1 VALVE ASSEMBLY ET (81319156271) 171574 RON
106 1 1 PISTON RING RD 60X2 ET (81319164100) 13756 RON
107 1 1 PISTON RING RD 60X2 ET (81319164118) 15993 RON
108 1 2 OIL WIPING RING RD 60X4 ET (81319164401) 18341 RON
109 1 1 PISTON, HP RD 60 ET (81319163820) 39481 RON
110 1 1 GUDGEON PIN RD 20X50 ET (81315163940) 18341 RON
111 1 1 PISTON, LP RD 110 ET (81319163839) 9821 RON
114 1 2 CONNECTING ROD ET (81319165653) 68673 RON
115 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
116 1 2 CONROD BEARING SHELL ET (81319166722) 13756 RON
117 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
118 1 1 1315164733 - Indisponibil
120 1 1 ROTARY SHAFT SEAL 35x47x7 ET (87635638898) 8275 RON
121 1 1 CYLINDER HEAD ET (81319156263) 14839 RON
122 1 2 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
123 1 1 AIR FILTER ET (87825156318) 18341 RON
124 1 1 AFTERCOOLER ET (81313631792) 73930 RON
125 1 1 CYLINDER GASKET ET (81319156298) 13756 RON
126 1 1 CYLINDER FOOT GASKET ET (81319162018) 955 RON
127 1 2 PACKING, BEARING CAP ET (81319164525) 1564 RON
128 1 1 DEEP GROOVE BALL BEARING 35X72X17 6207 (87100165885) 26730 RON
129 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
130 1 1 CRANKCASE PACKING ET (81319164479) 19236 RON
131 1 1 CYLINDER HEAD GASKET ET (81319156301) 15993 RON
132 1 2 INTERMEDIATE COOLER ET (81319636290) 488 RON
