Top » Piese de schimb » PIESE METABO » 0010000807 10

850/11-15 - 0010000807 10 - EU 230V
[0010000807 10]
850/11-15 - 0010000807 10 - EU 230V
Click pentru a mari
Imagini suplimentare
850/11-15 - 0010000807 10 - EU 230V
Click pentru a mari
850/11-15 - 0010000807 10 - EU 230V
Click pentru a mari

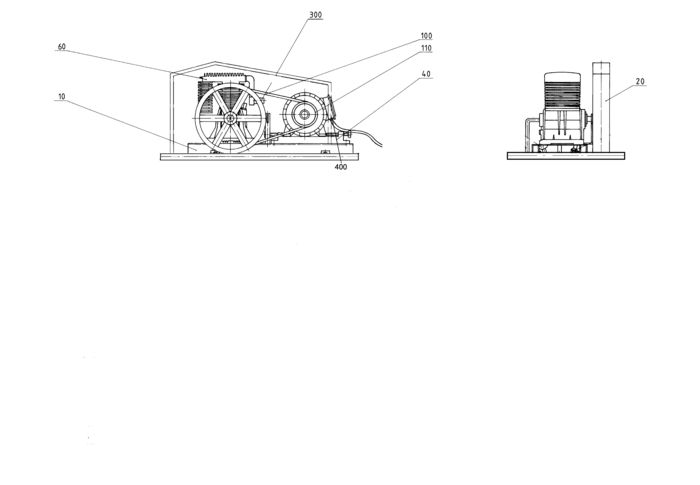

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
10 1 1 MOUNTING BRACKET AB 750 L B6000/B7000 (81001004901) 9821 RON
20 1 1 PROTECTIVE GRATING NS 45/50/59 B6000/B70 (81001010693) 127394 RON
40 1 1 SLIDING RAIL 400 (81310086173) 18341 RON
60 1 1 COMPRESSOR PUMP B 7000 (81313030560) 1180893 RON
100 1 1 V-BELT SPA 13X2000 (87230103881) 10288 RON
110 1 1 7240103863 - Indisponibil
300 1 1 SOLENOID VALVE (341148420) 78180 RON
400 1 1 ELECTRIC MOTOR 400/3/50 3000UPM B3 (88013021890) 392698 RON
1001 1 1 1310165448 - Indisponibil
1002 1 1 CYLINDER ET (81310165561) 639324 RON
1003 1 1 CYLINDER HEAD ET (81319156328) 171574 RON
1005 1 1 HOUSING LID ET (81310164611) 64311 RON
1006 1 1 VALVE ASSEMBLY ET (81319156336) 197187 RON
1007 1 1 CONROD BEARING SHELL ET (81319166730) 15993 RON
1008 1 1 CONNECTING ROD ET (81319165661) 64311 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
1011 1 1 PISTON, HP RD 70 ET (81319163847) 93951 RON
1012 1 1 1319163855 - Indisponibil
1013 1 1 GUDGEON PIN RD 25X56 ET (81315163966) 19236 RON
1014 1 1 GUDGEON PIN RD 25X120 ET (81315163974) 26730 RON
1015 1 1 RETAINING RING FOR SHAFTS 25X1,2 (86400016664) 446 RON
1016 1 1 PISTON RING RD 70X2 ET (81319164169) 15993 RON
1017 1 1 PISTON RING RD 70X2 ET (81319164177) 15993 RON
1018 1 1 OIL WIPING RING RD 70X4 ET (81319164185) 18341 RON
1023 1 1 AIR FILTER ASSEMBLY ET (87825637707) 14839 RON
1024 1 1 AFTERCOOLER ET (81313631792) 73930 RON
1027 1 1 1319161780 - Indisponibil
1028 1 1 INTERMEDIATE COOLER ET (81319633258) 14839 RON
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 1/2" ET (81319155917) 26730 RON
1034 1 1 ROTARY SHAFT SEAL 45x60x7 ET (87635638383) 955 RON
1060 1 1 CRANKCASE PACKING ET (81319164487) 26730 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162026) 13756 RON
1062 1 1 CYLINDER GASKET ET (81319156352) 18341 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156360) 13756 RON
1065 1 1 PACKING,BEARG.CAP, PINION END ET (81319165858) 3689 RON
1066 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
1067 1 1 PACKING, INTERMEDIATE COOLER ET (81319161755) 5926 RON
1116 1 1 PISTON RING RD 135X3 ET (81319164371) 21361 RON
1117 1 1 PISTON RING RD 135X3 ET (81319164380) 24046 RON
1118 1 1 OIL WIPING RING RD 135X5 ET (81319164398) 34448 RON
