Top » Piese de schimb » PIESE METABO » 08475180

HS 8475 S - 08475180 - CH 230V
[08475180]
HS 8475 S - 08475180 - CH 230V
Click pentru a mari
Imagini suplimentare
HS 8475 S - 08475180 - CH 230V
Click pentru a mari

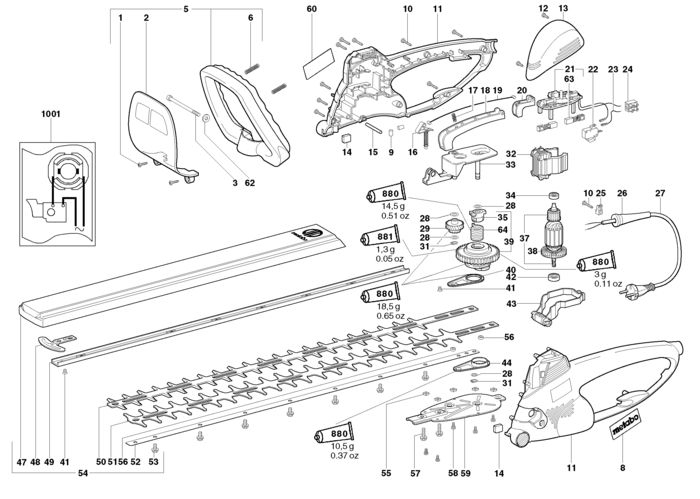

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Self-tap. fill. h. screw (141118730) 446 RON
2 1 1 Hand guard (343371690) 190 RON
3 1 1 Tight-fit screw (341702990) 446 RON
5 1 1 Bowhandle compl. (316026420) 11519 RON
6 1 2 Pressure spring (342001180) 446 RON
8 1 1 M-Label,08 52x22 (338122160) 446 RON
9 1 2 Rubber plug (344092220) 446 RON
10 1 11 Self-tap. fill. h. screw (141117060) 781 RON
11 1 1 Housing (343371930) 11519 RON
12 1 2 Self-tap. fill. h. screw (141118730) 446 RON
13 1 1 Cover (343378060) 2124 RON
14 1 2 Felt seal (344070660) 446 RON
15 1 1 Pressure pin (341055110) 446 RON
16 1 1 QUICK STOP COMPL. (316026380) 2124 RON
17 1 1 Pressure spring (342002440) 446 RON
18 1 1 Switch trigger (343378030) 446 RON
19 1 1 Tow (345000130) 1340 RON
20 1 1 Switch slide (343378050) 446 RON
21 1 1 Brush holder cpl. (316026870) 11519 RON
22 1 1 Switch (343406960) 3018 RON
23 1 1 Strand cpl. AWG18SW (344493000) 781 RON
24 1 1 Terminal rail (343050140) 781 RON
25 1 1 Cable clip (343362490) 781 RON
26 1 1 Cable sleeve (344100970) 781 RON
27 1 1 Cable with plug (344489600) 4249 RON
28 1 4 Washer (141152400) 446 RON
29 1 1 Spur gear cpl. (316026700) 19236 RON
31 1 1 Circlip (141155400) 446 RON
32 1 1 Field coil 220 V (311005960) 21361 RON
33 1 1 Bearing support cpl. (316027220) 13756 RON
34 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
35 1 1 Driving hub (341005590) 4249 RON
37 1 1 Armature cpl. 230 V (310007560) 54357 RON
38 1 1 Fan (330000850) 781 RON
39 1 1 Safety clutch (316027210) 39481 RON
40 1 1 Con rod (339180380) 2459 RON
41 1 2 Countersunk screw (141121710) 446 RON
42 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
43 1 1 Shift fork (343371680) 3018 RON
44 1 1 Con rod (339180370) 2459 RON
47 1 1 Storage container (343372220) 5926 RON
48 1 1 Hand protector cpl (316027170) 5479 RON
49 1 1 KNIFE HOLDER W. SCREW (316027200) 11519 RON
50 1 1 Upper blade (344148130) 30980 RON
51 1 1 Lower blade (344148160) 11519 RON
52 1 1 Pressure strip (339128360) 5479 RON
53 1 7 Hexagon head screw (141120210) 446 RON
54 1 1 KNIFE COMPL. (316026720) 54357 RON
55 1 5 Square nut (141131210) 446 RON
56 1 2 Spacer bush (341055290) 781 RON
57 1 2 Hexagon head screw (141119780) 781 RON
58 1 5 Fillister head screw (141119860) 781 RON
59 1 1 Cover (339128270) 2124 RON
60 1 1 Rating plate (338035250) 446 RON
62 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
63 1 1 Carbon brush (316033910) Indisponibil Indisponibil
64 1 1 Spring (342021590) 1340 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
881 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338501430 - Indisponibil
