Top » Piese de schimb » PIESE METABO » 08355000

HS 8355 S - 08355000 - EU 230V
[08355000]
HS 8355 S - 08355000 - EU 230V
Click pentru a mari
Imagini suplimentare
HS 8355 S - 08355000 - EU 230V
Click pentru a mari

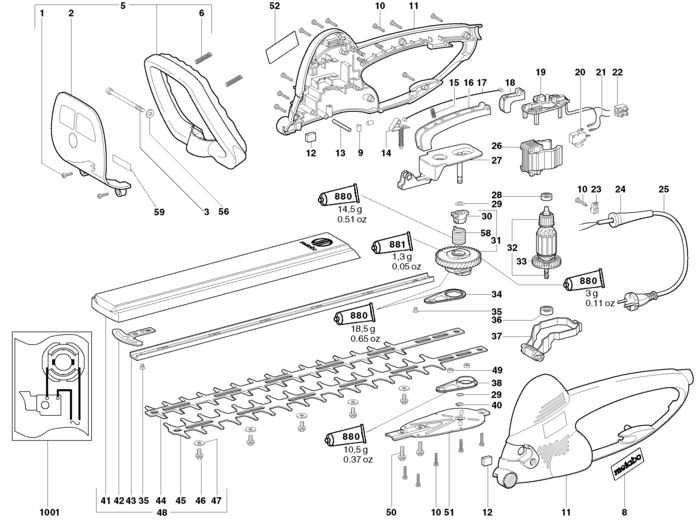

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Self-tap. fill. h. screw (141118730) 446 RON
2 1 1 Hand guard (343371690) 190 RON
3 1 1 Tight-fit screw (341702990) 446 RON
5 1 1 Bowhandle compl. (316026420) 11519 RON
6 1 2 Pressure spring (342001180) 446 RON
8 1 1 Metabo label (338116940) 446 RON
9 1 2 Rubber plug (344092220) 446 RON
10 1 16 Self-tap. fill. h. screw (141117060) 781 RON
11 1 1 Housing (343371630) 19236 RON
12 1 2 Felt seal (344070660) 446 RON
13 1 1 Pressure pin (341055110) 446 RON
14 1 1 QUICK STOP COMPL. (316026380) 2124 RON
15 1 1 Pressure spring (342002440) 446 RON
16 1 1 Switch trigger (343378030) 446 RON
17 1 1 Tow (345000130) 1340 RON
18 1 1 Switch slide (343378050) 446 RON
19 1 1 Brush holder module (316026310) 7157 RON
20 1 1 Switch (343406960) 3018 RON
21 1 1 Strand cpl. AWG18SW (344493000) 781 RON
22 1 1 Terminal rail (343050140) 781 RON
23 1 1 Cable clip (343362490) 781 RON
24 1 1 Cable sleeve (344100970) 781 RON
25 1 1 Cable with plug (344492980) 488 RON
26 1 1 Field coil 230 V (311009510) 19236 RON
27 1 1 Bearing support cpl. (316027160) 13756 RON
28 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
29 1 2 Washer (141152400) 446 RON
30 1 1 Driving hub (341005590) 4249 RON
31 1 1 Intermediate gear cpl. (316026450) 2848 RON
32 1 1 Armature cpl. 230 V (310007520) 39481 RON
33 1 1 Fan (330000850) 781 RON
34 1 1 Con rod (339180390) 2459 RON
35 1 2 Countersunk screw (141121710) 446 RON
36 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
37 1 1 Shift fork (343371680) 3018 RON
38 1 1 Con rod (339180360) 2459 RON
40 1 1 Circlip (141155400) 446 RON
41 1 1 Storage container (343371820) 4249 RON
42 1 1 Hand protector cpl (316027170) 5479 RON
43 1 1 KNIFE HOLDER W. SCREW (316027140) 955 RON
44 1 1 Upper blade (344147720) 15993 RON
45 1 1 Lower blade (344147750) 11519 RON
46 1 5 Hexagon head screw (141120210) 446 RON
47 1 5 Washer (339006160) 446 RON
48 1 1 KNIFE COMPL. (316026480) 30980 RON
49 1 2 Spacer bush (341060030) 781 RON
50 1 2 Hexagon head screw (141119780) 781 RON
51 1 1 Cover (339128130) 2124 RON
52 1 1 Rating plate (338034250) 446 RON
56 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
58 1 1 Spring (342021590) 1340 RON
59 1 1 399999990 - Indisponibil
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
881 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338501430 - Indisponibil
