Top » Piese de schimb » PIESE METABO » 00790002

790 Drill stand - 00790002 - -
[00790002]
790 Drill stand - 00790002 - -
Click pentru a mari
Imagini suplimentare
790 Drill stand - 00790002 - -
Click pentru a mari

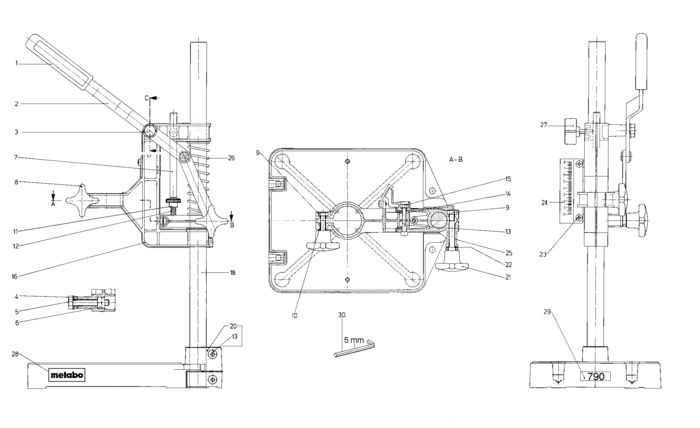

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Handle (343351510) 3018 RON
2 1 1 Lever cpl. (316011310) 5926 RON
3 1 1 Hexagon head screw (141113440) 781 RON
4 1 1 Washer (141151140) 105 RON
5 1 1 Annular spring (342020170) 781 RON
6 1 1 Hexagonal lock nut (141131110) 446 RON
7 1 1 Guide bolt (341513120) 2124 RON
8 1 1 Star knob (341111530) 10288 RON
9 1 2 Hexagonal nut (141131010) 446 RON
10 1 1 Washer (141150800) 446 RON
11 1 1 Knurled-screw (141119120) 1564 RON
12 1 1 Pressure spring (342000040) 446 RON
13 1 2 Cap screw (141113920) 105 RON
14 1 1 Sliding piece (343357560) 1564 RON
15 1 1 Hexagonal nut (141130100) 446 RON
16 1 1 Holder (315409180) 41718 RON
18 1 1 Column (341511460) 19236 RON
20 1 1 Drilling table cmpl (316011220) 21361 RON
21 1 1 Star knob (341111520) 3018 RON
22 1 1 Washer (141152400) 446 RON
23 1 2 Self-tap. fill. h. screw (141116130) 446 RON
24 1 1 Scale (344350110) 2124 RON
25 1 1 Guide piece (315409170) 15993 RON
26 1 1 Pressure spring (342000330) 1564 RON
27 1 1 Thumbscrew (341111630) 781 RON
28 1 1 Metabo label (338123580) 105 RON
29 1 1 Rating plate 790 (338111700) 781 RON
30 1 1 Cranked wrench key (344161520) 781 RON
