Top » Piese de schimb » PIESE METABO » 06701000

W 780 - 06701000 - EU 230V
[06701000]
W 780 - 06701000 - EU 230V
Click pentru a mari
Imagini suplimentare
W 780 - 06701000 - EU 230V
Click pentru a mari

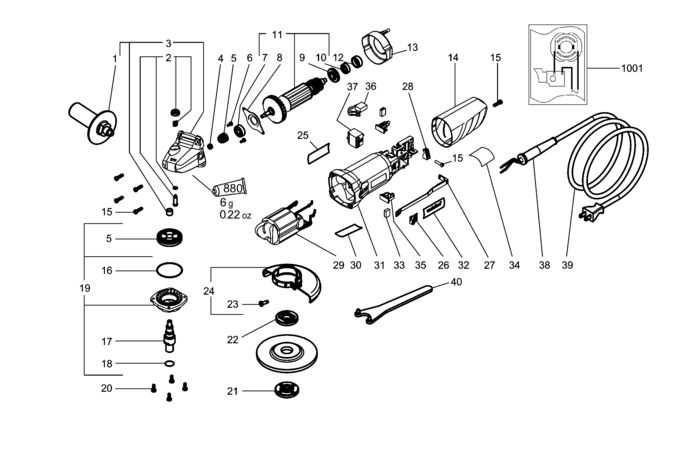

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Handle cpl. (314000540) 488 RON
2 1 1 Spindle stop compl. (316040610) 1340 RON
3 1 1 Gear housing compl. (316046070) Indisponibil Indisponibil
4 1 1 Hexagonal nut (141130100) 446 RON
5 1 1 Bevel gear and pinion (316047700) 7157 RON
6 1 2 Fillister head screw (141110460) 446 RON
7 1 1 Ball bearing,8x22x7 (143115180) 2124 RON
8 1 1 Fixed bearing cover (315417490) 669 RON
9 1 1 Sealing washer (343392740) 190 RON
10 1 1 Ball bearing, 6x19x6 (143115040) 2459 RON
11 1 1 Armature compl.,230V (310009770) 15993 RON
12 1 1 Rubber bushing (344095260) 781 RON
13 1 1 Baffle (343399200) 446 RON
14 1 1 Motor cap (343399190) 1564 RON
15 1 6 Self-tap. fill. h. screw (141116020) 781 RON
16 1 1 O-ring 48 x 1 (344097550) Indisponibil Indisponibil
17 1 1 Spindle M14 (341161150) 3018 RON
18 1 1 O-ring (143192540) 446 RON
19 1 1 Flange compl. (341032120) 10288 RON
20 1 4 Fill. head screw(DIN 7985) (141120070) 446 RON
21 1 1 Flange nut (341106900) 3689 RON
22 1 1 Clamping flange (341031160) 488 RON
23 1 1 Fill. head screw(DIN 7985) (141121640) 446 RON
24 1 1 Wheel guard compl.,?115 (339203660) 3689 RON
25 1 1 M-Label,08 52x22 (338122160) 446 RON
26 1 1 Switch slide (343392080) 669 RON
27 1 1 Switch rod (343399170) 446 RON
28 1 1 Cable clip (343362490) 781 RON
29 1 1 Field coil compl.,230V (311011230) 10288 RON
30 1 1 Rating plate (338054190) 446 RON
31 1 1 Motor housing (343399180) 3689 RON
32 1 1 Metabo plate (338122540) 446 RON
33 1 1 Carbon brush set cut-off (316047440) 190 RON
34 1 1 399999990 - Indisponibil
35 1 2 Brush holder (343000870) 1340 RON
36 1 1 Condenser (343254290) 669 RON
37 1 1 Switch (343408260) 2124 RON
38 1 1 Cable sleeve (344097360) 669 RON
39 1 1 Cable with plug (344498420) 3018 RON
40 1 1 Pin spanner (344160830) 190 RON
880 1 1 Grease 100G (344130910) 5926 RON
1001 1 1 338504470 - Indisponibil
