Top » Piese de schimb » PIESE METABO » 07532000

B 7532/4 - 07532000 - EU 230V
[07532000]
B 7532/4 - 07532000 - EU 230V
Click pentru a mari
Imagini suplimentare
B 7532/4 - 07532000 - EU 230V
Click pentru a mari

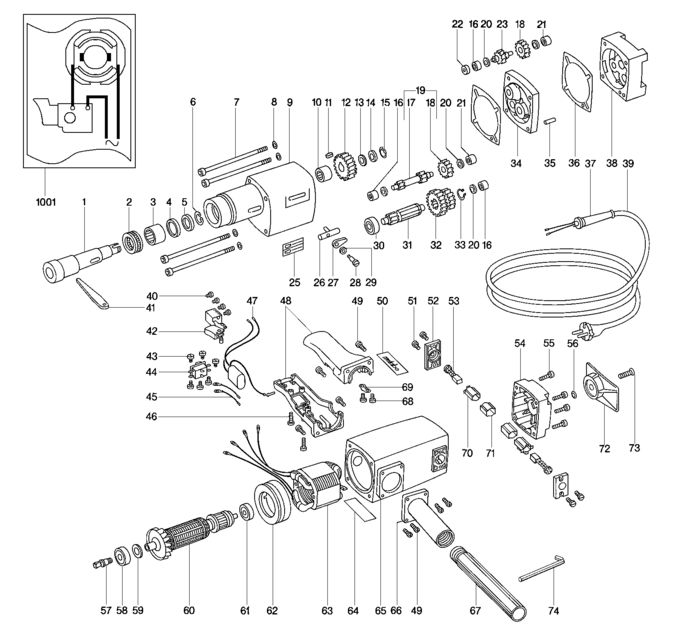

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Spindle (341603080) 117663 RON
2 1 1 Axial grooved ball bearing (143110880) 24046 RON
3 1 1 Needle bearing (320050290) 15993 RON
4 1 1 Sealing ring (339210680) 4249 RON
5 1 1 Sealing ring (339210690) 5479 RON
6 1 1 141180370 - Indisponibil
7 1 4 Fillister head screw (141120450) 1564 RON
8 1 4 Spring washer (141150270) 446 RON
9 1 1 Gear housing (315103450) 137236 RON
10 1 1 Needle bearing (320050300) 21361 RON
11 1 1 Adjusting spring (341144290) 105 RON
12 1 1 Spur gear (340031970) 2848 RON
13 1 1 Washer (339125340) 105 RON
14 1 1 Washer (339125330) 1340 RON
15 1 1 Retaining ring (141180130) 446 RON
16 1 1 Needle bearing (320050310) 955 RON
17 1 1 Intermediate gear (340002820) 30980 RON
18 1 1 Spur gear (340031990) 2848 RON
19 1 1 Intermediate gear cpl. (316020830) 59166 RON
20 1 4 Washer (339125290) 446 RON
21 1 1 Needle sleeve (143113660) 2124 RON
22 1 1 Ball bearing (143113970) 10288 RON
23 1 1 Intermediate gear (340002830) 39481 RON
25 1 1 338107350 - Indisponibil
26 1 1 Control rod (341144250) 955 RON
27 1 1 Shift fork (343365490) 955 RON
28 1 1 Flat headed screw (141120440) 105 RON
29 1 1 Washer (339125320) 105 RON
30 1 1 Grooved ball bearing (143113980) 955 RON
31 1 1 Intermediate gear (340002810) 54357 RON
32 1 1 Intermediate gear (340031980) 108379 RON
33 1 1 Retaining ring (141180140) 446 RON
34 1 1 Intermediate flange (315201780) 49212 RON
35 1 1 Cylindrical pin (141160410) 446 RON
36 1 2 Gasket (339210710) 2459 RON
37 1 1 Cable sleeve (344100760) 190 RON
38 1 1 Gear flange (315201770) 59166 RON
39 1 1 344480490 - Indisponibil
40 1 4 Fillister head screw (141118850) 446 RON
41 1 1 642396000 - Indisponibil
42 1 1 Switch (343401160) 8275 RON
43 1 6 Fillister head screw (141120480) 446 RON
44 1 1 Change-over switch (343404980) 7157 RON
45 1 2 Strand cpl. AWG16BR (344489820) 105 RON
46 1 2 Self-tapp. cap screw (141117930) 446 RON
47 1 1 Condenser (343253620) 955 RON
48 1 1 Handle (343365480) 21361 RON
49 1 8 Cap screw (141113710) 781 RON
50 1 1 338115630 - Indisponibil
51 1 4 141113190 - Indisponibil
52 1 2 Brush-holder cap (343365460) 3018 RON
53 1 1 Carbon brush (316033700) 10288 RON
54 1 1 Housing cap (315412860) 33553 RON
55 1 4 Cap screw (141113730) 781 RON
56 1 1 O-ring (344093470) 1340 RON
57 1 1 Pinion (340031960) 2848 RON
58 1 1 BALL BEARING, 15x32x9 (143110220) Indisponibil Indisponibil
59 1 1 Shim (141154380) 1340 RON
60 1 1 Armature cpl. (310005990) 127394 RON
61 1 1 Ball bearing, 9x26x8 (143110060) 5479 RON
62 1 1 Baffle (339150860) 5479 RON
63 1 1 Field coil assembly (311008160) 64311 RON
64 1 1 Rating plate (338022810) 446 RON
65 1 1 Motor housing (315012410) 93951 RON
66 1 1 Flange (315412850) 2848 RON
67 1 1 314000620 - Indisponibil
68 1 2 Self-tap. fill. h. screw (141120430) 446 RON
69 1 1 Cable clip (339180340) 781 RON
70 1 2 Brush holder (343000690) 3689 RON
71 1 2 Brush-holder insulation (343365470) 3018 RON
72 1 1 Breast plate (316020820) 21361 RON
73 1 1 Fillister head screw (341702280) 3018 RON
74 1 1 Hexagonal key (344161530) 781 RON
1001 1 1 338503160 - Indisponibil
