BW 750 HW/7,40 DNB - 0190707500 11 - 3 / 400V/50Hz
[0190707500 11]
BW 750 HW/7,40 DNB - 0190707500 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
BW 750 HW/7,40 DNB - 0190707500 11 - 3 / 400V/50Hz
Click pentru a mari

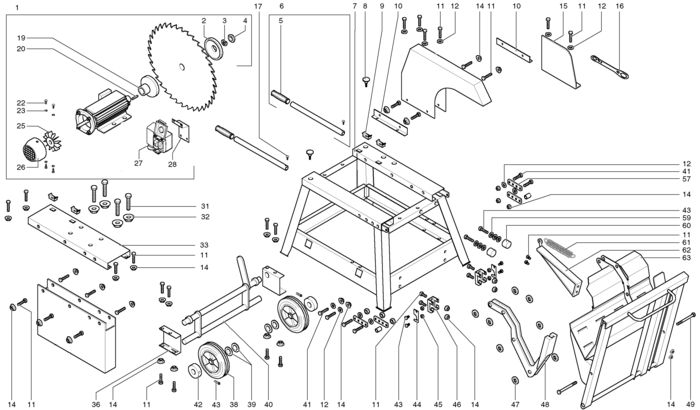

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR, CIRCULAR SAW BENCH 7,40 DNB BW 75 (80100014025) 343820 RON
2 1 1 BLADE COLLAR, OUTER RD 140 SCHWARZ RAL 9 (81380407686) 15993 RON
3 1 1 SPRING LOCK WASHER B 20 VERZ. (86301047329) 446 RON
4 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
5 1 2 HANDLE BAR SLEEVE RD 18X100 (87008144944) 2124 RON
6 1 2 HANDLE BAR (81001144959) 955 RON
7 1 1 BENCH STAND BW 750 GEPULVERT (81010681681) 14839 RON
8 1 2 STARKNOB SCREW RD40/M6X23 (DIN 933) VERZ (87001017769) 781 RON
9 1 4 CAGE NUT M 8 BLECHST?RKE 1,8-3,2 (86264139374) 781 RON
10 1 2 BRACKET, SAW GUARD BL 2,99X88X260 (81382407462) 7157 RON
11 1 32 Hex head screw (86103001178) Indisponibil Indisponibil
12 1 10 Washer (86300016322) Indisponibil Indisponibil
14 1 28 Flange nut (6209110995) 446 RON
15 1 1 FLANGE GUARD BL 1,50X170X190 (81382407446) 4249 RON
16 1 1 Key (81492102829) 3689 RON
17 1 2 HEXAGON HEAD TAPPING SCREW B 5,5X13 VERZ (86171025867) 446 RON
19 1 1 BLADE COLLAR, INNER RD 140 (81380407678) 19236 RON
20 1 1 FEATHER KEY A 8X5X36 (86721046182) 446 RON
22 1 4 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
23 1 4 Serrated lock washer (86304084047) 446 RON
25 1 1 FAN WING 180X16 ET (81381663708) 955 RON
26 1 1 FAN COVER ? 192 ET (81382663710) 11519 RON
27 1 1 8132719560 - Indisponibil
28 1 1 SWITCH PLATE BL 1,5X108X216 Z-F?RMIG (81332036064) 2124 RON
31 1 4 HEXAGON HEAD SCREW M 10X30 VERZ. (86103001232) 446 RON
32 1 4 FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF (86209675984) 446 RON
33 1 1 MOTOR MOUNTING BRACKET BL 2,99X347X720 (81382407403) 24046 RON
36 1 2 WHEEL SET MOUNTING BRACKET BL 2,99X220X1 (81382407667) 488 RON
38 1 2 WHEEL, PLASTIC RD 250 NABE 20,6+0,4 (87270033053) 955 RON
39 1 4 MEDIUM WASHER (86300087696) 446 RON
40 1 1 FRAME, WHEEL SET (81010407601) 30980 RON
41 1 4 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
42 1 2 SHAFT COLLAR A 20,5 VERZ. (86410007132) 2124 RON
43 1 8 Hex head screw (86103001127) 446 RON
44 1 2 ROCKER RETAINER BL 2,00X33X80 (81482407753) 781 RON
45 1 4 Flange nut (86209114230) 446 RON
46 1 2 ANGLE BRACKET, ROCKER BEARING BL 2,99X14 (81482407486) 1564 RON
47 1 8 SERRATED EDGE WASHER ZA 16 (86403681731) 446 RON
48 1 1 KERF PLATE, PLASTIC BW750 (81381680386) 13756 RON
49 1 2 HEXAGON HEAD SCREW M 8X85 VERZ. (86103122986) 781 RON
57 1 4 BRACKET, ROCKER LIMITOR FL 20X4X130 (81482407702) 1564 RON
59 1 6 Washer (86305002087) 446 RON
60 1 2 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
61 1 1 TENSION SPRING RD 2,5X20X205 (87051407690) 8275 RON
62 1 1 BRACKET, TENSION SPRING BL 2,99X192X49 (81382407470) 955 RON
63 1 1 ROCKER BW 750 GEPULVERT (81010681754) 14839 RON
