Top » Piese de schimb » PIESE METABO » 0100707500 11

BW 750 - 0100707500 11 - EU 230V
[0100707500 11]
BW 750 - 0100707500 11 - EU 230V
Click pentru a mari
Imagini suplimentare
BW 750 - 0100707500 11 - EU 230V
Click pentru a mari
BW 750 - 0100707500 11 - EU 230V
Click pentru a mari
BW 750 - 0100707500 11 - EU 230V
Click pentru a mari

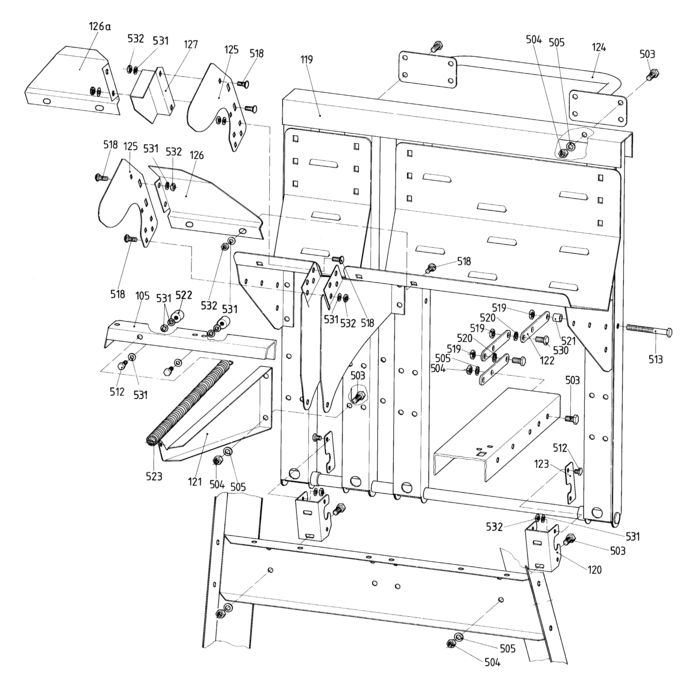

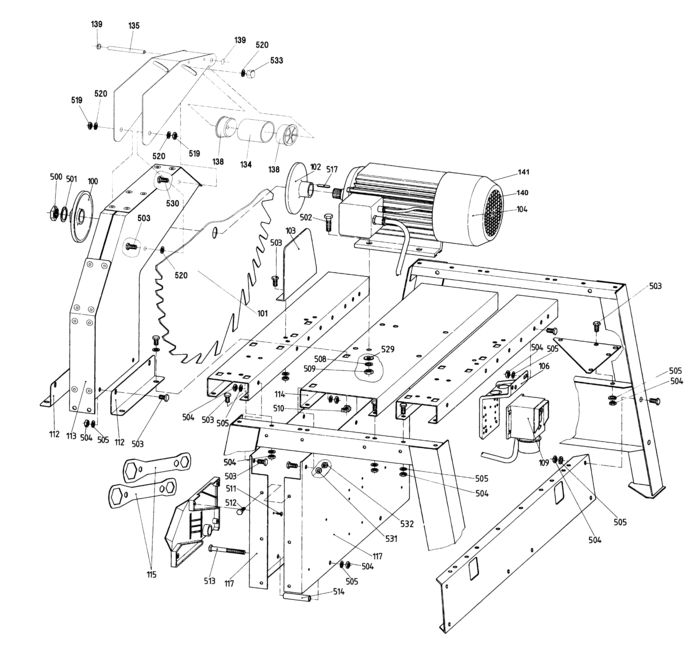

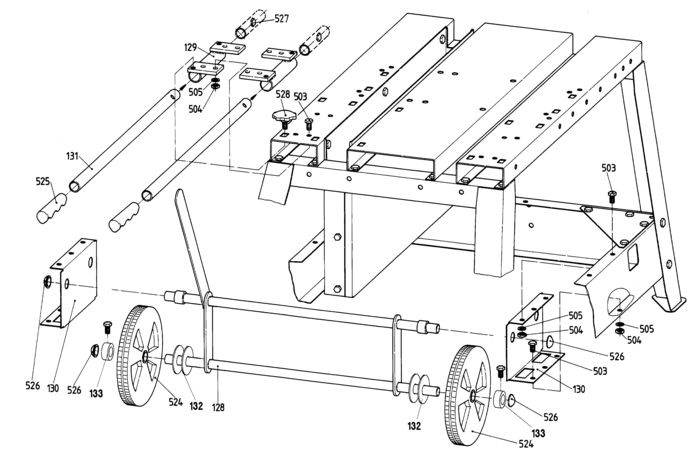

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
100 1 1 BLADE COLLAR, OUTER RD 140 SCHWARZ RAL 9 (81380407686) 15993 RON
101 1 1 0910003399 - Indisponibil
102 1 1 BLADE COLLAR, INNER RD 140 (81380407678) 19236 RON
103 1 1 FLANGE GUARD BL 1,50X170X190 (81382407446) 4249 RON
104 1 1 MOTOR, CIRCULAR SAW BENCH 7,40 DNB BW 75 (80100014025) 343820 RON
106 1 1 SWITCH PLATE BL 1,5X108X216 Z-F?RMIG (81332036064) 2124 RON
109 1 1 8132719560 - Indisponibil
112 1 1 BRACKET, SAW GUARD BL 2,99X88X260 (81382407462) 7157 RON
113 1 1 1010140036 - Indisponibil
114 1 1 MOTOR MOUNTING BRACKET BL 2,99X347X720 (81382407403) 24046 RON
115 1 1 Key (81492102829) 3689 RON
117 1 1 SAW GUARD BL 1,25X416X745 UNTEN (81382407454) 15993 RON
119 1 1 1010407598 - Indisponibil
120 1 1 ANGLE BRACKET, ROCKER BEARING BL 2,99X14 (81482407486) 1564 RON
121 1 1 BRACKET, TENSION SPRING BL 2,99X192X49 (81382407470) 955 RON
122 1 1 BRACKET, ROCKER LIMITOR FL 20X4X130 (81482407702) 1564 RON
123 1 1 ROCKER RETAINER BL 2,00X33X80 (81482407753) 781 RON
124 1 1 1010407741 - Indisponibil
125 1 1 ROCKER PROJECTION BL 2,99X129X280 (81382407586) 4249 RON
126 1 1 1382407772 - Indisponibil
127 1 1 1382407578 - Indisponibil
128 1 1 FRAME, WHEEL SET (81010407601) 30980 RON
129 1 1 1010407644 - Indisponibil
130 1 1 WHEEL SET MOUNTING BRACKET BL 2,99X220X1 (81382407667) 488 RON
131 1 1 HANDLE BAR (81001144959) 955 RON
132 1 1 MEDIUM WASHER (86300087696) 446 RON
133 1 1 SHAFT COLLAR A 20,5 VERZ. (86410007132) 2124 RON
134 1 1 ROLLER BEARING (81381216256) 781 RON
135 1 1 1485416737 - Indisponibil
138 1 1 ROLLER BEARING (81381216256) 781 RON
139 1 1 STARLOCK WITH CAP RD 8 (87016123379) 446 RON
140 1 1 FAN WING 180X16 ET (81381663708) 955 RON
141 1 1 FAN COVER ? 192 ET (81382663710) 11519 RON
500 1 1 HEXAGON NUT M 20X1,5 VERZ. (86200046208) 781 RON
501 1 1 SPRING LOCK WASHER B 20 VERZ. (86301047329) 446 RON
502 1 1 HEXAGON HEAD SCREW M 10X30 VERZ. (86103001232) 446 RON
503 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
504 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
505 1 1 Serrated lock washer (86304001745) 446 RON
508 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
509 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
510 1 1 CAGE NUT M 8 BLECHST?RKE 1,8-3,2 (86264139374) 781 RON
511 1 1 Fillister head screw (86172016683) 446 RON
512 1 1 Hex head screw (86103001127) 446 RON
513 1 1 HEXAGON HEAD SCREW M 8X90 VERZ. (86101022046) 781 RON
514 1 1 SPACER SLEEVE RD 11/8X70 VERZ. (86442084660) 105 RON
517 1 1 FEATHER KEY A 8X5X36 (86721046182) 446 RON
518 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
519 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
520 1 1 Washer (86300016322) Indisponibil Indisponibil
521 1 1 6442084627 - Indisponibil
522 1 1 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
523 1 1 TENSION SPRING RD 2,5X20X205 (87051407690) 8275 RON
524 1 1 WHEEL, PLASTIC RD 250 NABE 20,6+0,4 (87270033053) 955 RON
525 1 1 HANDLE BAR SLEEVE RD 18X100 (87008144944) 2124 RON
526 1 1 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
527 1 1 HEXAGON HEAD TAPPING SCREW B 5,5X13 VERZ (86171025867) 446 RON
528 1 1 STARKNOB SCREW RD40/M8X28 (DIN 933) VERZ (87001017777) 105 RON
529 1 1 MEDIUM WASHER (86300016349) 446 RON
530 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
531 1 1 Washer (86305002087) 446 RON
532 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
533 1 1 CAP NUT M 8 VERZ. (86201002131) 446 RON
