LF 724 S - 00724420 - US 120V
[00724420]
LF 724 S - 00724420 - US 120V
Click pentru a mari
Imagini suplimentare
LF 724 S - 00724420 - US 120V
Click pentru a mari

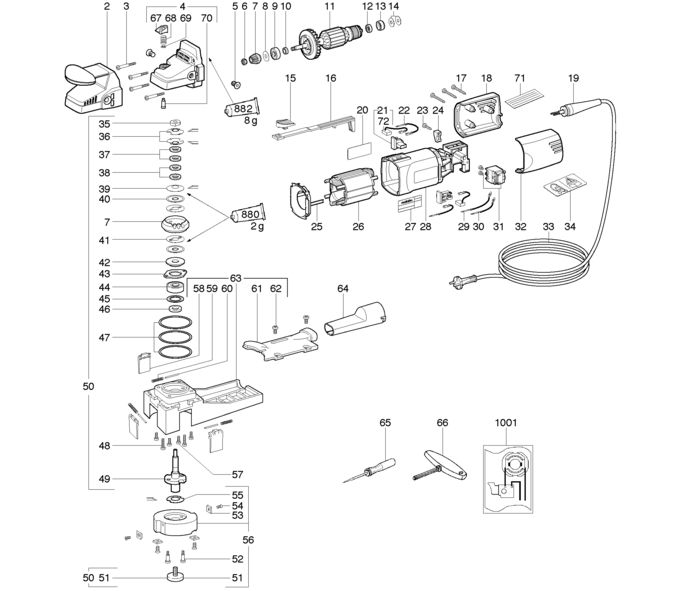

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 HANDLE COVER COMPL. (341112540) 4249 RON
3 1 4 Tight-fit screw (341701490) 446 RON
4 1 1 Gear housing cpl. (316028730) 955 RON
5 1 2 Countersunk screw (141121760) 446 RON
6 1 1 Hexagon nut w.recess (341100940) 781 RON
7 1 1 Bevel gear (316018150) 24046 RON
8 1 1 Washer (339006810) 446 RON
9 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
10 1 1 Bush (341603620) 446 RON
11 1 1 Armature cpl. 120V (310008250) 49212 RON
12 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
13 1 1 Rubber bushing (344095260) 781 RON
14 1 2 Washer (141153340) 446 RON
15 1 1 Switch slide (343394180) 669 RON
16 1 1 Switch rod (343373640) 781 RON
17 1 3 Self-tap. fill. h. screw (141116990) 781 RON
18 1 1 Housing with cover (343374410) 2124 RON
19 1 1 Cable sleeve (344101140) 105 RON
20 1 1 M-Label,08 52x22 (338122160) 446 RON
21 1 1 Brush holder cpl.,120V (316028700) 7157 RON
22 1 2 Cable strand (344493960) 781 RON
23 1 1 Self-tap. fill. h. screw (141116020) 781 RON
24 1 1 Cable clip (343362490) 781 RON
25 1 1 Baffle (339150930) 781 RON
26 1 1 Field coil 230V / 120 V (311009940) 8275 RON
27 1 1 Rating plate (338041190) 446 RON
28 1 1 Motor housing (315012680) 488 RON
29 1 1 Strand (344493950) 446 RON
30 1 1 Strand (344493970) 446 RON
31 1 1 Switch (343406730) 7157 RON
32 1 1 Housing with cover (343374420) 2124 RON
33 1 1 Cable with Ul-CSA-plug (344494030) 955 RON
34 1 1 Indication label (338121250) 446 RON
35 1 1 Nut (341101380) 105 RON
36 1 2 Cup spring (342070350) 1564 RON
37 1 2 Washer 10,2 X 14,8X 0,1 (141152300) 781 RON
38 1 2 Washer 10,2 X 14,8X 0,2 (141151120) 446 RON
39 1 1 Cup spring (342070320) 1564 RON
40 1 2 Friction washer (339032790) 781 RON
41 1 2 Friction washer (339034150) 781 RON
42 1 1 Intermediate piece (341051480) 105 RON
43 1 1 Bearing cover (339190630) 1340 RON
44 1 1 Ball bearing, 10x26x8 (143113880) 5479 RON
45 1 1 Washer (339004010) 446 RON
46 1 1 Felt ring (344070230) 781 RON
47 1 3 Compensating Washer (339060160) 781 RON
48 1 2 Fillister head screw (141119870) 446 RON
49 1 1 Spindle (341603500) 41718 RON
50 1 1 Safety clutch (316028940) 78180 RON
51 1 1 Adjusting screw (341702800) 2124 RON
52 1 2 Flat headed screw (341702900) 105 RON
53 1 1 631660000 - Indisponibil
54 1 4 Countersunk screw (341702810) 2124 RON
55 1 1 Cup spring (342070550) 1340 RON
56 1 1 KNIFE HOLDER COMPL. (316026770) 83437 RON
57 1 4 Fillister head screw (141119860) 781 RON
58 1 3 Protecting cap (343374060) Indisponibil Indisponibil
59 1 3 Pressure spring (342002680) 446 RON
60 1 3 Pin (341520040) 446 RON
61 1 1 Extraction cover (343371380) 1340 RON
62 1 2 Fillister head screw (141110590) 446 RON
63 1 1 Table cpl. (316028950) Indisponibil Indisponibil
64 1 1 Exhaust nozzle (343371390) Indisponibil Indisponibil
65 1 1 Pick w. handle (344162540) 1340 RON
66 1 1 Universal spanner (344162450) 7157 RON
67 1 1 Push button, red (343394190) 669 RON
68 1 1 Pressure spring (342001550) Indisponibil Indisponibil
69 1 1 Sealing washer (339006520) Indisponibil Indisponibil
70 1 1 Bolt (341513790) 1564 RON
71 1 1 Warning label (338109940) 1564 RON
72 1 1 Set carbon brush (316034930) 5479 RON
880 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
882 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
1001 1 1 338502390 - Indisponibil
