Top » Piese de schimb » PIESE METABO » 00714001

LF 714 S - 00714001 - EU 230V
[00714001]
LF 714 S - 00714001 - EU 230V
Click pentru a mari
Imagini suplimentare
LF 714 S - 00714001 - EU 230V
Click pentru a mari

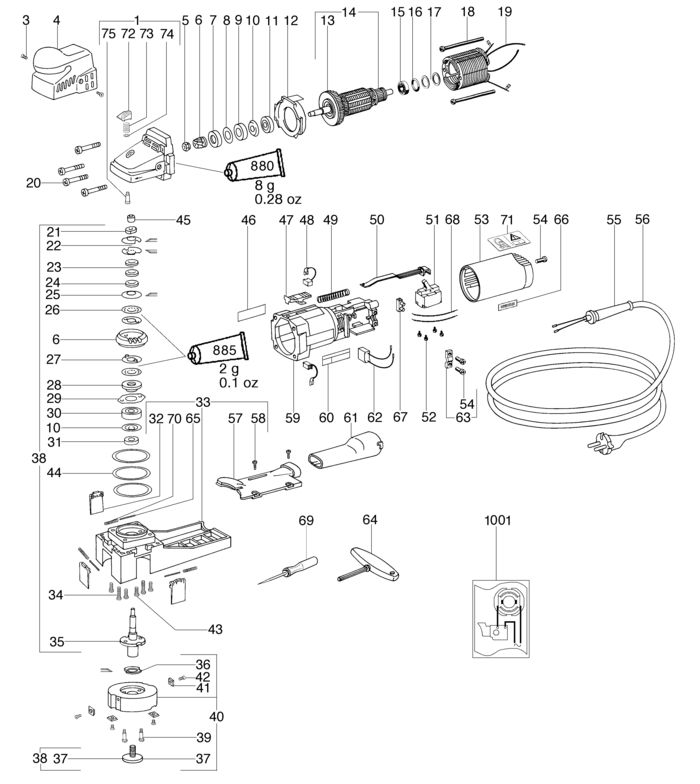

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 316027080 - Indisponibil
3 1 2 Countersunk screw (141121760) 446 RON
4 1 1 HANDLE COVER COMPL. (341112540) 4249 RON
5 1 1 Hexagon nut w.recess (341100940) 781 RON
6 1 1 Bevel gear (316018150) 24046 RON
7 1 1 341003540 - Indisponibil
8 1 1 Washer (141153930) 781 RON
9 1 1 Felt ring (143193830) 446 RON
10 1 2 Washer (339004010) 446 RON
11 1 1 Ball bearing, 10x26x8 (143114040) Indisponibil Indisponibil
12 1 1 Baffle (339150330) 105 RON
13 1 1 Fan cpl. (330001240) 2124 RON
14 1 1 Armature cpl. 220 V (310006370) 30980 RON
15 1 1 Ball bearing, 7x22x7 (143110030) 488 RON
16 1 1 O-ring (143192510) 781 RON
17 1 2 Washer (141151320) 781 RON
18 1 2 Self-tap. fill. h. screw (141118260) 446 RON
19 1 1 Field coil 220 V (311006420) 26730 RON
20 1 4 Tight-fit screw (341701490) 446 RON
21 1 1 Nut (341101380) 105 RON
22 1 2 Cup spring (342070350) 1564 RON
23 1 2 Washer 10,2 X 14,8X 0,1 (141152300) 781 RON
24 1 1 Washer 10,2 X 14,8X 0,2 (141151120) 446 RON
25 1 1 Cup spring (342070320) 1564 RON
26 1 2 Friction washer (339032790) 781 RON
27 1 2 Friction washer (339034150) 781 RON
28 1 1 Intermediate piece (341051480) 105 RON
29 1 1 Bearing cover (339190630) 1340 RON
30 1 1 Ball bearing, 10x26x8 (143113880) 5479 RON
31 1 1 Felt ring (344070230) 781 RON
32 1 3 Protecting cap (343374060) Indisponibil Indisponibil
33 1 1 Table cpl. (316028950) Indisponibil Indisponibil
34 1 2 Fillister head screw (141119870) 446 RON
35 1 1 Spindle (341603500) 41718 RON
36 1 1 Cup spring (342070550) 1340 RON
37 1 1 Adjusting screw (341702800) 2124 RON
38 1 1 Safety clutch (316028940) 78180 RON
39 1 2 Flat headed screw (341702900) 105 RON
40 1 1 KNIFE HOLDER COMPL. (316026770) 83437 RON
41 1 1 631660000 - Indisponibil
42 1 4 Countersunk screw (341702810) 2124 RON
43 1 4 Fillister head screw (141119860) 781 RON
44 1 3 Compensating Washer (339060160) 781 RON
45 1 1 Needle sleeve (143111430) Indisponibil Indisponibil
46 1 1 Metabo label (338123580) 105 RON
47 1 1 316017230 - Indisponibil
48 1 2 343011130 - Indisponibil
49 1 1 Pressure spring (342000820) 446 RON
50 1 1 Switch rod (343355910) 781 RON
51 1 1 Switch (343404230) 8275 RON
52 1 4 Fillister head screw (141116970) 781 RON
53 1 1 Motor cap (343355880) 3689 RON
54 1 3 Self-tap. fill. h. screw (141116800) 446 RON
55 1 1 Cable sleeve (344100640) Indisponibil Indisponibil
56 1 1 Cable with plug (344493180) 955 RON
57 1 1 Extraction cover (343371380) 1340 RON
58 1 2 Fillister head screw (141110590) 446 RON
59 1 1 Motor housing cpl. (316018170) 13756 RON
60 1 1 338034990 - Indisponibil
61 1 1 Exhaust nozzle (343371390) Indisponibil Indisponibil
62 1 1 Interference suppr. cond. (343253220) 2124 RON
63 1 1 Cable clip (316024890) 1340 RON
64 1 1 Universal spanner (344162450) 7157 RON
65 1 3 Pin (341520040) 446 RON
66 1 1 399999990 - Indisponibil
67 1 1 399999990 - Indisponibil
68 1 1 399999990 - Indisponibil
69 1 1 Pick w. handle (344162540) 1340 RON
70 1 3 Pressure spring (342002680) 446 RON
71 1 1 Indication label (338121250) 446 RON
72 1 1 Push button, red (343394190) 669 RON
73 1 1 Pressure spring (342001550) Indisponibil Indisponibil
74 1 1 Sealing washer (339006520) Indisponibil Indisponibil
75 1 1 Bolt (341513790) 1564 RON
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
885 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338502270 - Indisponibil
