Top » Piese de schimb » PIESE METABO » 00861420

SB 710 - 00861420 - US 120V
[00861420]
SB 710 - 00861420 - US 120V
Click pentru a mari
Imagini suplimentare
SB 710 - 00861420 - US 120V
Click pentru a mari

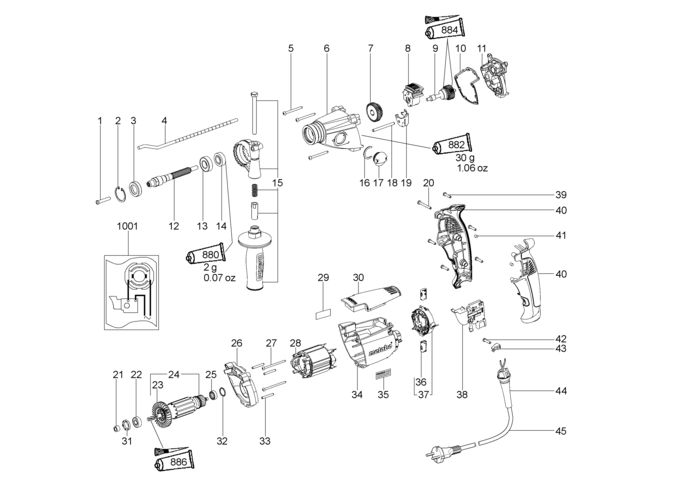

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cheese-head screw (341701940) 781 RON
2 1 1 Retaining ring (141181680) 446 RON
3 1 1 Shaft sealing ring (339210920) 669 RON
4 1 1 Depth stop (341511630) Indisponibil Indisponibil
5 1 3 Self-tap. fill. h. screw (141123610) 446 RON
6 1 1 Gear housing compl. (316042790) 24046 RON
7 1 1 Sliding block (340004010) 3689 RON
8 1 1 Switch housing compl. (316041940) 3689 RON
9 1 1 Pinion shaft w. clutch (316045940) 19236 RON
10 1 1 Seal (344097930) 669 RON
11 1 1 Gear flange compl. (316042800) 13756 RON
12 1 1 Drill spindle (341604020) 955 RON
13 1 1 BALL BEARING, 15x32x9 (143110220) Indisponibil Indisponibil
14 1 1 Slotted disc (341055650) 1564 RON
15 1 1 Side support handle (314001280) 3689 RON
16 1 1 Ring (141155810) 446 RON
17 1 1 Control knob compl. (316041960) 105 RON
18 1 1 Guide bolt (341540010) 190 RON
19 1 1 Shift fork (339133070) 105 RON
20 1 1 Self-tap. fill. h. screw (141116990) 781 RON
21 1 1 Sealing ring (343376040) 781 RON
22 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
23 1 1 Fan (330001820) 105 RON
24 1 1 Armature compl.,120 V (310009410) 33553 RON
25 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
26 1 1 Intermediate flange (343394750) 781 RON
27 1 2 Self-tap. fill. h. screw (141118260) 446 RON
28 1 1 Field coil 120V (311009830) 15993 RON
29 1 1 Rating plate (338054420) 446 RON
30 1 1 Cover w.o. electronic (343394070) 1340 RON
31 1 1 Rubber buffer (344095920) 446 RON
32 1 1 O-ring (143192430) Indisponibil Indisponibil
33 1 3 Cylindrical pin (341520230) 446 RON
34 1 1 Motor housing (315013250) Indisponibil Indisponibil
35 1 1 Warning Label 50 x 16 (338121950) 446 RON
36 1 1 Carbon brush set,120 V (316046960) 5479 RON
37 1 1 Brush holder module,120V (316047990) 8275 RON
38 1 1 On-off switch (343409210) 5479 RON
39 1 5 Self-tap. fill. h. screw (141116020) 781 RON
40 1 1 Pistol grip 2-part, gummed (343398540) 488 RON
41 1 2 Rubber plug (344097580) 446 RON
42 1 1 Self-tap. fill. h. screw (141117060) 781 RON
43 1 1 Cable clip (343362490) 781 RON
44 1 1 Cable sleeve (343394300) 781 RON
45 1 1 Cable with Ul-CSA-plug (344494030) 955 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
882 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
884 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
886 1 1 Grease 50Gr 1,8oz (344131030) 488 RON
1001 1 1 338505160 - Indisponibil
