Top » Piese de schimb » PIESE METABO » 0010007100 10

LS 7/10 - 0010007100 10 - EU 230V
[0010007100 10]
LS 7/10 - 0010007100 10 - EU 230V
Click pentru a mari
Imagini suplimentare
LS 7/10 - 0010007100 10 - EU 230V
Click pentru a mari
LS 7/10 - 0010007100 10 - EU 230V
Click pentru a mari
LS 7/10 - 0010007100 10 - EU 230V
Click pentru a mari

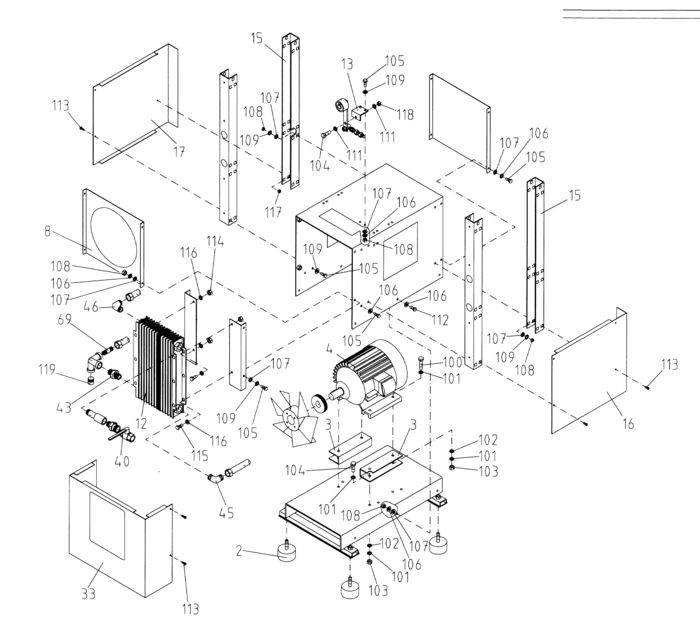

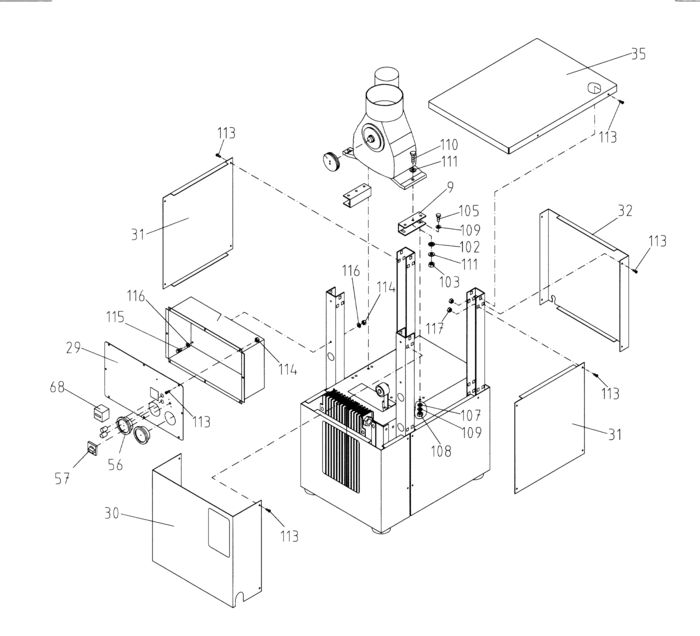

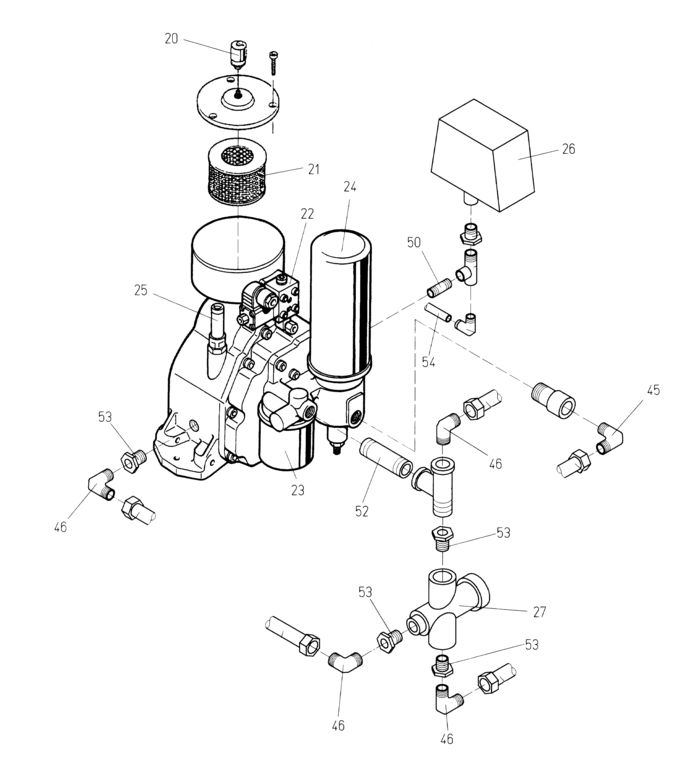

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 RUBBER-METAL ANTI-VIBR. MOUNT 75X40 /M12 (87058037839) 955 RON
3 1 1 1312416901 - Indisponibil
4 1 1 ELECTRIC MOTOR 400/3/50 3000UPM B3 (88013011622) 492019 RON
8 1 1 1312417061 - Indisponibil
9 1 1 COMPRESSOR PUMP BASE BL 2,99X120X118 (81312419633) 7157 RON
12 1 1 1319194840 - Indisponibil
15 1 1 1312416847 - Indisponibil
17 1 1 1312416880 - Indisponibil
20 1 1 VACUUM GAUGE (81319199825) 39481 RON
21 1 1 AIR FILTER ET (87825199840) 26730 RON
22 1 1 SOLENOID VALVE ET (88052199884) 14839 RON
23 1 1 OIL FILTER ET (81319199868) 54357 RON
24 1 1 1319199990 - Indisponibil
25 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
26 1 1 AUTOM. PRESSURE CONTROL SWITCH 7-11 BAR (88101008364) 34448 RON
27 1 1 OIL TEMPERATURE CONTROL DEVICE R 3/4" (88102189770) 14839 RON
29 1 1 1312416596 - Indisponibil
30 1 1 1312416839 - Indisponibil
31 1 1 1312416812 - Indisponibil
32 1 1 1312416820 - Indisponibil
33 1 1 1312419609 - Indisponibil
35 1 1 1312416782 - Indisponibil
40 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
43 1 1 7806009207 - Indisponibil
45 1 1 ELBOW TAP CONNECTOR 1/2"X RD 18 (87872027305) 13756 RON
46 1 1 7872026490 - Indisponibil
50 1 1 7812040035 - Indisponibil
52 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
53 1 1 7809011750 - Indisponibil
54 1 1 PLASTIC HOSE BLACK RD 6X1X1000 SCHWARZ (87851190842) 2124 RON
56 1 1 PRESSURE GAUGE RD63 R1/4"AG 0-16BAR ROTE (87823195570) 21361 RON
57 1 1 Switch On/Of TO-I-8200 (88112014161) 2848 RON
60 1 1 CONTACTOR 230 V 50 HZ DSL 14-10 (88104193030) 33553 RON
61 1 1 CONTACTOR 230 V 50 HZ DSL 10-10 (88104194827) 30980 RON
62 1 1 8109193012 - Indisponibil
63 1 1 AUXILIARY CONTACTOR 230 V 50 HZ DSL 3-31 (88104189866) 24046 RON
64 1 1 TIME DELAY RELAY 3-300 SEC ANSPRECHVERZ (88103189854) 64311 RON
65 1 1 MOTOR PROTECTION RELAY 7-12 A K7D (88103194793) 39481 RON
68 1 1 WORKING HOUR METER 230 V 50 HZ SCHWARZ (81319197792) 3698 RON
69 1 1 UNION R 1/2"AG X RD 15 GERADE (87872027356) 488 RON
100 1 1 HEXAGON HEAD SCREW M 10X35 VERZ. (86103001240) 446 RON
101 1 1 MEDIUM WASHER (86300016349) 446 RON
102 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
103 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
104 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
105 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
106 1 1 Washer (86300016322) Indisponibil Indisponibil
107 1 1 Serrated lock washer (86304001745) 446 RON
108 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
109 1 1 Washer (86305002486) 446 RON
110 1 1 HEXAGON HEAD SCREW M 10X30 VERZ. (86103001232) 446 RON
111 1 1 WASHER (86305002494) 446 RON
112 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
113 1 1 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
114 1 1 Hex nut (86200002219) 446 RON
115 1 1 Hex head screw (86103015675) 446 RON
116 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
117 1 1 CAGE NUT (86264166657) 446 RON
118 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
119 1 1 6109079322 - Indisponibil
