Top » Piese de schimb » PIESE METABO » 06303000

GE 700 - 06303000 - EU 230V
[06303000]
GE 700 - 06303000 - EU 230V
Click pentru a mari
Imagini suplimentare
GE 700 - 06303000 - EU 230V
Click pentru a mari

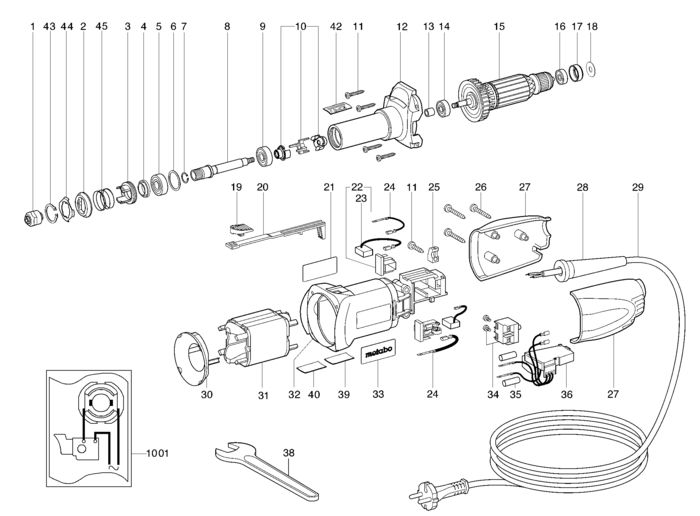

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 631945000 - Indisponibil
2 1 1 Actuating ring (341056940) 3018 RON
3 1 1 Guard ring (341056930) 7157 RON
4 1 1 Labyrinth ring (339038180) 1564 RON
5 1 1 Ball bearing, 12x28x8 (143114500) 3689 RON
6 1 1 Washer (141151480) 781 RON
7 1 1 RETAINING RING (141180060) 446 RON
8 1 1 Spindle (341160960) Indisponibil Indisponibil
9 1 1 Ball bearing, 10x26x8 (143112150) 5926 RON
10 1 1 Clutch compl. (316050890) Indisponibil Indisponibil
11 1 5 Self-tap. fill. h. screw (141116020) 781 RON
12 1 1 Spindle head (315415710) 33553 RON
13 1 1 Spacer bush (341005220) 781 RON
14 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
15 1 1 Armature cpl. 230 V (310007680) 2848 RON
16 1 1 Ball bearing, 6X 19X 6 (143114900) Indisponibil Indisponibil
17 1 1 Rubber bushing (344095260) 781 RON
18 1 1 Washer (141153340) 446 RON
19 1 1 Switch slide (343394180) 669 RON
20 1 1 Switch rod (343373640) 781 RON
21 1 1 Rating plate (338041260) 446 RON
22 1 2 Brush holder cpl. (316035500) 3018 RON
23 1 1 Carbon brush (316035510) 5479 RON
24 1 2 Cable strand (344493960) 781 RON
25 1 1 Cable clip (343362490) 781 RON
26 1 3 Self-tap. fill. h. screw (141116990) 781 RON
27 1 1 2 part motor cap (343373710) 2459 RON
28 1 1 Cable sleeve (344100970) 781 RON
29 1 1 Cable with plug (344493180) 955 RON
30 1 1 Baffle (339150880) 781 RON
31 1 1 Field coil 230 V (311009750) 19236 RON
32 1 1 Motor housing (315012620) 5926 RON
33 1 1 M-Label,08 52x22 (338122160) 446 RON
34 1 1 Switch (343406730) 7157 RON
35 1 2 Insulading hose (339040760) 446 RON
36 1 1 VSC electronic,230V 50 Hz (343077070) 18341 RON
38 1 1 Open-end spanner (344161300) 2459 RON
39 1 1 399999990 - Indisponibil
40 1 1 Label to read instructions (338117240) 446 RON
42 1 1 Spindle stop lable (338117670) 446 RON
43 1 1 Retaining ring (141155860) 446 RON
44 1 1 Protective shield (339060340) 105 RON
45 1 1 Pressure spring (342003010) 781 RON
1001 1 1 338501990 - Indisponibil
